Toyota Sai

2009-11 → 2018-02 · chassis AZK10 · catalogue 293110 · Japan

Supported model Data version 2018-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

5 part groups · 2 illustrations

Illustrations

Figure 864121C

864121C 2009-11 → 2013-08

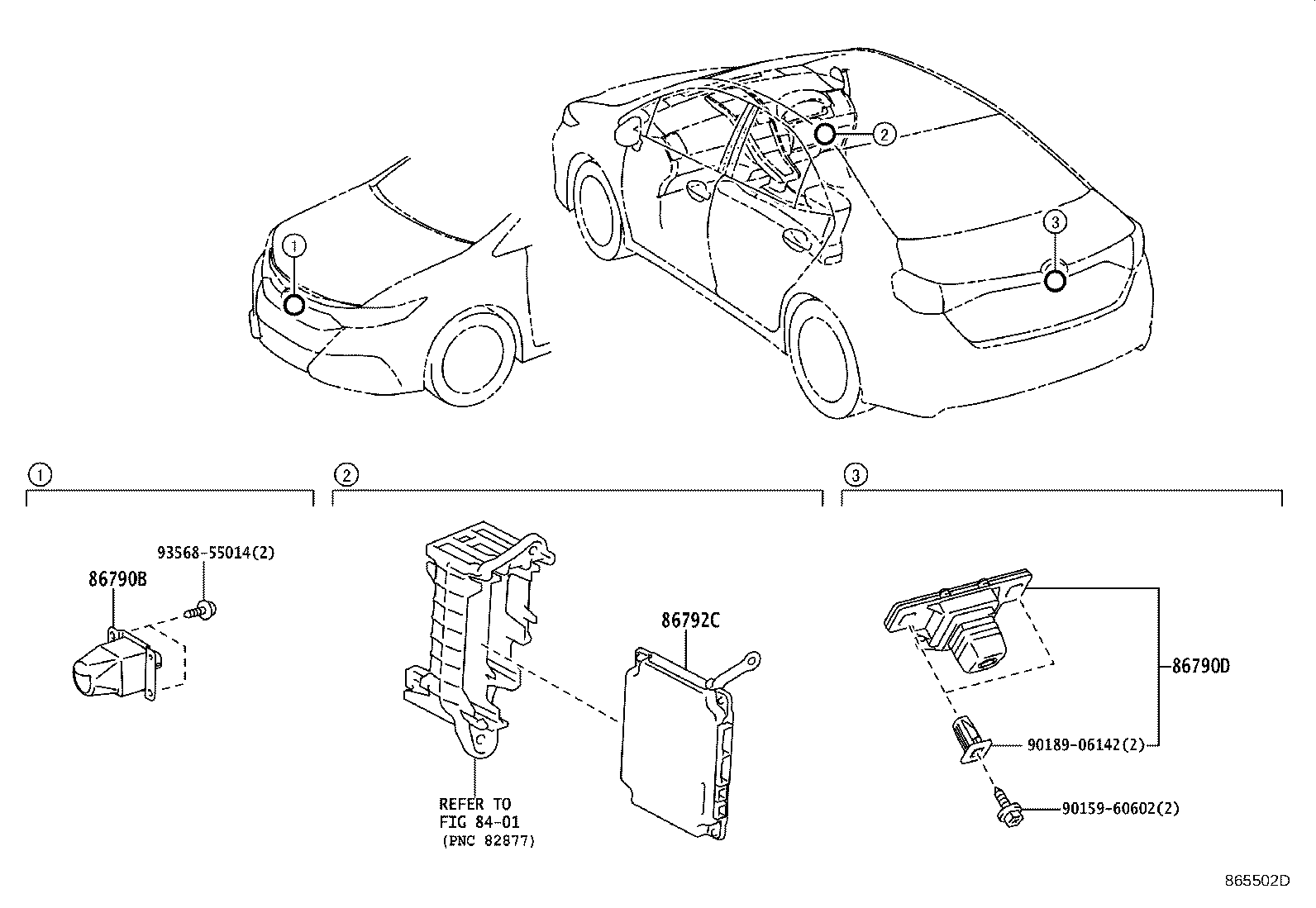

Figure 865502D

865502D 2013-08 → —

Part groups

PNC	Description
82666R	Holder, Connector
86790B	Camera Assy, Television, FR
86790D	Camera Assy, Television, RR
86792C	Computer, Parking Assist
86842A	Wire, Navigation, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
