Toyota Mark 2

1980-09 → 1984-07 · chassis GX6#,LX6#,MX6#,RX6#,SX60,TX6# · catalogue 311140 · Japan

Discontinued model Data version 1985-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

61 part groups · 8 illustrations

Illustrations

MBC011C 1980-09 → —

MBC012C 1980-09 → 1982-08

MBC012C 1982-08 → —

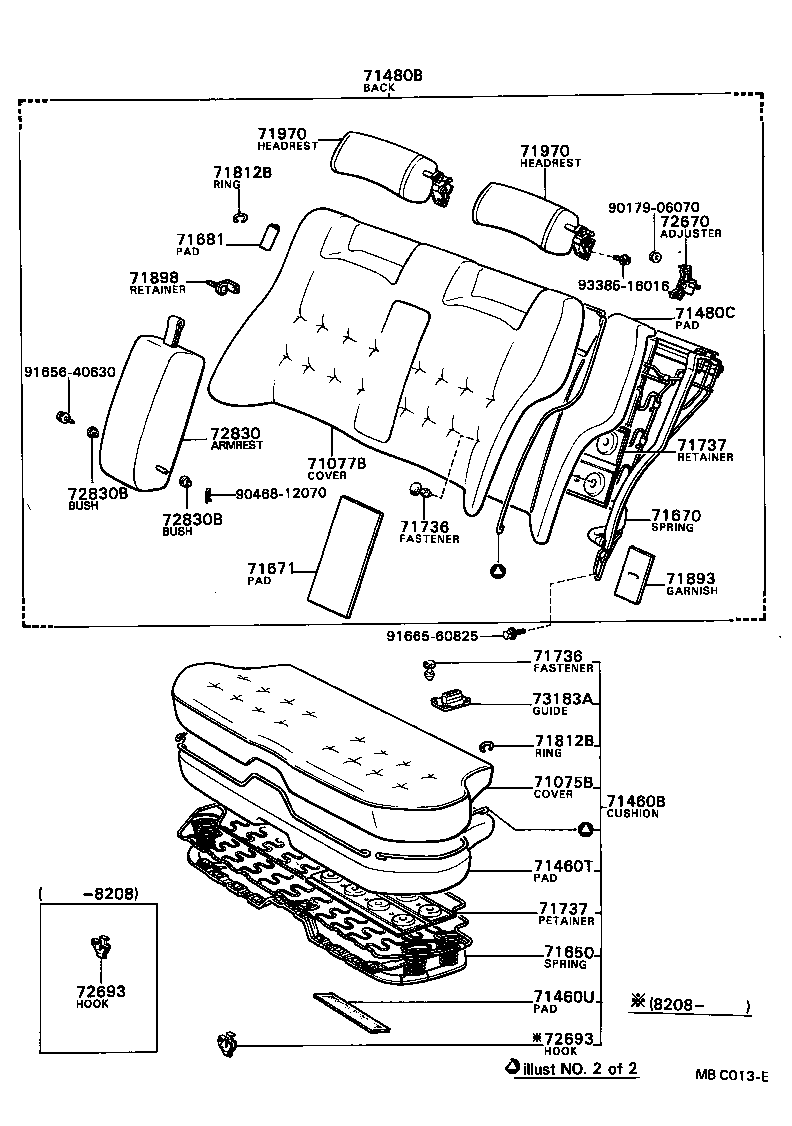

MBC013E 1980-09 → —

MBC014A 1980-09 → 1982-08

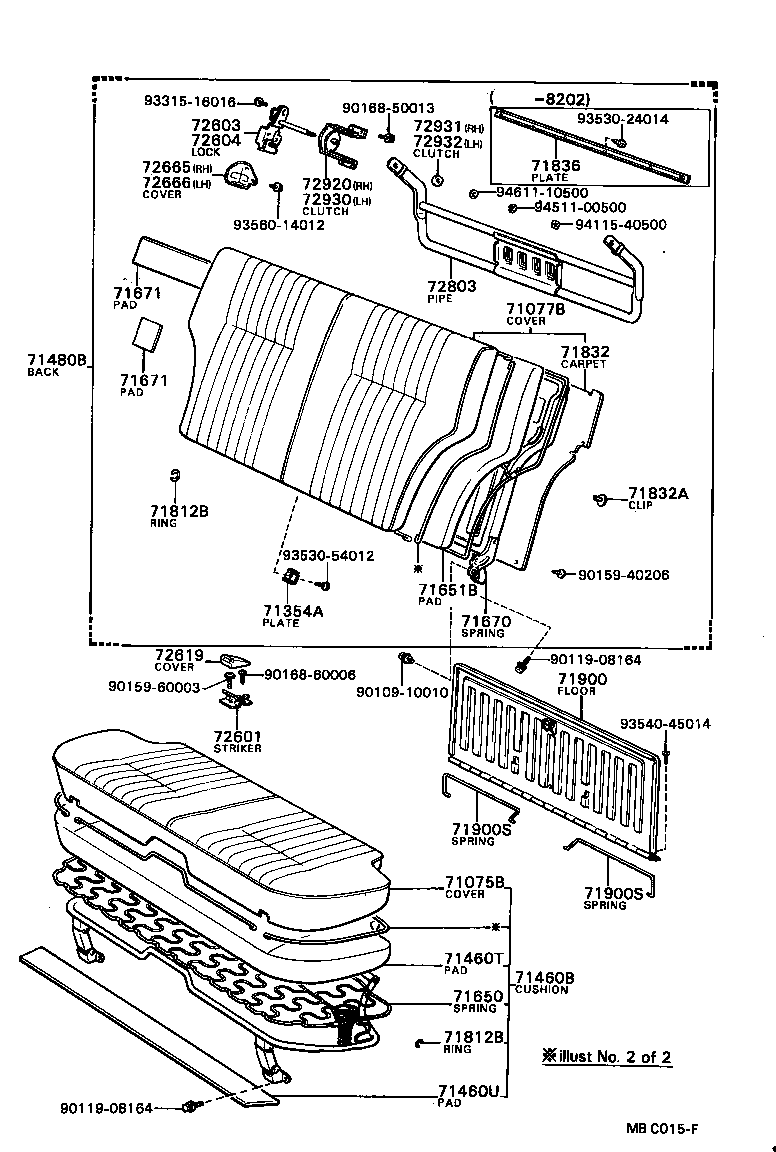

MBC015F 1980-11 → —

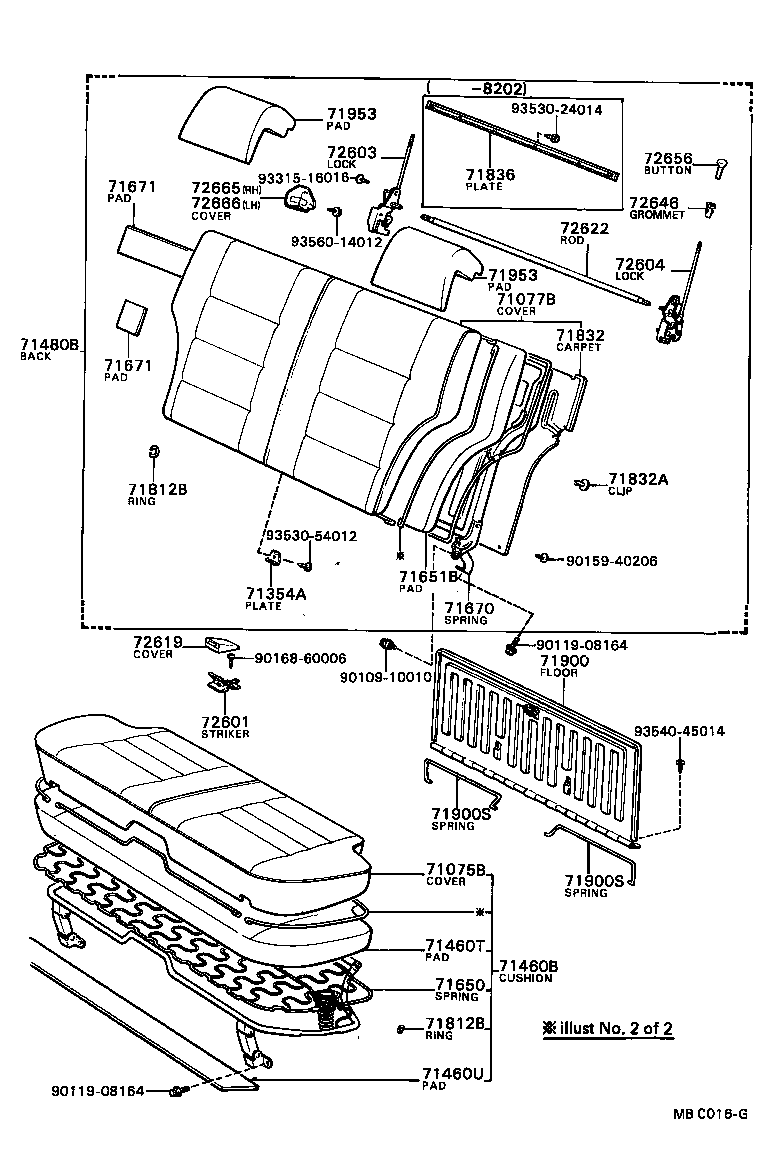

MBC016G 1980-11 → —

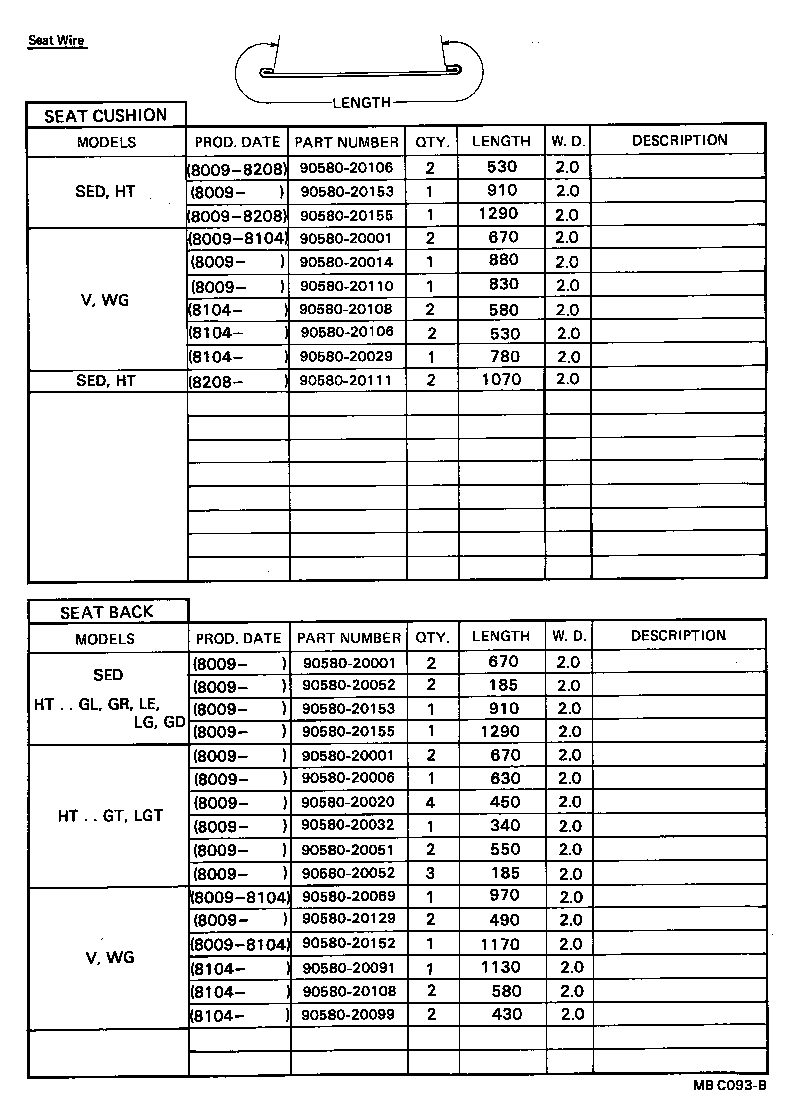

MBC093B 1980-09 → —

Part groups

PNC	Description
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71087	Board Sub-assy, Rear Seatback
71305A	Hinge Sub-assy, Rear Seatback, Center
71336	Bush OR Spacer, Rear Seatback Hinge
71354A	Plate, Rear Seatback Set
71460B	Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460T	Pad Sub-assy, Rear Seat Cushion, NO.1
71460U	Pad Sub-assy, Rear Seat Cushion, NO.2
71480B	Back Assy, Rear Seat (FOR BENCH TYPE)
71480C	Pad Sub-assy, Rear Seatback, NO.1 (FOR BENCH TYPE)
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71480T	Pad, Rear Seatback, RH (FOR SEPARATE SEAT)
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71490T	Pad, Rear Seatback, LH (FOR SEPARATE SEAT)
71590	Back Assy, Rear Seatback, LH(FOR SEPARATE SEAT)
71590C	Cover Sub-assy, Rear Seatback, LH(FOR SEPARATE SEAT)
71590F	Frame Sub-assy, Rear Seatback, LH(FOR SEPARATE TYPE)
71590P	Pad, Rear Seatback, LH(FOR SEPARATE SEAT)
71650	Spring Assy, Rear Seat Cushion
71651B	Pad, Rear Seatback(FOR BENCH TYPE)
71670	Spring Assy, Rear Seatback(FOR BENCH SEAT)
71670S	Spring Assy, Rear Seatback, RH(FOR SEPARATE SEAT)
71671	Pad, Rear Seatback Silencer, A
71672	Pad, Rear Seatback Silencer, B
71680S	Spring Assy, Rear Seatback, LH(FOR SEPARATE SEAT)
71681	Pad, Rear Seatback Corner, A
71682	Pad, Rear Seatback Corner, B
71736	Fastener Sub-assy, Seat Cover, A (FOR REAR SEAT)
71737	Retainer, Seat Cover Fastener, B (FOR REAR SEAT)
71812B	Clip(FOR REAR SEAT CUSHION COVER)
71832	Carpet OR Mat, Rear Seatback
71832A	Clip, Rear Seatback Carpet OR Mat
71836	Plate, Rear Seatback Carpet OR Mat Support, Upper
71893	Garnish, Rear Seatback Side, Lower RH
71898	Retainer, Rear Seatback Cover Side
71900	Floor Assy, Rear Seat
71900S	Spring (FOR REAR SEAT FLOOR)
71953	Pad, Rear Seat Headrest
71970	Headrest Assy, Rear Seat
72601	Striker Sub-assy, Rear Seat Lock
72603	Lock Sub-assy, Rear Seatback, RH
72604	Lock Sub-assy, Rear Seatback, LH
72619	Cover, Rear Seatback Lock Striker
72622	Rod, Rear Seatback Stopper Connecting
72646	Grommet, Rear Seatback Stop Button
72656	Button, Rear Seatback Stop Release
72665	Cover, Rear Seatback Lock, RH
72666	Cover, Rear Seatback Lock, LH
72670	Adjuster Assy, Rear Seatback, Outside
72693	Hook, Rear Seat Cushion Lock
72803	Pipe Sub-assy, Protector
72830	Armrest Assy, Rear Seat, Center
72830B	Bush(FOR REAR SEAT CENTER ARMREST)
72920	Clutch Assy, Rear Seatback Protector, RH
72930	Clutch Assy, Rear Seatback Protector, LH
72931	Clutch, Rear Seatback Lock, RH
72932	Clutch, Rear Seatback Lock, LH
73183A	Guide, Rear Seat Lap Belt, Inner

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
