Factory parts data · Europe

Toyota Mark 2

1980-09 → 1984-07 · chassis GX6#,LX6#,MX6#,RX6#,SX60,TX6# · catalogue 311140 · Japan

Discontinued model Data version 1985-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

4 part groups · 3 illustrations

Illustrations

Figure MEA141E

MEA141E 1980-09 → —

Figure MEC938

MEC938 1982-08 → —

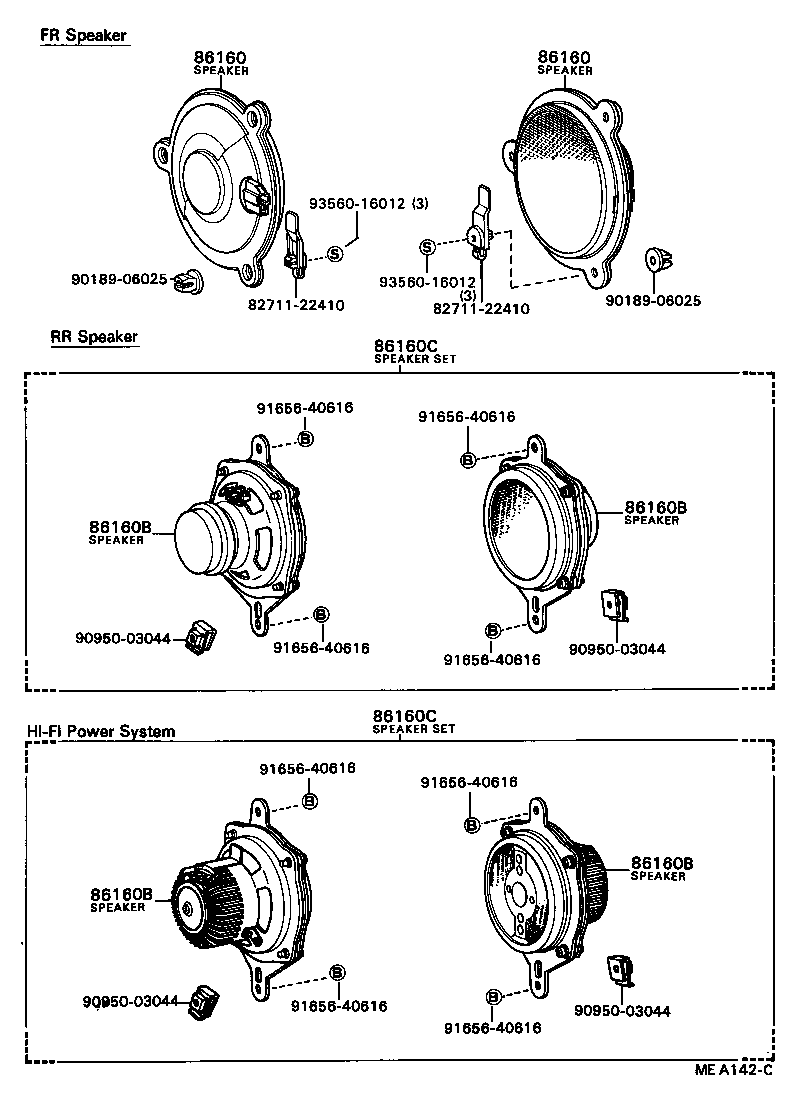

Figure MEA142C

MEA142C 1980-11 → —

Part groups

PNC	Description
86160	Speaker Assy, Front NO.1
86160A	Speaker Set, Front
86160B	Speaker Assy, Rear
86160C	Speaker Set, Rear

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
