Toyota Mark 2

1984-08 → 1988-08 · chassis GX7#,LX7#,MX71,SX70,YX7# · catalogue 311150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

13 part groups · 2 illustrations

Illustrations

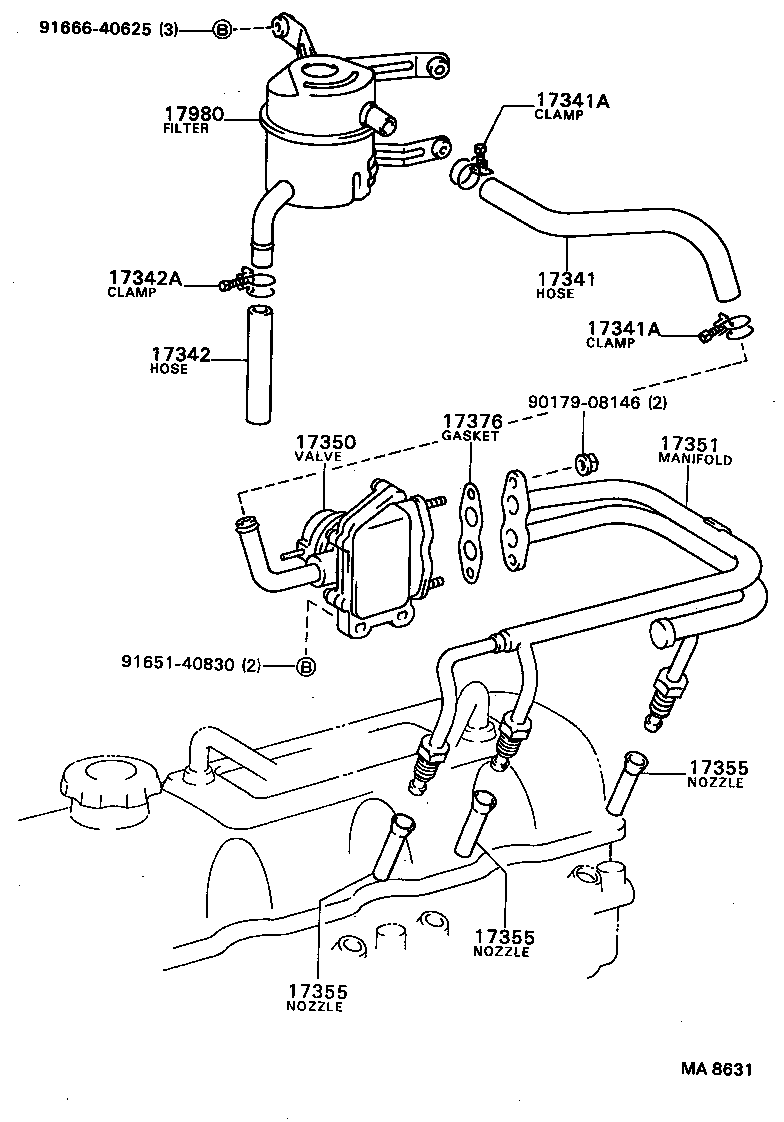

Figure MA7489 MA7489 1984-08 → — Figure MA8631 MA8631 1985-10 → —

Part groups

PNCDescription
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17344 Hose, NO.4(FOR AIR INJECTION SYSTEM)
17350 Valve Assy, Reed
17351 Manifold, Air Injection
17355 Nozzle, Air Injection
17376 Gasket, Air Tube, NO.1
17980 Filter Assy, Air Suction
25720 Valve Assy, Electric Air Control
25720A Bracket, Electric Air Control Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
