Toyota Mark 2

1984-08 → 1988-08 · chassis GX7#,LX7#,MX71,SX70,YX7# · catalogue 311150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

13 part groups · 2 illustrations

Illustrations

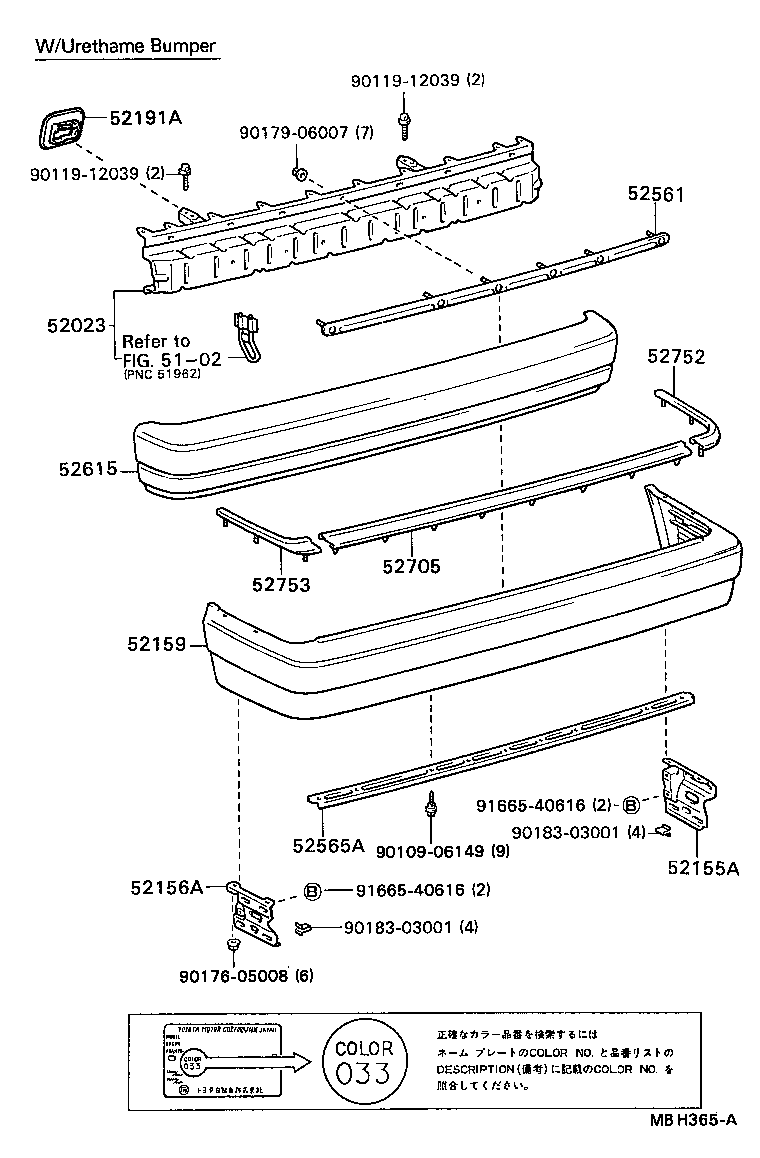

Figure MBH656C MBH656C 1984-08 → — Figure MBH365A MBH365A 1984-08 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52191A Seal, Rear Bumper Arm
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52615 Absorber, Rear Bumper Energy
52705 Moulding Sub-assy, Rear Bumper
52752 Moulding, Rear Bumper Side, RH
52753 Moulding, Rear Bumper Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
