Toyota Mark 2
1984-08 → 1988-08 · chassis GX7#,LX7#,MX71,SX70,YX7# · catalogue 311150 · Japan
Discontinued model
Data version 1989-02
Radiator Grille

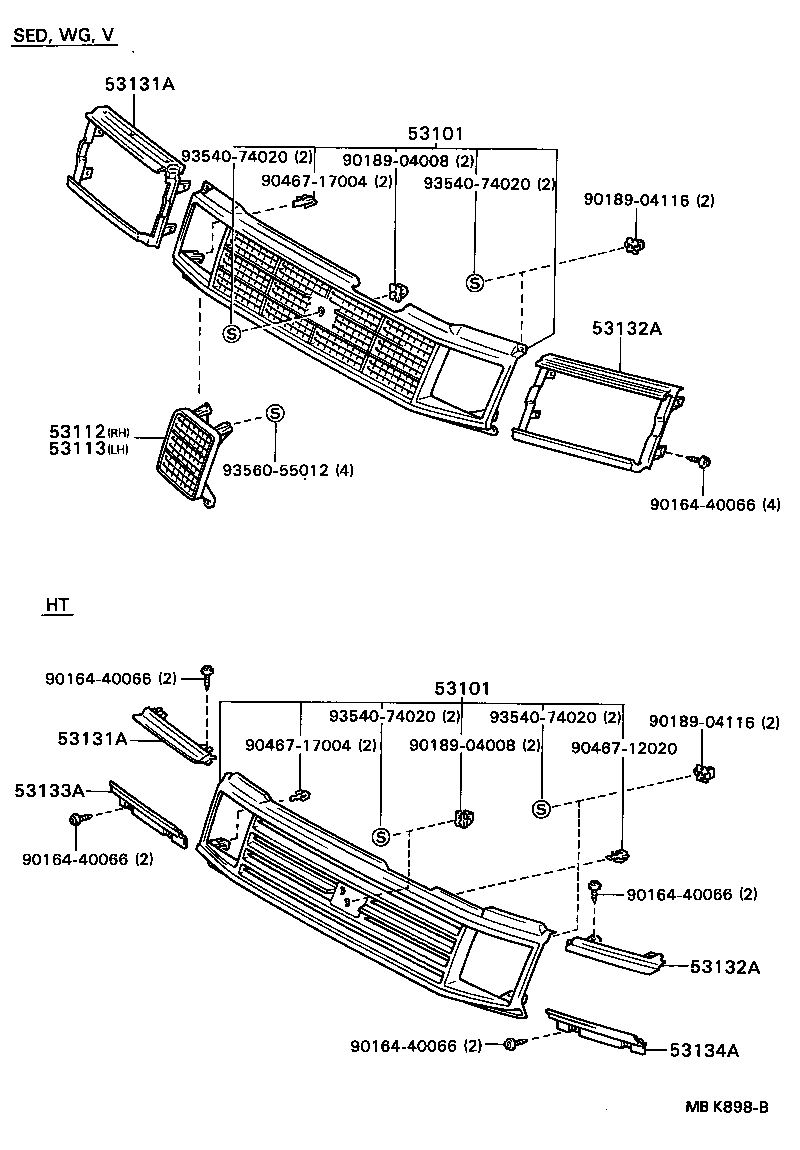

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53101 | Grille Sub-assy, Radiator |
| 53112 | Grille, Radiator, RH OR Upper |
| 53113 | Grille, Radiator, LH OR Lower |
| 53131A | Door, Headlamp, RH |
| 53132A | Door, Headlamp, LH |
| 53133A | Door, Headlamp, Lower RH |
| 53134A | Door, Headlamp, Lower LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
