Toyota Mark 2
1984-08 → 1988-08 · chassis GX7#,LX7#,MX71,SX70,YX7# · catalogue 311150 · Japan
Discontinued model
Data version 1989-02

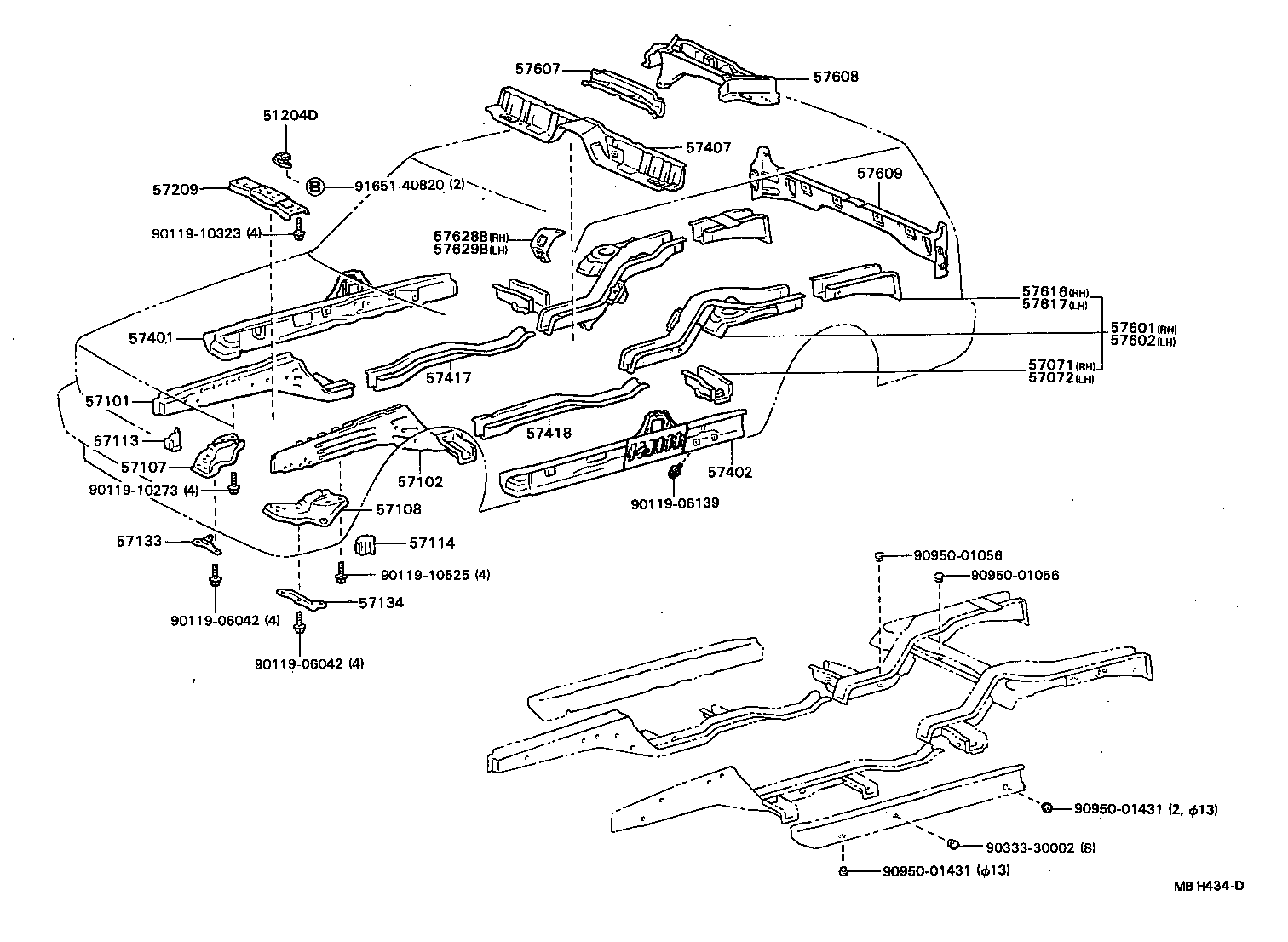

Floor Side Member
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51204D | Damper Sub-assy, Engine Rear Support Member |
| 57071 | Box Sub-assy, Torque, Rear RH |
| 57072 | Box Sub-assy, Torque, Rear LH |
| 57073 | Bracket Sub-assy, Lateral Rod |
| 57101 | Member Sub-assy, Front Side, RH |
| 57102 | Member Sub-assy, Front Side, LH |
| 57107 | Bracket Sub-assy, Strut Bar, RH |
| 57108 | Bracket Sub-assy, Strut Bar, LH |
| 57113 | Extension, Front Side Member, RH |
| 57114 | Extension, Front Side Member, LH |
| 57133 | Protector, Strut Bar Bracket, RH |
| 57134 | Protector, Strut Bar Bracket, LH |
| 57209 | Member Sub-assy, Engine Rear Support |
| 57401 | Member Sub-assy, Main Floor Side, RH |
| 57402 | Member Sub-assy, Main Floor Side, LH |
| 57405A | Member Sub-assy, Center Floor Cross, NO.2 |
| 57407 | Crossmember Sub-assy, Center Floor, NO.1 |
| 57417 | Reinforcement, Front Floor Under, RH |
| 57418 | Reinforcement, Front Floor Under, LH |
| 57523 | Brace, Center Floor Crossmember |
| 57601 | Member Sub-assy, Rear Floor Side, RH |
| 57602 | Member Sub-assy, Rear Floor Side, LH |
| 57607 | Crossmember Sub-assy, Rear Floor, NO.1 |
| 57608 | Crossmember Sub-assy, Rear Floor, NO.2 |
| 57609 | Crossmember Sub-assy, Rear Floor, NO.3 |
| 57616 | Member, Rear Floor Side, Rear RH |
| 57617 | Member, Rear Floor Side, Rear LH |
| 57628B | Plate, Rear Floor Side Member, RH |
| 57629B | Plate, Rear Floor Side Member, LH |
| 57777A | Protector, Lower Control Link |
| 58355A | Reinforcement, Floor Side Plate, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
