Toyota Mark 2

1984-08 → 1988-08 · chassis GX7#,LX7#,MX71,SX70,YX7# · catalogue 311150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

18 part groups · 2 illustrations

Illustrations

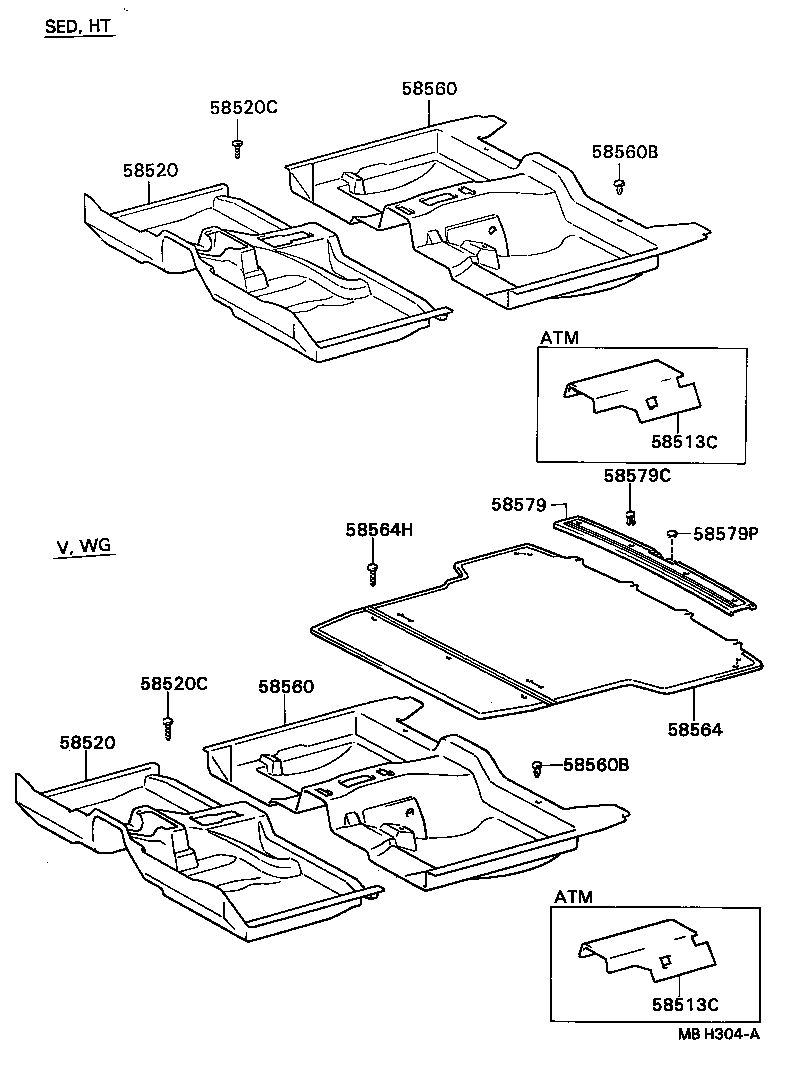

Figure MBH303A MBH303A 1984-08 → — Figure MBH304A MBH304A 1984-08 → —

Part groups

PNCDescription
58511 Mat, Floor, Front
58513C Mat, Floor, Front Center
58520 Carpet Assy, Front Floor
58520C Clip(FOR FRONT FLOOR CARPET)
58551 Mat, Floor, Rear
58551C Clip(FOR FLOOR MAT, REAR)
58560 Carpet Assy, Floor, Rear
58560B Clip(FOR FLOOR CARPET, REAR)
58563 Mat, Rear Floor
58563H Clip(FOR REAR FLOOR MAT)
58564 Carpet, Rear Floor
58564H Clip(FOR REAR FLOOR CARPET)
58572 Set Plate, Rear Floor Mat, Rear
58572C Clip, Rear Floor Mat Set
58572P Plug, Hole(FOR SET PLATE)
58579 Set Plate, Rear Floor Carpet, NO.1
58579C Clip, Rear Floor Carpet Set
58579P Plug, Hole(FOR SET PLATE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
