Toyota Mark 2

1984-08 → 1988-08 · chassis GX7#,LX7#,MX71,SX70,YX7# · catalogue 311150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Moulding

14 part groups · 2 illustrations

Illustrations

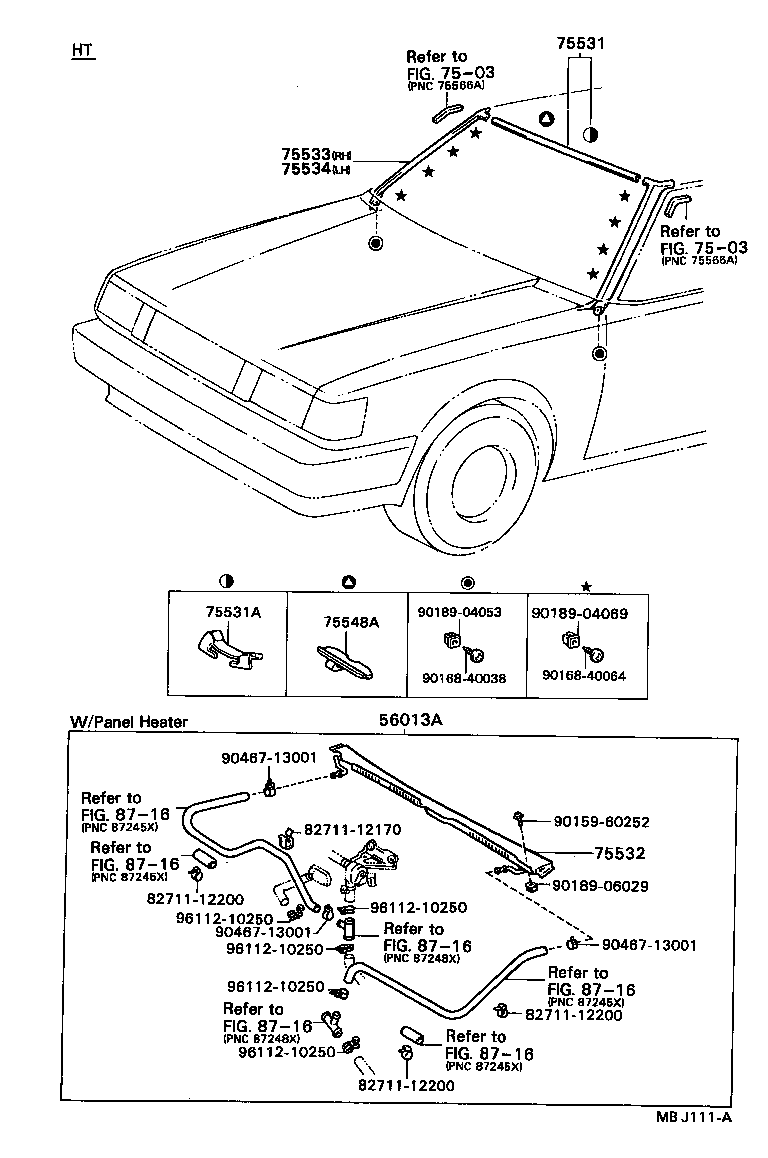

Figure MBG658C MBG658C 1984-08 → — Figure MBJ111A MBJ111A 1984-08 → —

Part groups

PNCDescription
56013A Moulding Sub-assy, Front Window, Inner Center
75531 Moulding, Windshield, Outer Upper
75531A Clip, Windshield Moulding Set, NO.1
75532 Moulding, Windshield, Lower
75533 Moulding, Windshield, Outside RH
75533A Clip, Windshield Side Moulding, RH
75533B Cover, Windshield Moulding Joint, Upper RH
75534 Moulding, Windshield, Outside LH
75534B Cover, Windshield Moulding Joint, Upper LH
75541 Moulding, Hood, Front
75541A Moulding, Hood, Front RH
75541B Moulding, Hood, Front LH
75548A Fastener, Windshield Outside Moulding, NO.1
75549A Moulding, Windshield Outside Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
