Toyota Mark 2

1984-08 → 1988-08 · chassis GX7#,LX7#,MX71,SX70,YX7# · catalogue 311150 · Japan

Discontinued model Data version 1989-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

10 part groups · 4 illustrations

Illustrations

Figure MEE595

MEE595 1984-08 → 1986-08

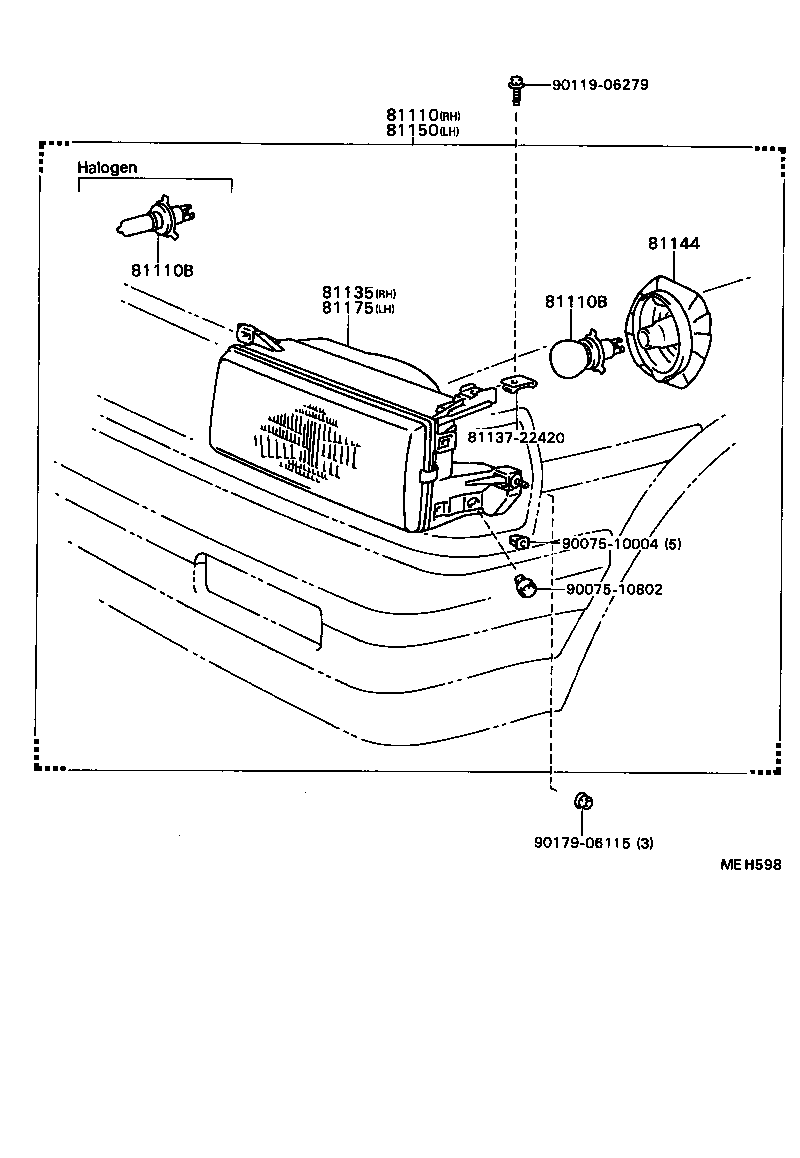

Figure MEH598

MEH598 1986-08 → —

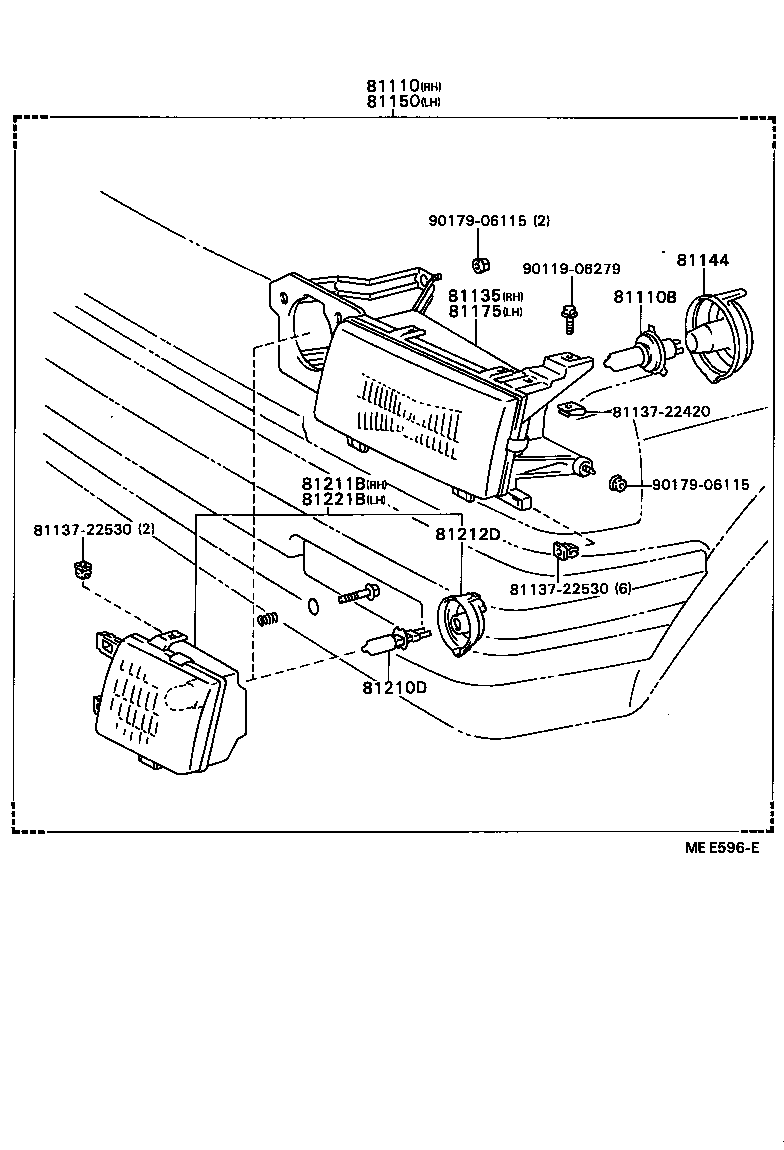

Figure MEE596E

MEE596E 1984-08 → 1986-08

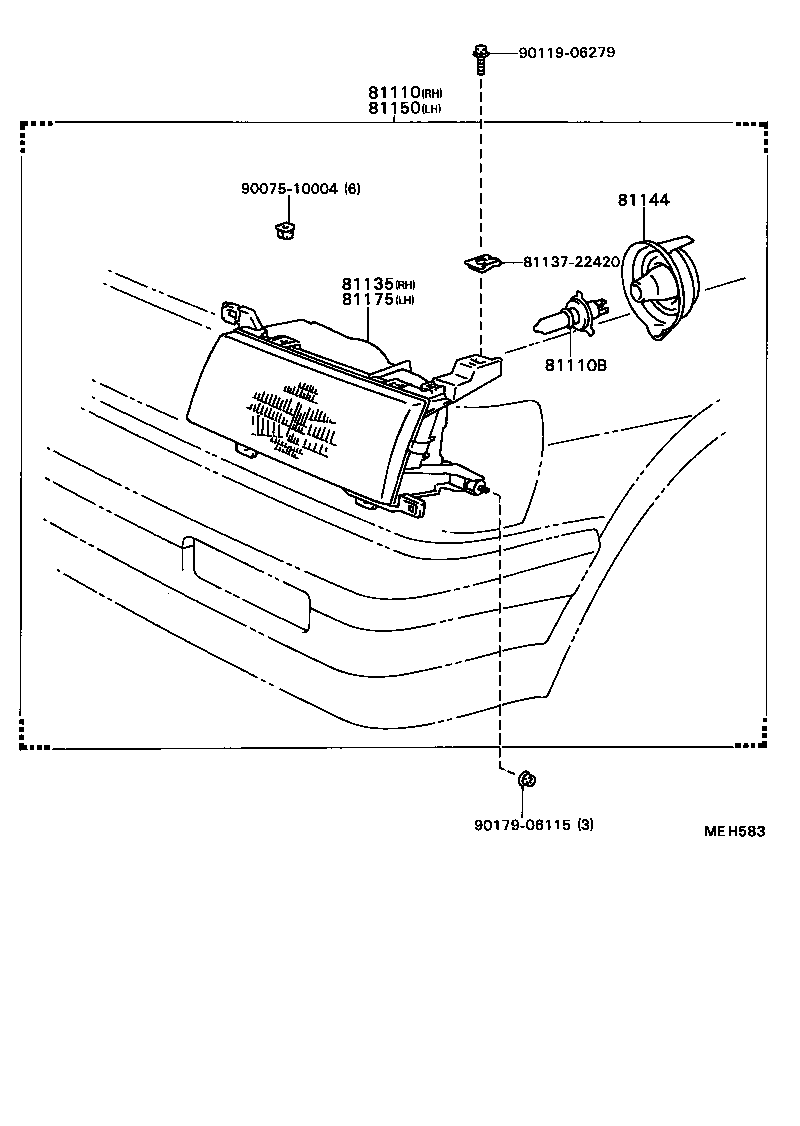

Figure MEH583

MEH583 1986-08 → —

Part groups

PNC	Description
81110	Headlamp Assy, RH
81110B	Bulb(FOR HEADLAMP, NO.1)
81135	Unit Assy, Headlamp, RH
81144	Cover, Headlamp, NO.1
81150	Headlamp Assy, LH
81175	Unit Assy, Headlamp, LH
81210D	Bulb, Fog Lamp
81211B	Fog Lamp, RH
81212D	Cover, Fog Lamp
81221B	Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
