Toyota Mark 2

1984-08 → 1988-08 · chassis GX7#,LX7#,MX71,SX70,YX7# · catalogue 311150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Clearance Lamp

7 part groups · 4 illustrations

Illustrations

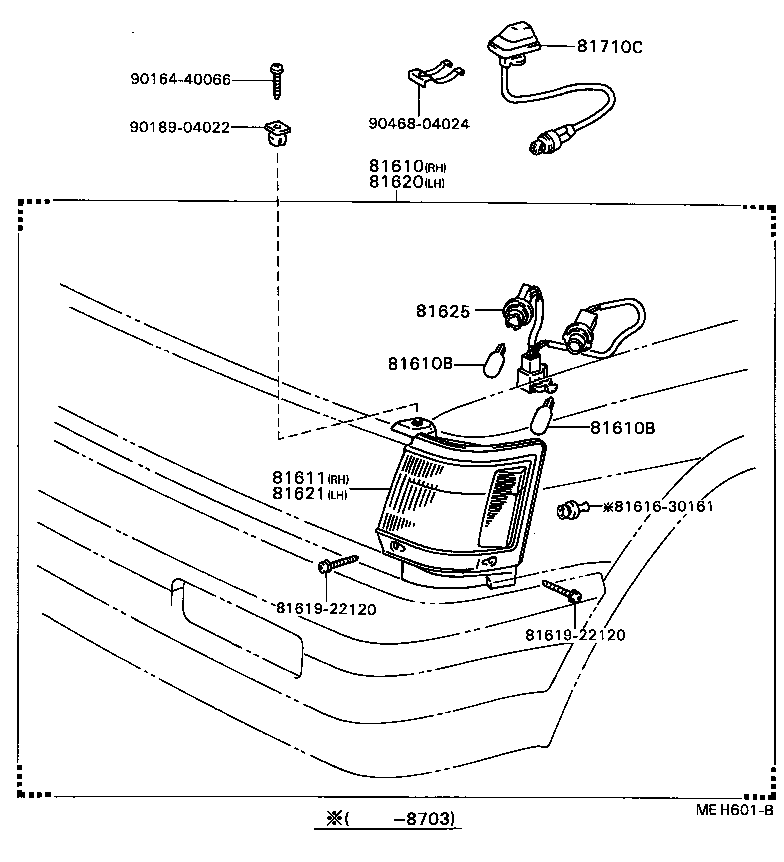

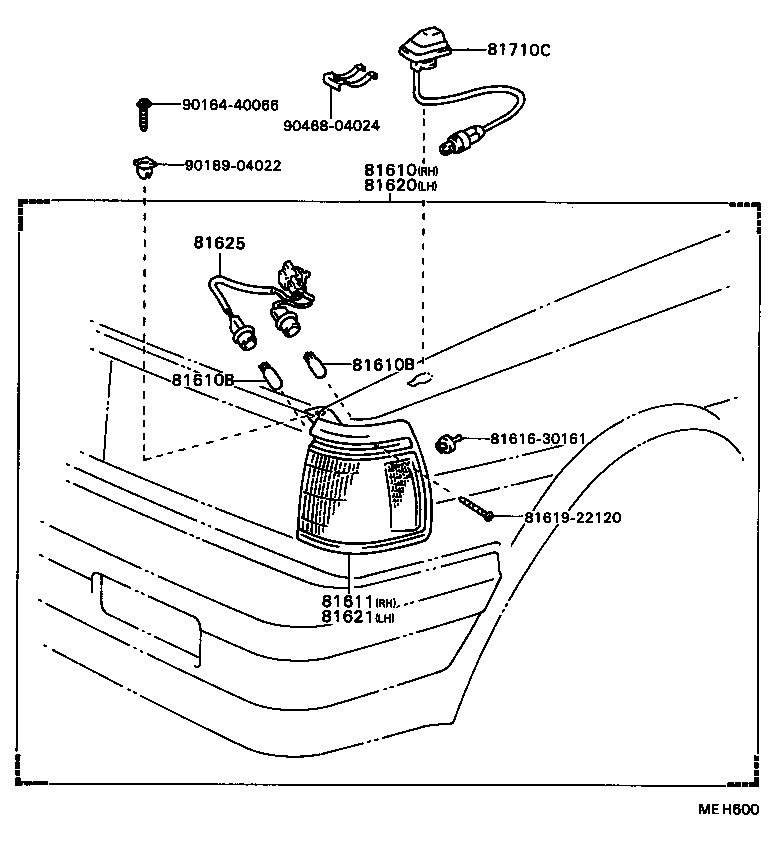

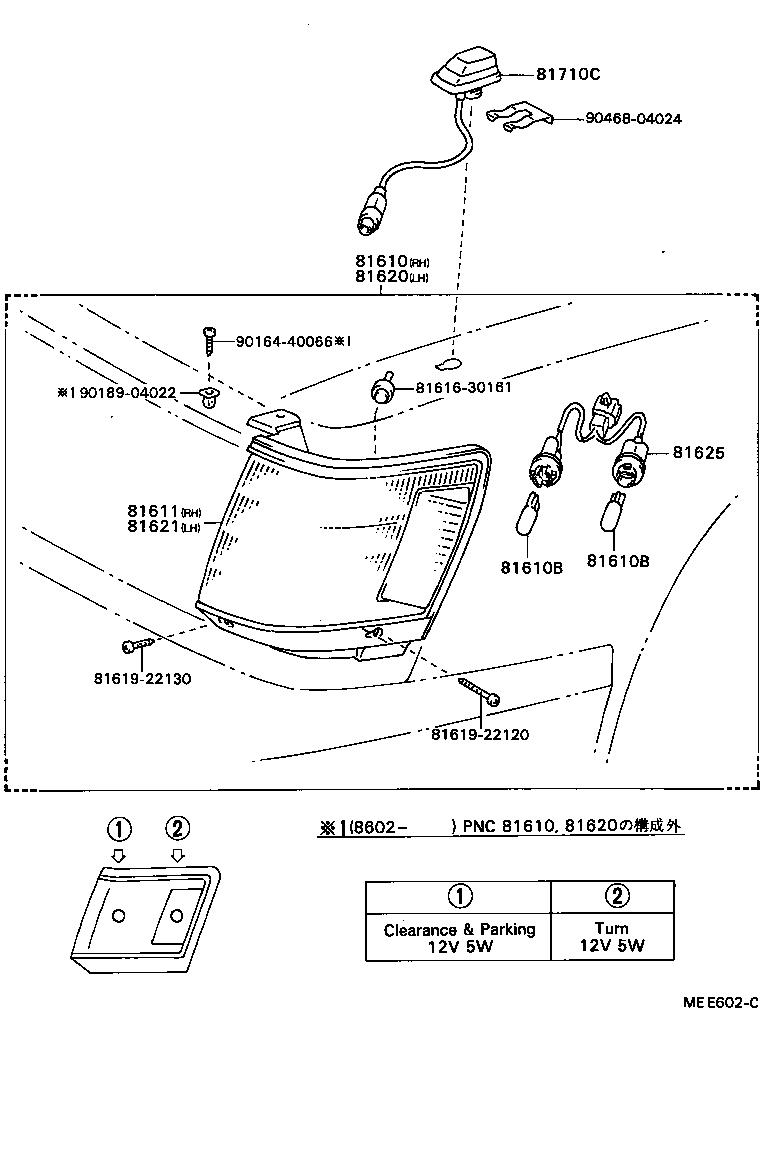

Figure MEE601C MEE601C 1984-08 → 1986-08 Figure MEH600 MEH600 1986-08 → — Figure MEE602C MEE602C 1984-08 → 1986-08 Figure MEH601B MEH601B 1986-08 → —

Part groups

PNCDescription
81610 Lamp Assy, Parking & Clearance, RH
81610B Bulb(FOR PARKING & CLEARANCE LAMP)
81611 Lens, Parking & Clearance Lamp, RH
81620 Lamp Assy, Parking & Clearance, LH
81621 Lens, Parking & Clearance Lamp, LH
81625 Socket And Wire, Parking And Clearance Lamp
81710C Marker Assy, Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
