Toyota Mark 2
1984-08 → 1988-08 · chassis GX7#,LX7#,MX71,SX70,YX7# · catalogue 311150 · Japan
Discontinued model
Data version 1989-02

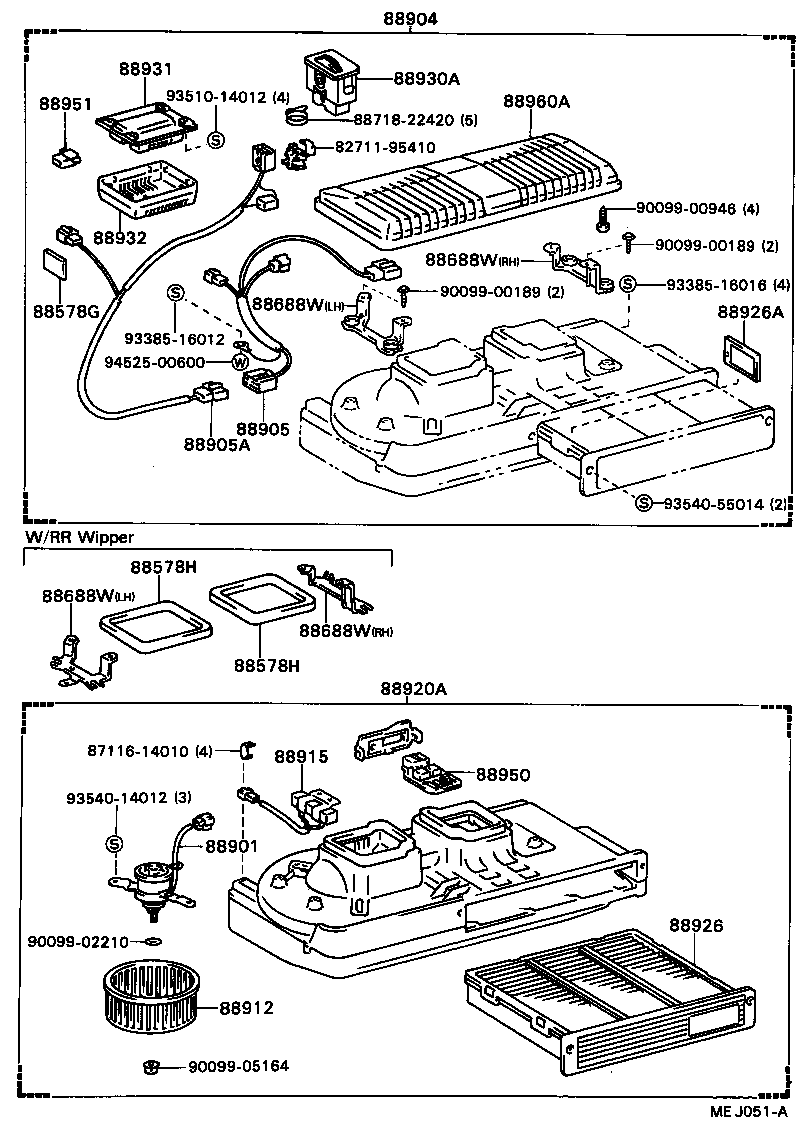

Air Purifier OR Ion Generator
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88578G | Packing, Air Purifier, NO.1 |
| 88578H | Packing, Air Purifier, NO.2 |
| 88630Q | Relay Assy, Air Purifier |
| 88688W | Bracket, Air Purifier, NO.1 |
| 88901 | Motor Sub-assy, Air Purifier |
| 88904 | Fitting Kit, Air Purifier |
| 88905 | Wire Sub-assy, Air Purifier, NO.1 |
| 88905A | Wire Sub-assy, Air Purifier, NO.2 |
| 88912 | Fan, Air Purifier |
| 88915 | Resistor, Air Purifier |
| 88920A | Purifier Assy, Air |
| 88926 | Filter, Air Purifier |
| 88926A | Odor, Cartridge |
| 88930A | Switch Assy, Air Purifier |
| 88931 | Sensor, Smoke |
| 88932 | Cover, Smoke Sensor |
| 88950 | Amplifier Assy, Air Purifier |
| 88951 | Wire, Smoke Sensor |
| 88960A | Grille Assy, Air Purifier |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
