Toyota Mark 2

1988-08 → 1995-12 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 311160 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

24 part groups · 10 illustrations

Illustrations

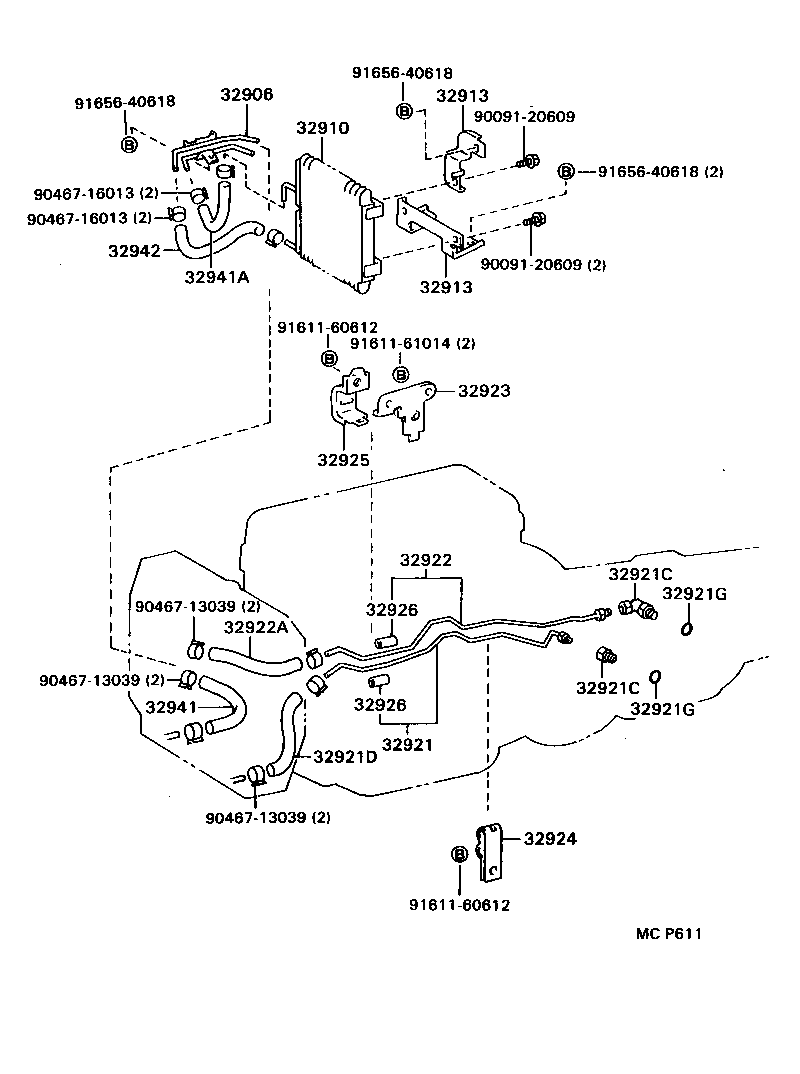

Figure NC5122B NC5122B 1988-08 → — Figure NC5123B NC5123B 1988-08 → — Figure NC5134A NC5134A 1988-08 → — Figure NC5132B NC5132B 1989-08 → — Figure NC5124A NC5124A 1988-08 → — Figure NC5125D NC5125D 1988-08 → — Figure MCK989A MCK989A 1988-08 → — Figure MCK989A MCK989A 1993-05 → — Figure MCP611 MCP611 1993-02 → — Figure MCL010B MCL010B 1990-08 → —

Part groups

PNCDescription
32906 Tube Sub-assy, Oil Cooler
32910 Cooler Assy, Oil
32913 Bracket, Oil Cooler
32921 Tube, Oil Cooler Inlet, NO.1
32921A Nut, Union(FOR OIL COOLER TUBE)
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32923 Clamp, Automatic Transmission Oil Cooler Tube
32923A Clamp, Automatic Transmission Oil Cooler Tube
32923B Clamp, Automatic Transmission Oil Cooler Tube, NO.1
32923C Clamp, Automatic Transmission Oil Cooler Tube, NO.4
32924 Clamp, Oil Cooler Tube, NO.2
32924A Clamp(FOR OIL COOLER TUBE, NO.2)
32925 Clamp, Oil Cooler Tube, NO.3
32926 Cushion, Oil Cooler Tube(ATM)
32928 Clamp, Flexible Hose, NO.1
32928A Clamp(FOR FLEXIBLE HOSE CLAMP)
32929 Clamp, Flexible Hose, NO.2
32941 Hose, Oil Cooler Inlet, NO.1
32941A Hose, Oil Cooler Inlet, NO.2
32942 Hose, Oil Cooler Outlet, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
