Factory parts data · Europe

Toyota Mark 2

1988-08 → 1995-12 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 311160 · Japan

Discontinued model Data version 1997-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

6 part groups · 3 illustrations

Illustrations

Figure MCL362C

MCL362C 1988-08 → —

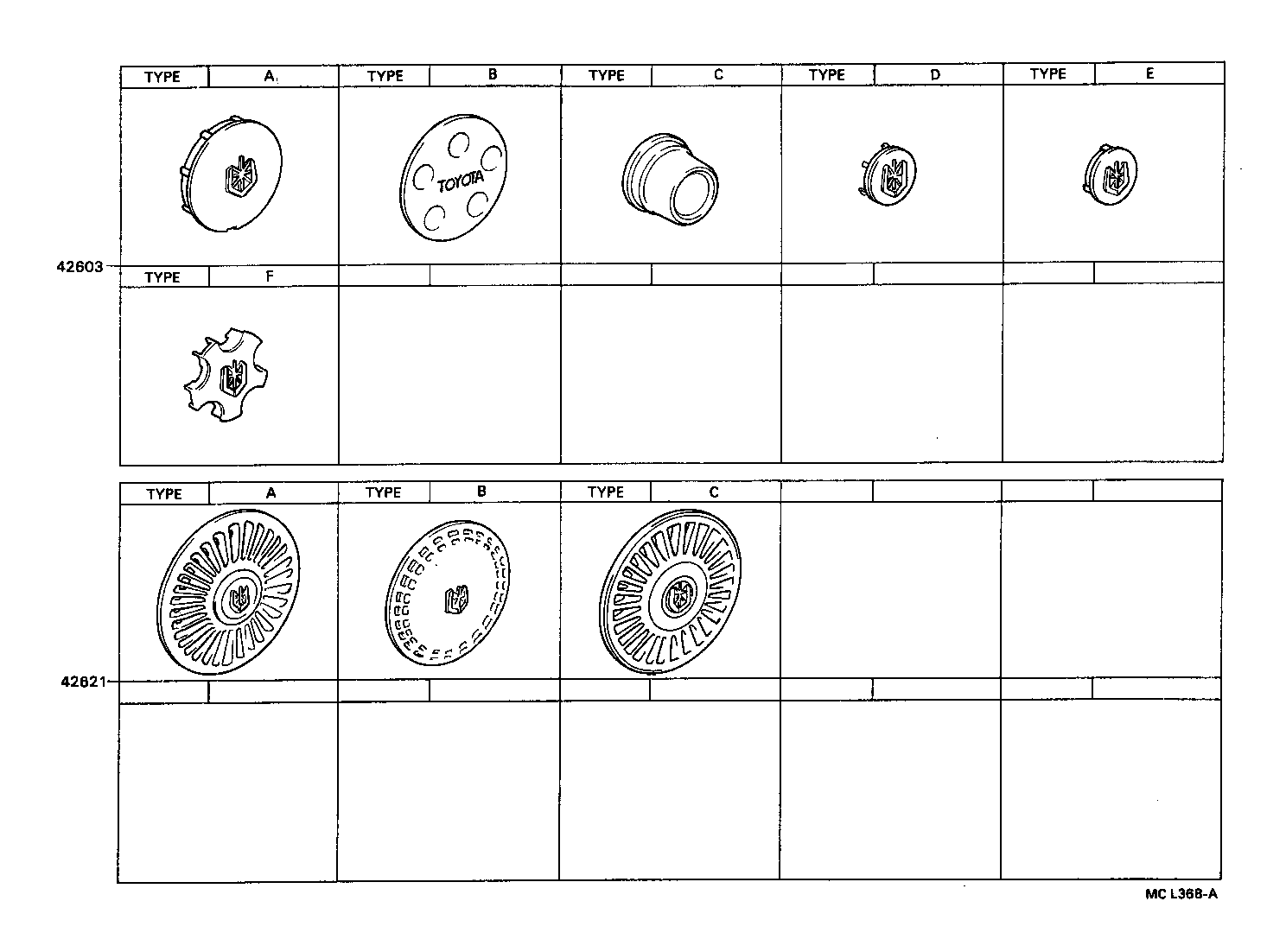

Figure MCL368A

MCL368A 1988-08 → —

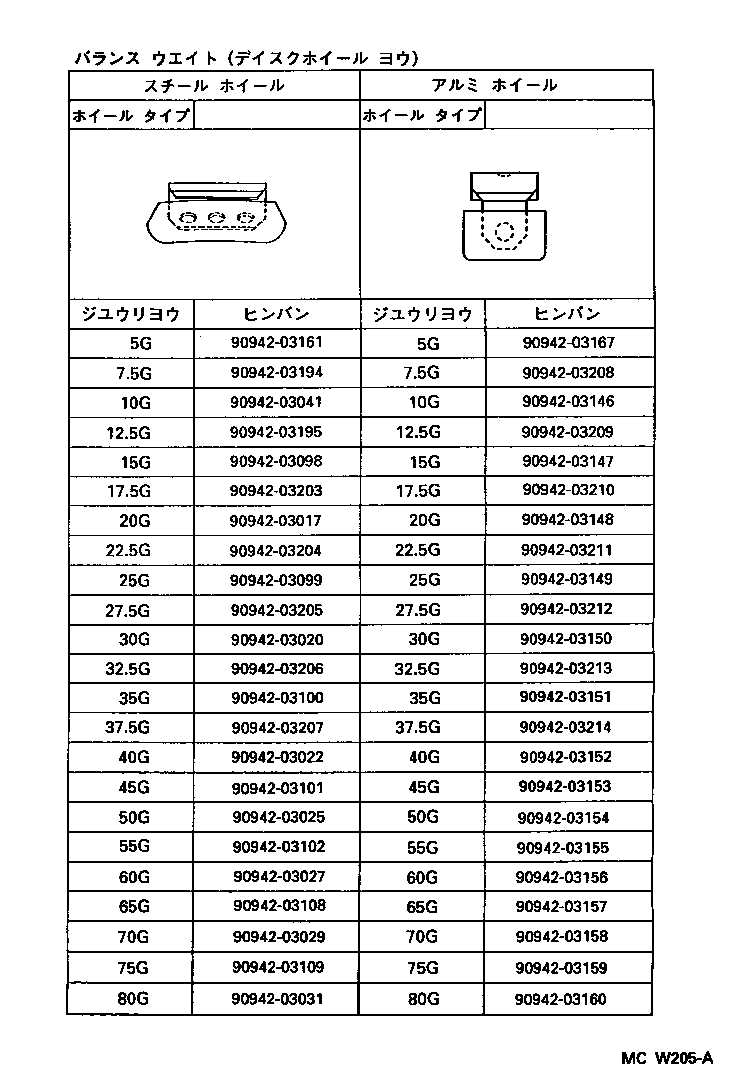

Figure MCW205A

MCW205A 1988-08 → —

Part groups

PNC	Description
42601	Wheel, Disc
42601A	Wheel, Disc (FOR SPARE)
42601C	Nut, Hub (FOR AXLE)
42603	Ornament Sub-assy, Wheel Hub
42611G	Valve (FOR TUBELESS TIRE)
42621	Cap, Wheel

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
