Toyota Mark 2

1988-08 → 1995-12 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 311160 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

7 part groups · 2 illustrations

Illustrations

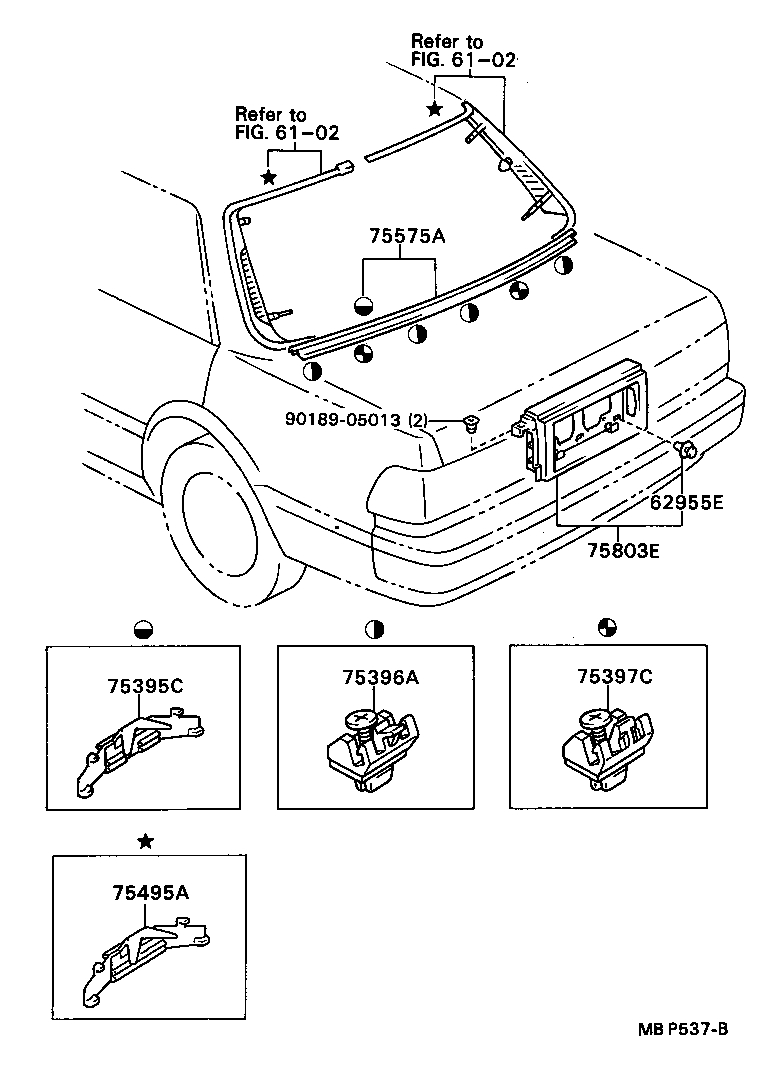

Figure MBP533B MBP533B 1988-08 → — Figure MBP537B MBP537B 1988-08 → 1992-10

Part groups

PNCDescription
62955E Retainer, Lower Back Finish Panel
75395C Clip, Outside Moulding, NO.1
75396A Clip, Outside Moulding, NO.2
75397C Clip, Outside Moulding, NO.3
75495A Clip, Outside Moulding, NO.4
75575A Moulding, Back Window, Outside Lower
75803E Moulding Sub-assy, Lower Back Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
