Toyota Mark 2

1988-08 → 1995-12 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 311160 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

9 part groups · 2 illustrations

Illustrations

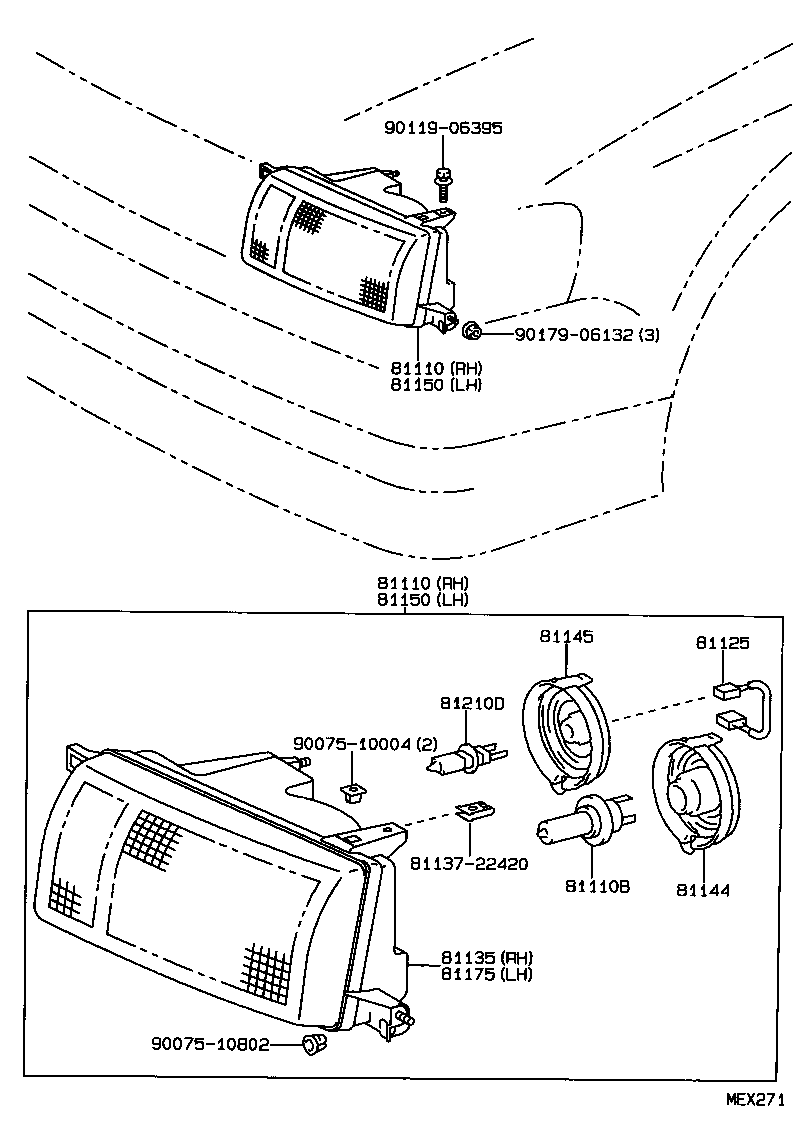

Figure NE5314B NE5314B 1988-08 → 1990-08 Figure MEX271 MEX271 1990-08 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81125 Cord, Headlamp
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81145 Cover, Headlamp, NO.2
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81210D Bulb, Fog Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
