Toyota Mark 2

1988-08 → 1995-12 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 311160 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Purifier OR Ion Generator

19 part groups · 2 illustrations

Illustrations

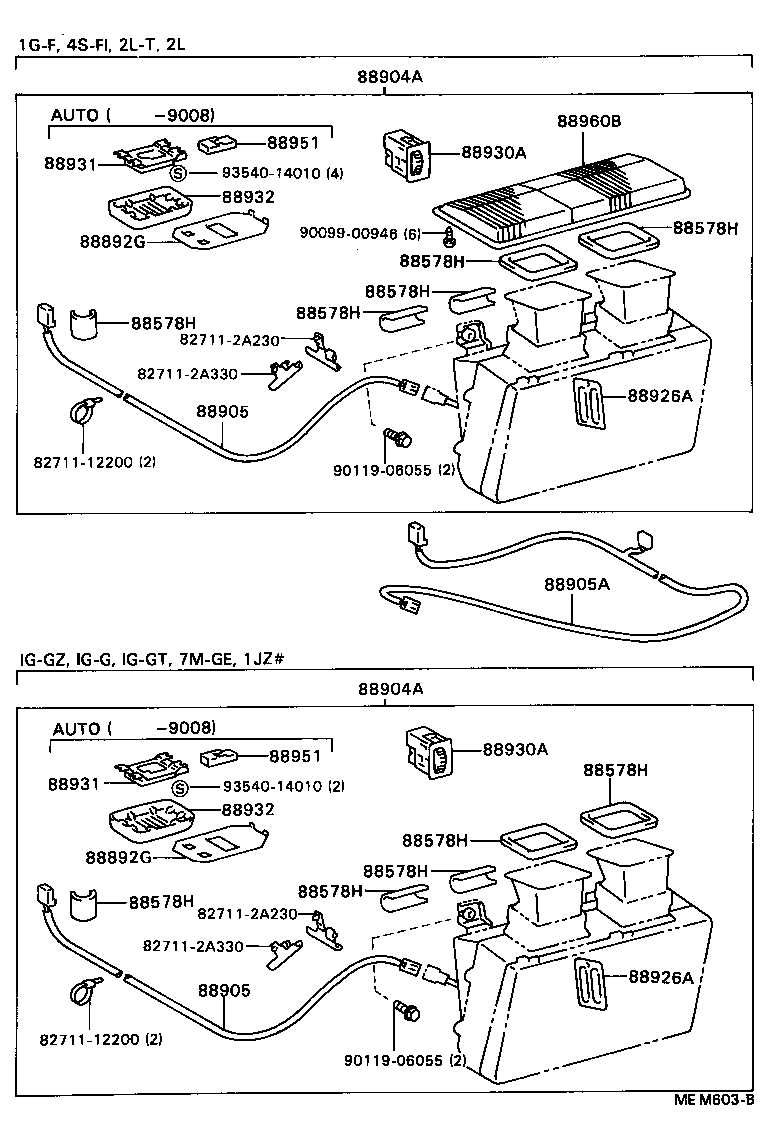

Figure MEM602C MEM602C 1988-08 → — Figure MEM603B MEM603B 1988-08 → —

Part groups

PNCDescription
88566H Duct, Air, NO.1
88578H Packing, Air Purifier, NO.2
88605R Harness Sub-assy, Air Purifier
88688W Bracket, Air Purifier, NO.1
88892G Plate Sub-assy
88901 Motor Sub-assy, Air Purifier
88904A Accessory Sub-assy, Air Purifire
88905 Wire Sub-assy, Air Purifier, NO.1
88905A Wire Sub-assy, Air Purifier, NO.2
88915 Resistor, Air Purifier
88920A Purifier Assy, Air
88926 Filter, Air Purifier
88926A Odor, Cartridge
88930A Switch Assy, Air Purifier
88931 Sensor, Smoke
88932 Cover, Smoke Sensor
88950 Amplifier Assy, Air Purifier
88951 Wire, Smoke Sensor
88960B Resistor Assy, Air Purifire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
