Toyota Mark 2

1992-10 → 1996-09 · chassis GX90,LX90,SX90,JZX9# · catalogue 311170 · Japan

Discontinued model Data version 1997-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

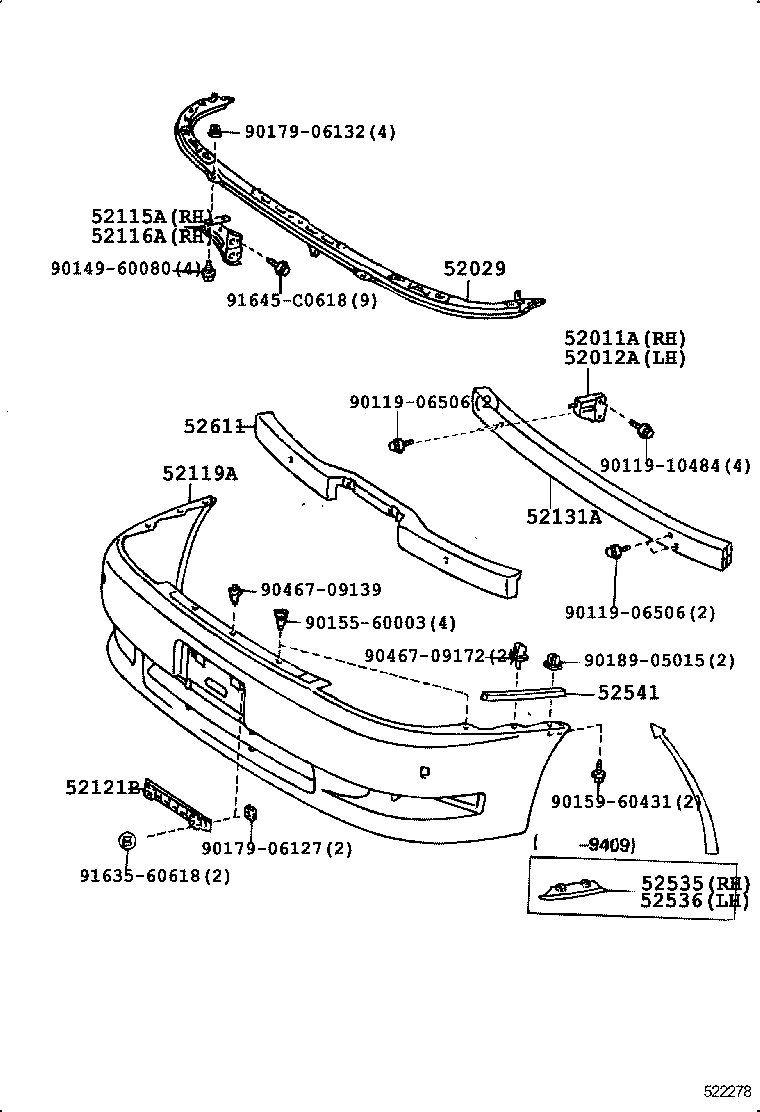

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

50 parts on this figure

Part number	Description	Fitment	Price
52011A — Arm Sub-assy, Front Bumper, RH
52011-22240	Arm Sub-assy, Front Bumper, RH 1992-10 → 1996-09 ended	GX90,JZX9#,LX90,SX90	¥2,640
52012A — Arm Sub-assy, Front Bumper, LH
52012-22250	Arm Sub-assy, Front Bumper, LH 1992-10 → 1996-09 ended	GX90,JZX9#,LX90,SX90	¥2,640
52029 — Reinforcement Sub-assy, Front Bumper, Upper
52029-22040	Reinforcement Sub-assy, Front Bumper, Upper 1992-10 → 1996-09 ended	GX90,JZX9#,LX90,SX90	¥7,900
52115A — Support, Front Bumper Side, RH
52115-22190	Support, Front Bumper Side, RH 1992-10 → 1996-09 ended	GX90,JZX9#,LX90,SX90	¥1,250
52116A — Support, Front Bumper Side, LH
52116-22160	Support, Front Bumper Side, LH 1992-10 → 1996-09 ended	GX90,JZX9#,LX90,SX90	¥1,250
52119A — Cover, Front Bumper
52119-22790-A0 note	Cover, Front Bumper 1992-10 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥85,100
52119-22790-A1 note	Cover, Front Bumper 1993-04 → 1993-09 ended	GX90 ATM	¥85,100
52119-22790-A1 note	Cover, Front Bumper 1992-10 → 1993-10 ended	GX90,JZX9#	¥85,100
52119-22790-A1 note	Cover, Front Bumper 1993-10 → 1994-09 ended	GX90,JZX9#	¥85,100
52119-22790-A2 note	Cover, Front Bumper 1993-06 → 1993-12 ended	JZX90 GD	¥85,100
52119-22790-B0 note	Cover, Front Bumper 1992-10 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥85,100
52119-22790-E0 note	Cover, Front Bumper 1992-10 → 1994-09 ended	GX90,JZX9#,LX90,SX90 GD,GDG,GL,GRO	¥85,100
52119-22790-G0 note	Cover, Front Bumper 1992-10 → 1994-09 ended	GX90,JZX9#,LX90,SX90 GD,GDG,GRO,TOUS,TOUV	¥85,100
52119-22790-G1 note	Cover, Front Bumper 1993-10 → 1994-08 ended	LX90 GRO	¥85,100
52119-22790-G1 note	Cover, Front Bumper 1992-10 → 1993-10 ended	JZX9#	¥85,100
52119-22790-G1 note	Cover, Front Bumper 1993-10 → 1994-09 ended	GX90,JZX9#	¥85,100
52119-22790-G1 note	Cover, Front Bumper 1993-04 → 1993-09 ended	GX90 ATM;LX90 GRO	¥85,100
52119-22790-H0 note	Cover, Front Bumper 1993-10 → 1994-09 ended	GX90,JZX9#,LX90,SX90 GD,GDG,GRO,TOUS,TOUV	¥85,100
52119-22800-A0 note	Cover, Front Bumper 1992-10 → 1994-09 ended	JZX90,91 GDG	¥85,500
52119-22800-A1 note	Cover, Front Bumper 1992-10 → 1994-09 ended	JZX90,91 GDG	¥85,500
52119-22800-B0 note	Cover, Front Bumper 1992-10 → 1994-09 ended	JZX90,91 GDG	¥85,500
52119-22800-E0 note	Cover, Front Bumper 1992-10 → 1994-09 ended	JZX90,91 GDG	¥85,500
52119-22800-G0 note	Cover, Front Bumper 1992-10 → 1994-09 ended	JZX90,91 GDG	¥85,500
52119-22800-G1 note	Cover, Front Bumper 1992-10 → 1994-09 ended	JZX90,91 GDG	¥85,500
52119-22800-H0 note	Cover, Front Bumper 1993-10 → 1994-09 ended	JZX90,91 GDG	¥85,500
52119-22810-A0 note	Cover, Front Bumper 1994-09 → 1996-09 ended	GX90,JZX9#,LX90,SX90	¥83,800
52119-22810-A1 note	Cover, Front Bumper 1994-09 → 1994-12 ended	JZX9#	¥83,800
52119-22810-A1 note	Cover, Front Bumper 1994-12 → 1996-09 ended	JZX90;GX90,JZX91,93 ATM	¥83,800
52119-22810-A2 note	Cover, Front Bumper 1996-04 → 1996-09 ended	GX90 ATM	¥83,800
52119-22810-B0 note	Cover, Front Bumper 1994-09 → 1996-09 ended	GX90,JZX9#,LX90,SX90 GD,GDG,GRO,TOUS,TOUV	¥83,800
52119-22810-E0 note	Cover, Front Bumper 1994-09 → 1996-09 ended	GX90,JZX9#,LX90,SX90 GD,GDG,GL,GRO	¥83,800
52119-22810-E1 note	Cover, Front Bumper 1994-09 → 1996-09 ended	GX90,JZX9#,LX90,SX90 GD,GDG,GL,GRO	¥83,800
52119-22810-G0 note	Cover, Front Bumper 1994-09 → 1994-12 ended	JZX9#	¥83,800
52119-22810-G0 note	Cover, Front Bumper 1994-12 → 1996-09 ended	GX90,JZX91,93 ATM;JZX90,LX90 GD,GDG,GRO,TOUS,TOUV	¥83,800
52119-22810-G1 note	Cover, Front Bumper 1995-04 → 1996-03 ended	GX90 ATM	¥83,800
52119-22810-H0 note	Cover, Front Bumper 1994-09 → 1995-09 ended	GX90,JZX9#,LX90,SX90 GD,GDG,GRO,TOUS,TOUV	¥83,800
52119-22820-A0 note	Cover, Front Bumper 1994-09 → 1996-09 ended	JZX90,91 GDG	¥85,400
52119-22820-A1 note	Cover, Front Bumper 1994-09 → 1996-09 ended	JZX90,91 GDG	¥85,400
52119-22820-B0 note	Cover, Front Bumper 1994-09 → 1996-09 ended	JZX90,91 GDG	¥85,400
52119-22820-E0 note	Cover, Front Bumper 1994-09 → 1996-09 ended	JZX90,91 GDG	¥85,400
52119-22820-E1 note	Cover, Front Bumper 1994-09 → 1996-09 ended	JZX90,91 GDG	¥85,400
52119-22820-G0 note	Cover, Front Bumper 1994-09 → 1996-09 ended	JZX90,91 GDG	¥85,400
52119-22820-H0 note	Cover, Front Bumper 1994-09 → 1995-09 ended	JZX90,91 GDG	¥85,400
52121B — Bracket, Front Licence Plate Mounting
52121-22130	Bracket, Front Licence Plate Mounting 1992-10 → 1996-09 ended	GX90,JZX9#,LX90,SX90	¥1,430
52131A — Reinforcement, Front Bumper
52131-22190	Reinforcement, Front Bumper 1992-10 → 1996-09 ended	GX90,JZX9#,LX90,SX90	¥30,500
52535 — Retainer, Front Bumper Side, RH
52535-22050	Retainer, Front Bumper Side, RH 1992-10 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥860
52536 — Retainer, Front Bumper Side, LH
52536-22050	Retainer, Front Bumper Side, LH 1992-10 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥860
52541 — Protector, Front Bumper
52541-22020	Protector, Front Bumper 1994-09 → 1996-09 ended	GX90,JZX9#,LX90,SX90	¥670
52611 — Absorber, Front Bumper Energy
52611-22200	Absorber, Front Bumper Energy 1992-10 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥10,000
52611-22210	Absorber, Front Bumper Energy 1994-09 → 1996-09 ended	GX90,JZX9#,LX90,SX90	¥8,500

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
