Toyota Mark 2
1992-10 → 1996-09 · chassis GX90,LX90,SX90,JZX9# · catalogue 311170 · Japan
Discontinued model
Data version 1997-06

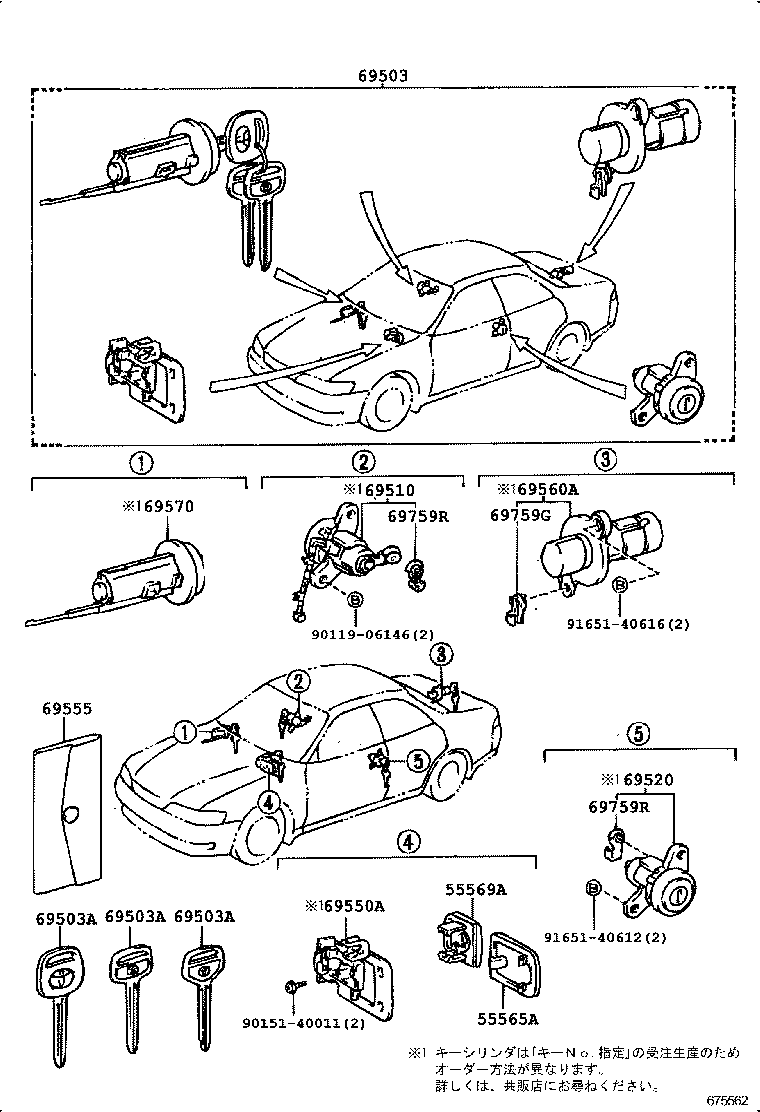

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55565A — Handle, Glove Compartment Door Lock | ||||
| 55565-22030-E0 note |
Handle, Glove Compartment Door Lock
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GL,GRO | ¥350 | |
| 55565-22030-G0 note |
Handle, Glove Compartment Door Lock
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GRO,TOUS,TOUV | ¥350 | |
| 55565-22030-J0 note |
Handle, Glove Compartment Door Lock
1994-09 → 1996-09
ended
|
JZX90 TOUS,TOUV | ¥350 | |
| 55565-22030-J0 note |
Handle, Glove Compartment Door Lock
1992-10 → 1994-09
ended
|
GX90,JZX90,91,LX90,SX90 | ¥350 | |
| 55569A — Cover, Glove Compartment Door Lock | ||||
| 55569-22040-E0 note |
Cover, Glove Compartment Door Lock
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GL,GRO | ¥550 | |
| 55569-22040-G0 note |
Cover, Glove Compartment Door Lock
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GRO,TOUS,TOUV | ¥550 | |
| 55569-22040-J0 note |
Cover, Glove Compartment Door Lock
1992-10 → 1994-09
ended
|
GX90,JZX90,91,LX90,SX90 | ¥550 | |
| 55569-22040-J0 note |
Cover, Glove Compartment Door Lock
1994-09 → 1996-09
ended
|
JZX90 TOUS,TOUV | ¥550 | |
| 69503 — Cylinder Set, Lock | ||||
| 69005-2A110 |
Cylinder Set, Lock
1992-10 → 1994-09
ended
|
LX90,SX90 | ¥21,200 | |
| 69005-2A110 |
Cylinder Set, Lock
1994-09 → 1996-09
ended
|
JZX93;GX90,JZX90,LX90,SX90 GD,GL,GRO,TOUS | ¥21,200 | |
| 69005-2A120 |
Cylinder Set, Lock
1992-10 → 1994-09
ended
|
JZX93;GX90,JZX90 GD,TOUS,TOUV | ¥23,300 | |
| 69503A — Key, Blank | ||||
| 90999-00185 note |
Key, Blank
1992-10 → 1993-10
ended
|
GX90,JZX9#,LX90,SX90 | ¥1,790 | |
| 90999-00185 note |
Key, Blank
1993-10 → 1994-09
ended
|
JZX93;GX90,JZX90,LX90,SX90 GD,GL,GRO,TOUS,TOUV | ¥1,790 | |
| 90999-00185 note |
Key, Blank
1994-09 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥1,790 | |
| 90999-00186 note |
Key, Blank
1992-10 → 1993-10
ended
|
GX90,JZX90,LX90,SX90 GD,GL,GRO,TOUS,TOUV | ¥1,430 | |
| 90999-00186 note |
Key, Blank
1993-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥1,430 | |
| 90999-00188 note |
Key, Blank
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥1,720 | |
| 69510 — Cylinder Assy, Front Door Lock, RH | ||||
| 69510-22240 |
Cylinder Assy, Front Door Lock, RH
1992-10 → 1994-09
ended
|
LX90,SX90 | ¥8,800 | |
| 69510-22240 |
Cylinder Assy, Front Door Lock, RH
1994-09 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥8,800 | |
| 69510-22250 |
Cylinder Assy, Front Door Lock, RH
1992-10 → 1994-09
ended
|
GX90,JZX9# | ¥11,200 | |
| 69520 — Cylinder Assy, Front Door Lock, LH | ||||
| 69520-22220 |
Cylinder Assy, Front Door Lock, LH
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥8,800 | |
| 69550A — Cylinder Assy, Glove Compartment Door Lock | ||||
| 69550-22100 |
Cylinder Assy, Glove Compartment Door Lock
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥11,500 | |
| 69555 — Cover, Key | ||||
| 69555-17020 |
Cover, Key
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥810 | |
| 69560A — Cylinder Assy, Luggage Compartment Door Lock | ||||
| 69560-22360 |
Cylinder Assy, Luggage Compartment Door Lock
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥9,000 | |
| 69570 — Cylinder Assy, Ignition Switch Lock | ||||
| 69570-22100 |
Cylinder Assy, Ignition Switch Lock
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥11,900 | |
| 69759G — Snap, Luggage Door Lock Cylinder | ||||
| 69759-24080 |
Snap, Luggage Door Lock Cylinder
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥200 | |
| 69759R — Snap, Front Door Lock Cylinder | ||||
| 69759-24100 note |
Snap, Front Door Lock Cylinder
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥300 | |
| 69759-24110 note |
Snap, Front Door Lock Cylinder
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
