Toyota Mark 2

1992-10 → 1996-09 · chassis GX90,LX90,SX90,JZX9# · catalogue 311170 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

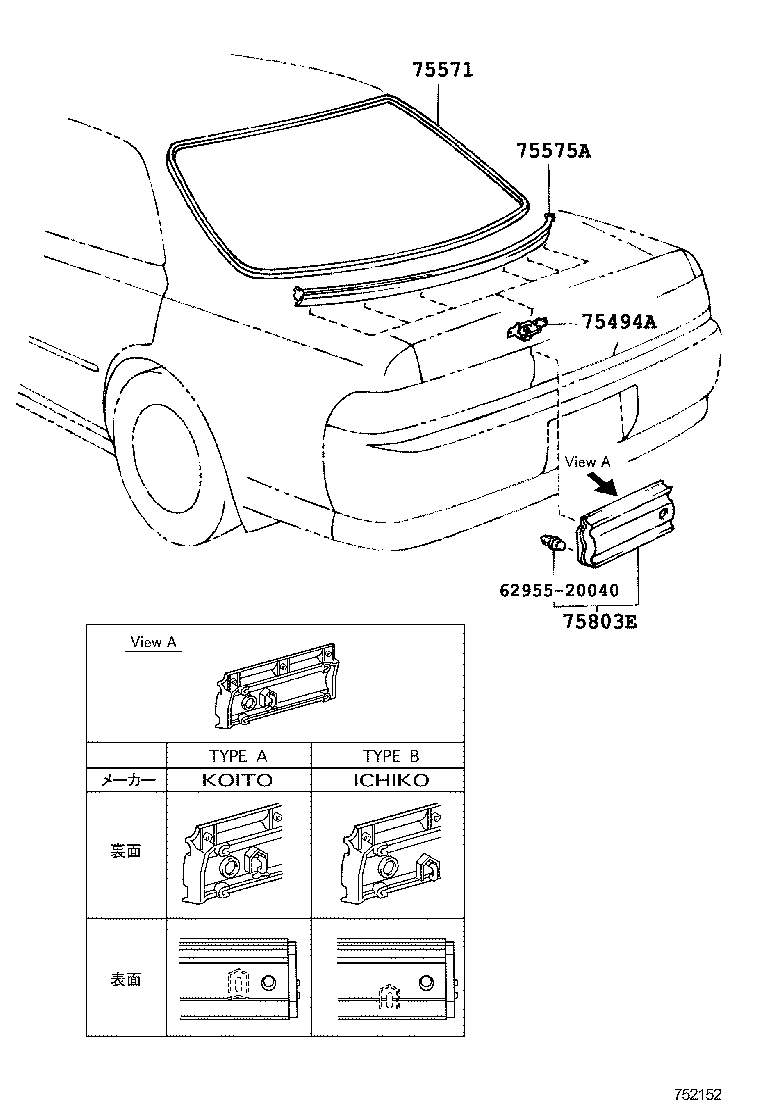

Exploded illustration 752152 75571 — MOULDING, BACK WINDOW, OUTSIDE UPPER (2 parts) 75575A — MOULDING, BACK WINDOW, OUTSIDE LOWER (1 parts) 75494A — CLIP, OUTSIDE MOULDING, NO.3 (1 parts) 6295520040 — not listed in this catalogue 75803E — MOULDING SUB-ASSY, LOWER BACK PANEL (3 parts)
752152 · 4 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
7 parts on this figure
Part number Description Fitment Price
75494A — Clip, Outside Moulding, NO.3
75496-22030 Clip, Outside Moulding, NO.3
1992-10 → 1994-08 ended
GX90,JZX9#,LX90,SX90 ¥470
75571 — Moulding, Back Window, Outside Upper
75571-22130 note Moulding, Back Window, Outside Upper
1992-10 → 1993-10 ended
GX90,JZX9#,LX90,SX90 ¥6,400
75571-22131 note Moulding, Back Window, Outside Upper
1993-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥6,400
75575A — Moulding, Back Window, Outside Lower
75575-22150 Moulding, Back Window, Outside Lower
1992-10 → 1994-08 ended
GX90,JZX9#,LX90,SX90 ¥3,040
75803E — Moulding Sub-assy, Lower Back Panel
75803-22210 note Moulding Sub-assy, Lower Back Panel
1992-10 → 1994-09 ended
GX90,JZX9#,LX90,SX90 ¥13,200
75803-22250 note Moulding Sub-assy, Lower Back Panel
1992-12 → 1994-09 ended
GX90,JZX9#,LX90,SX90 ¥13,200
75803-22280 Moulding Sub-assy, Lower Back Panel
1994-09 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥13,200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
