Toyota Mark 2

1992-10 → 1996-09 · chassis GX90,LX90,SX90,JZX9# · catalogue 311170 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

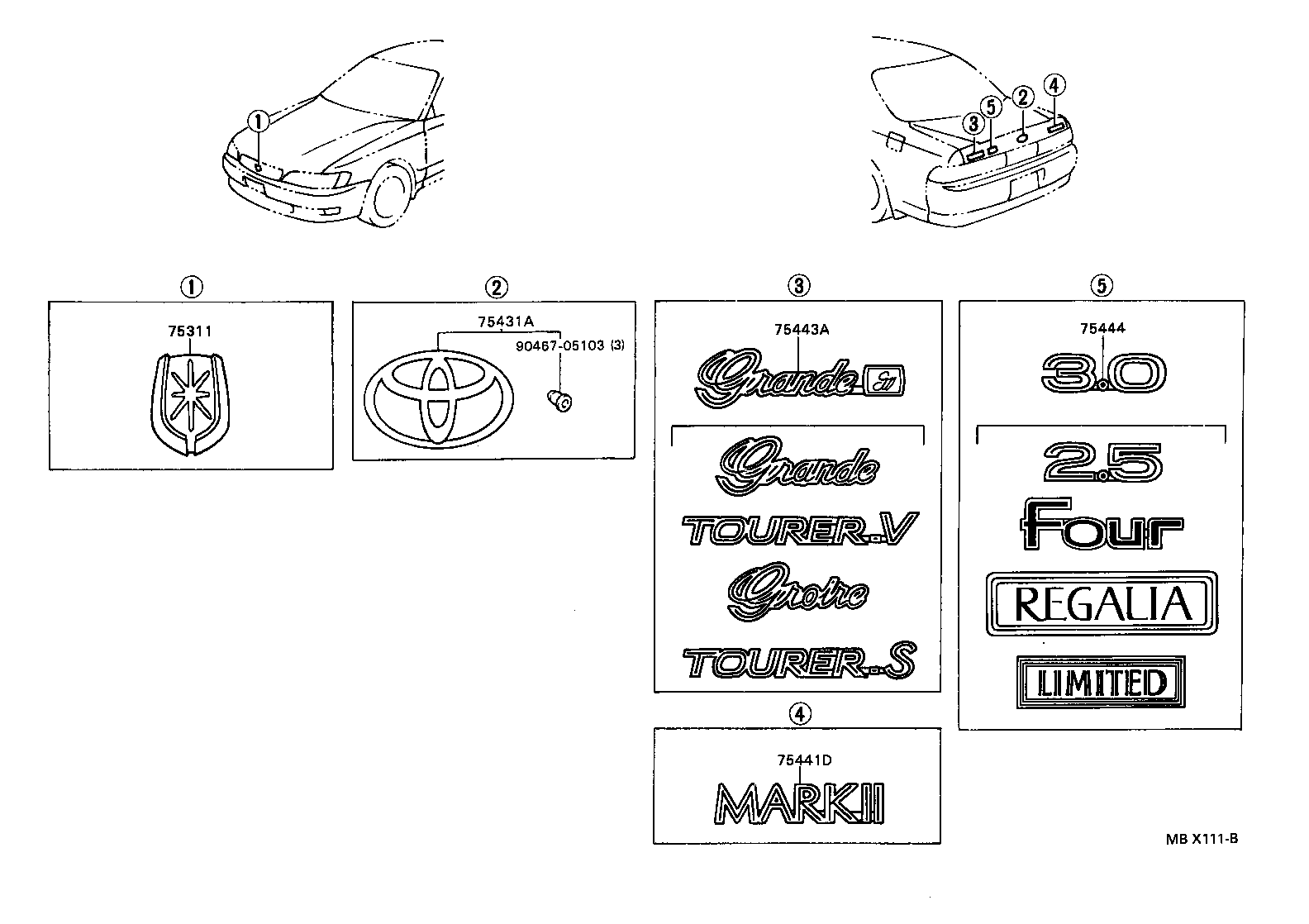

Exploded illustration MBX111B 75431A — EMBLEM, BACK DOOR, NO.1 (1 parts) 75444 — PLATE, LUGGAGE COMPARTMENT DOOR, NO.4 (7 parts) 75443A — PLATE, LUGGAGE COMPARTMENT DOOR, NO.3 (5 parts) 75311 — EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) (2 parts) 9046705103 — not listed in this catalogue 75441D — PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1 (1 parts)
MBX111B · 5 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
75311 — Emblem, Radiator Grille (OR FRONT PANEL)
75311-22470 Emblem, Radiator Grille (OR FRONT PANEL)
1992-10 → 1994-09 ended
GX90,JZX9#,LX90,SX90 ¥2,650
75311-22500 Emblem, Radiator Grille (OR FRONT PANEL)
1994-09 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥2,070
75431A — Emblem, Back Door, NO.1
75431-22010 Emblem, Back Door, NO.1
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥1,830
75441D — Plate, Luggage Compartment Door Name, NO.1
75441-22180 note Plate, Luggage Compartment Door Name, NO.1
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥2,420
75443A — Plate, Luggage Compartment Door, NO.3
75443-22790 note Plate, Luggage Compartment Door, NO.3
1992-10 → 1996-09 ended
JZX9# GDG ¥3,850
75443-22800 note Plate, Luggage Compartment Door, NO.3
1992-10 → 1996-09 ended
GX90,JZX90,93 GD ¥2,920
75443-22810 note Plate, Luggage Compartment Door, NO.3
1992-10 → 1996-09 ended
JZX90 TOUV ¥3,090
75443-22820 note Plate, Luggage Compartment Door, NO.3
1992-10 → 1996-09 ended
LX90,SX90 GRO ¥2,650
75443-22830 note Plate, Luggage Compartment Door, NO.3
1992-10 → 1996-09 ended
JZX90 TOUS ¥3,260
75444 — Plate, Luggage Compartment Door, NO.4
75350-22010 note Plate, Luggage Compartment Door, NO.4
1995-04 → 1996-09 ended
GX90 ATM ¥2,970
75444-22330 note Plate, Luggage Compartment Door, NO.4
1993-10 → 1996-09 ended
JZX93 ¥2,650
75444-22360 note Plate, Luggage Compartment Door, NO.4
1993-10 → 1994-09 ended
GX90 ¥3,440
75444-22360 note Plate, Luggage Compartment Door, NO.4
1995-04 → 1996-05 ended
GX90,JZX90 ATM GD ¥3,440
75444-22360 note Plate, Luggage Compartment Door, NO.4
1994-12 → 1996-09 ended
GX90 ATM ¥3,440
75444-22370 note Plate, Luggage Compartment Door, NO.4
1992-10 → 1996-09 ended
JZX91 ¥2,420
75444-22380 note Plate, Luggage Compartment Door, NO.4
1992-10 → 1996-09 ended
JZX90 GD,GDG ¥2,420
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
