Toyota Mark 2
1992-10 → 1996-09 · chassis GX90,LX90,SX90,JZX9# · catalogue 311170 · Japan
Discontinued model
Data version 1997-06

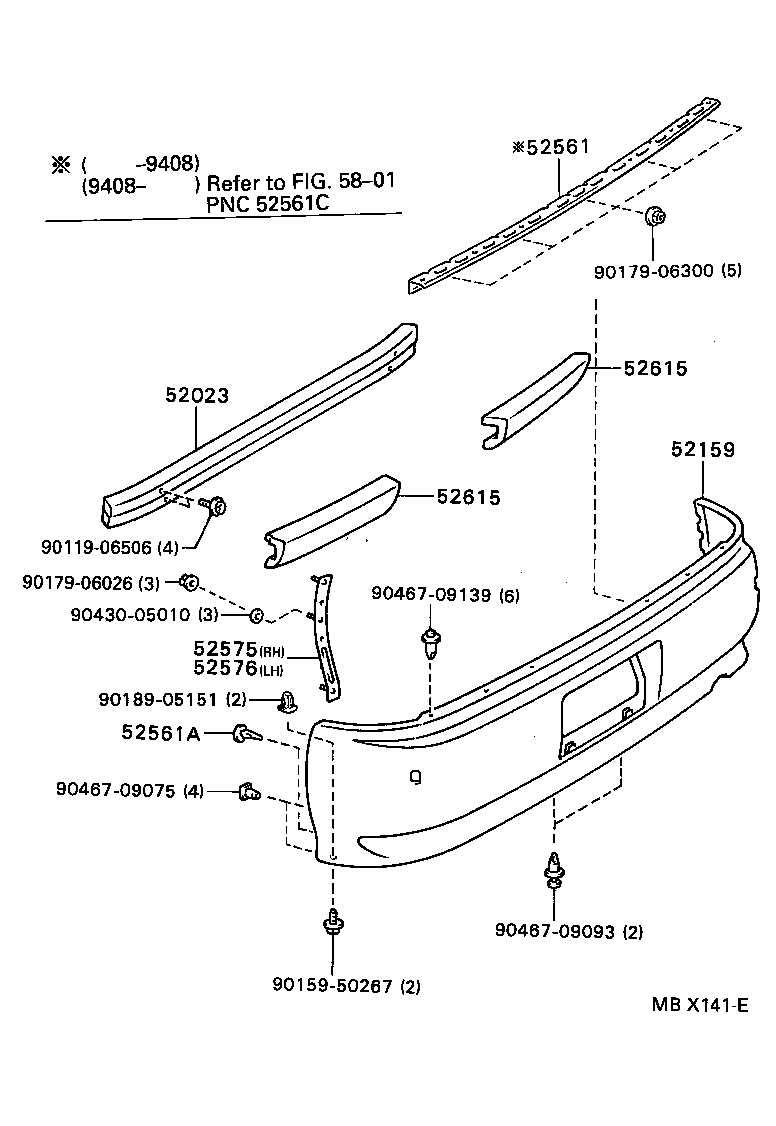

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52023 — Reinforcement Sub-assy, Rear Bumper | ||||
| 52023-22200 |
Reinforcement Sub-assy, Rear Bumper
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥28,300 | |
| 52023-22210 note |
Reinforcement Sub-assy, Rear Bumper
1993-08 → 1996-09
ended
|
JZX90,91 GDG | ¥28,300 | |
| 52159 — Cover, Rear Bumper | ||||
| 52159-22590-A0 note |
Cover, Rear Bumper
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥80,000 | |
| 52159-22590-A1 note |
Cover, Rear Bumper
1992-10 → 1993-10
ended
|
JZX9# | ¥80,000 | |
| 52159-22590-A1 note |
Cover, Rear Bumper
1993-04 → 1993-09
ended
|
GX90 ATM | ¥80,000 | |
| 52159-22590-A1 note |
Cover, Rear Bumper
1994-12 → 1996-09
ended
|
JZX90;GX90,JZX91,93 ATM | ¥80,000 | |
| 52159-22590-A1 note |
Cover, Rear Bumper
1994-09 → 1994-12
ended
|
JZX9# | ¥80,000 | |
| 52159-22590-A1 note |
Cover, Rear Bumper
1993-10 → 1994-09
ended
|
GX90,JZX9# | ¥80,000 | |
| 52159-22590-A2 note |
Cover, Rear Bumper
1993-10 → 1993-12
ended
|
JZX90 GD | ¥80,000 | |
| 52159-22590-A3 note |
Cover, Rear Bumper
1996-04 → 1996-09
ended
|
GX90 ATM | ¥80,000 | |
| 52159-22590-B0 note |
Cover, Rear Bumper
1992-10 → 1994-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥80,000 | |
| 52159-22590-B1 note |
Cover, Rear Bumper
1994-09 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GRO,TOUS,TOUV | ¥80,000 | |
| 52159-22590-E0 note |
Cover, Rear Bumper
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GL,GRO | ¥80,000 | |
| 52159-22590-E1 note |
Cover, Rear Bumper
1994-09 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GL,GRO | ¥80,000 | |
| 52159-22590-G0 note |
Cover, Rear Bumper
1992-10 → 1994-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GRO,TOUS,TOUV | ¥80,000 | |
| 52159-22590-G1 note |
Cover, Rear Bumper
1994-12 → 1996-09
ended
|
GX90,JZX91,93 ATM;JZX90,LX90 GD,GDG,GRO,TOUS,TOUV | ¥80,000 | |
| 52159-22590-G1 note |
Cover, Rear Bumper
1993-10 → 1994-09
ended
|
GX90,JZX9# | ¥80,000 | |
| 52159-22590-G1 note |
Cover, Rear Bumper
1994-09 → 1994-12
ended
|
JZX9# | ¥80,000 | |
| 52159-22590-G1 note |
Cover, Rear Bumper
1993-10 → 1994-08
ended
|
LX90 GRO | ¥80,000 | |
| 52159-22590-G1 note |
Cover, Rear Bumper
1992-10 → 1993-10
ended
|
JZX9# | ¥80,000 | |
| 52159-22590-G1 note |
Cover, Rear Bumper
1993-04 → 1993-09
ended
|
GX90 ATM;LX90 GRO | ¥80,000 | |
| 52159-22590-G2 note |
Cover, Rear Bumper
1995-04 → 1996-03
ended
|
GX90 ATM | ¥80,000 | |
| 52159-22590-H0 note |
Cover, Rear Bumper
1993-10 → 1995-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GRO,TOUS,TOUV | ¥80,000 | |
| 52159-22600-A0 note |
Cover, Rear Bumper
1992-10 → 1996-09
ended
|
JZX90,91 GDG | ¥80,000 | |
| 52159-22600-A1 note |
Cover, Rear Bumper
1992-10 → 1996-09
ended
|
JZX90,91 GDG | ¥80,000 | |
| 52159-22600-B0 note |
Cover, Rear Bumper
1992-10 → 1994-09
ended
|
JZX90,91 GDG | ¥80,000 | |
| 52159-22600-B1 note |
Cover, Rear Bumper
1994-09 → 1996-09
ended
|
JZX90,91 GDG | ¥80,000 | |
| 52159-22600-E0 note |
Cover, Rear Bumper
1992-10 → 1996-09
ended
|
JZX90,91 GDG | ¥80,000 | |
| 52159-22600-E1 note |
Cover, Rear Bumper
1994-09 → 1996-09
ended
|
JZX90,91 GDG | ¥80,000 | |
| 52159-22600-G0 note |
Cover, Rear Bumper
1992-10 → 1994-09
ended
|
JZX90,91 GDG | ¥80,000 | |
| 52159-22600-G1 note |
Cover, Rear Bumper
1992-10 → 1996-09
ended
|
JZX90,91 GDG | ¥80,000 | |
| 52159-22600-H0 note |
Cover, Rear Bumper
1993-10 → 1995-09
ended
|
JZX90,91 GDG | ¥80,000 | |
| 52561 — Retainer, Rear Bumper, Upper Center | ||||
| 52561-22080 |
Retainer, Rear Bumper, Upper Center
1992-10 → 1994-08
ended
|
GX90,JZX9#,LX90,SX90 | ¥4,010 | |
| 52561A — Clip(FOR REAR BUMPER RETAINER) | ||||
| 90467-05113 |
Clip(FOR REAR BUMPER RETAINER)
1992-10 → 1993-05
ended
|
GX90,JZX9#,LX90,SX90 | ¥250 | |
| 90467-05113 |
Clip(FOR REAR BUMPER RETAINER)
1993-05 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥250 | |
| 52575 — Retainer, Rear Bumper Side, RH | ||||
| 52575-22050 |
Retainer, Rear Bumper Side, RH
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥1,140 | |
| 52576 — Retainer, Rear Bumper Side, LH | ||||
| 52576-22050 |
Retainer, Rear Bumper Side, LH
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥1,140 | |
| 52615 — Absorber, Rear Bumper Energy | ||||
| 52615-22170 note |
Absorber, Rear Bumper Energy
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥5,300 | |
| 52616-22010 note |
Absorber, Rear Bumper Energy
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥5,300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
