Toyota Mark 2
1992-10 → 1996-09 · chassis GX90,LX90,SX90,JZX9# · catalogue 311170 · Japan
Discontinued model
Data version 1997-06

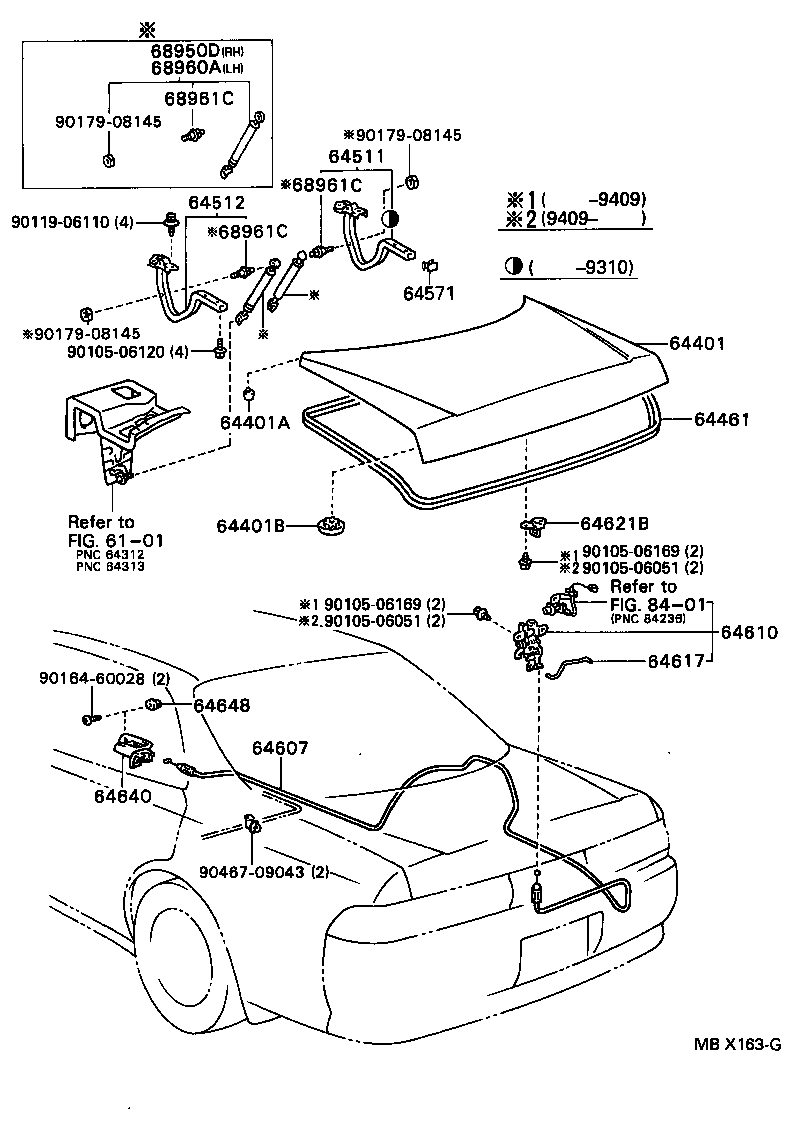

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 64401 — Panel Sub-assy, Luggage Compartment Door | ||||
| 64401-22570 |
Panel Sub-assy, Luggage Compartment Door
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GL,GRO | ¥50,700 | |
| 64401-22570 note |
Panel Sub-assy, Luggage Compartment Door
1993-10 → 1996-09
ended
|
JZX90 TOUS,TOUV | ¥50,700 | |
| 64401-22580 note |
Panel Sub-assy, Luggage Compartment Door
1992-10 → 1996-09
ended
|
JZX90 TOUS,TOUV | ¥50,700 | |
| 64401-22590 note |
Panel Sub-assy, Luggage Compartment Door
1992-10 → 1993-10
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GRO | ¥50,700 | |
| 64401-22590 note |
Panel Sub-assy, Luggage Compartment Door
1993-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GRO,TOUS,TOUV | ¥50,700 | |
| 64401A — Cushion(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06041 |
Cushion(FOR LUGGAGE COMPARTMENT DOOR PANEL)
1992-10 → 1993-10
ended
|
GX90,JZX9#,LX90,SX90 | ¥180 | |
| 90541-06059 |
Cushion(FOR LUGGAGE COMPARTMENT DOOR PANEL)
1993-10 → 1994-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥110 | |
| 90541-06059 note |
Cushion(FOR LUGGAGE COMPARTMENT DOOR PANEL)
1994-09 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥110 | |
| 64401B — Plug, Hole(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90950-01392 |
Plug, Hole(FOR LUGGAGE COMPARTMENT DOOR PANEL)
1992-10 → 1993-05
ended
|
GX90,JZX9#,LX90,SX90 | ¥100 | |
| 64461 — Weatherstrip, Luggage Compartment Door | ||||
| 64461-22230 |
Weatherstrip, Luggage Compartment Door
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥7,500 | |
| 64511 — Support, Luggage Compartment Door Hinge, RH | ||||
| 64510-22090 |
Support, Luggage Compartment Door Hinge, RH
1992-10 → 1992-12
ended
|
GX90,JZX9#,LX90,SX90 | ¥2,830 | |
| 64510-22090 note |
Support, Luggage Compartment Door Hinge, RH
1992-12 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥2,830 | |
| 64510-22100 note |
Support, Luggage Compartment Door Hinge, RH
1992-12 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥2,830 | |
| 64512 — Support, Luggage Compartment Door Hinge, LH | ||||
| 64520-22080 |
Support, Luggage Compartment Door Hinge, LH
1992-10 → 1992-12
ended
|
GX90,JZX9#,LX90,SX90 | ¥2,830 | |
| 64520-22080 note |
Support, Luggage Compartment Door Hinge, LH
1992-12 → 1994-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥2,830 | |
| 64520-22080 note |
Support, Luggage Compartment Door Hinge, LH
1994-09 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥2,830 | |
| 64520-22090 note |
Support, Luggage Compartment Door Hinge, LH
1992-12 → 1994-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥2,830 | |
| 64520-22090 note |
Support, Luggage Compartment Door Hinge, LH
1994-09 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥2,830 | |
| 64571 — Cover, Luggage Compartment Door Hinge | ||||
| 64571-22020 |
Cover, Luggage Compartment Door Hinge
1992-10 → 1993-10
ended
|
GX90,JZX90,LX90,SX90 GD,GL,GRO,TOUS,TOUV | ¥260 | |
| 64607 — Cable Sub-assy, Luggage Door Lock Control | ||||
| 64607-22340 |
Cable Sub-assy, Luggage Door Lock Control
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥2,430 | |
| 64610 — Lock Assy, Luggage Compartment Door | ||||
| 64610-22140 |
Lock Assy, Luggage Compartment Door
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥2,980 | |
| 64617 — Link, Luggage Compartment Door Lock | ||||
| 64617-22020 |
Link, Luggage Compartment Door Lock
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥350 | |
| 64621B — Striker, Luggage Compartment Door Lock | ||||
| 64620-12100 note |
Striker, Luggage Compartment Door Lock
1993-08 → 1994-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥1,530 | |
| 64620-12100 |
Striker, Luggage Compartment Door Lock
1994-09 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥1,530 | |
| 64620-24020 note |
Striker, Luggage Compartment Door Lock
1992-10 → 1993-08
ended
|
GX90,JZX9#,LX90,SX90 | ¥1,530 | |
| 64640 — Opener Assy, Luggage Door Lock | ||||
| 64640-22240-E0 note |
Opener Assy, Luggage Door Lock
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GL,GRO | ¥6,400 | |
| 64640-22240-G0 note |
Opener Assy, Luggage Door Lock
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GRO,TOUS,TOUV | ¥6,400 | |
| 64640-22240-J0 note |
Opener Assy, Luggage Door Lock
1992-10 → 1994-09
ended
|
GX90,JZX90,91,LX90,SX90 | ¥6,400 | |
| 64640-22240-J0 note |
Opener Assy, Luggage Door Lock
1994-09 → 1996-09
ended
|
JZX90 TOUS,TOUV | ¥6,400 | |
| 64648 — Grommet, Luggage Door Lock Opener | ||||
| 64648-32010 |
Grommet, Luggage Door Lock Opener
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥110 | |
| 68950D — Stay Assy, Luggage Door, RH | ||||
| 64530-29055 |
Stay Assy, Luggage Door, RH
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GL,GRO | ¥9,400 | |
| 64530-29055 note |
Stay Assy, Luggage Door, RH
1993-10 → 1996-09
ended
|
JZX90 TOUS,TOUV | ¥9,400 | |
| 64530-29065 |
Stay Assy, Luggage Door, RH
1992-10 → 1996-09
ended
|
JZX90 TOUS,TOUV | ¥9,400 | |
| 68960A — Stay Assy, Luggage Door, LH | ||||
| 64530-29055 |
Stay Assy, Luggage Door, LH
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GL,GRO | ¥9,400 | |
| 64530-29055 note |
Stay Assy, Luggage Door, LH
1993-10 → 1996-09
ended
|
JZX90 TOUS,TOUV | ¥9,400 | |
| 64530-29065 |
Stay Assy, Luggage Door, LH
1992-10 → 1996-09
ended
|
JZX90 TOUS,TOUV | ¥9,400 | |
| 68961C — Bolt, Luggage Door Stay | ||||
| 68961-22040 |
Bolt, Luggage Door Stay
1992-10 → 1994-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥460 | |
| 68961-22040 |
Bolt, Luggage Door Stay
1994-09 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥460 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
