Toyota Mark 2

1992-10 → 1996-09 · chassis GX90,LX90,SX90,JZX9# · catalogue 311170 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

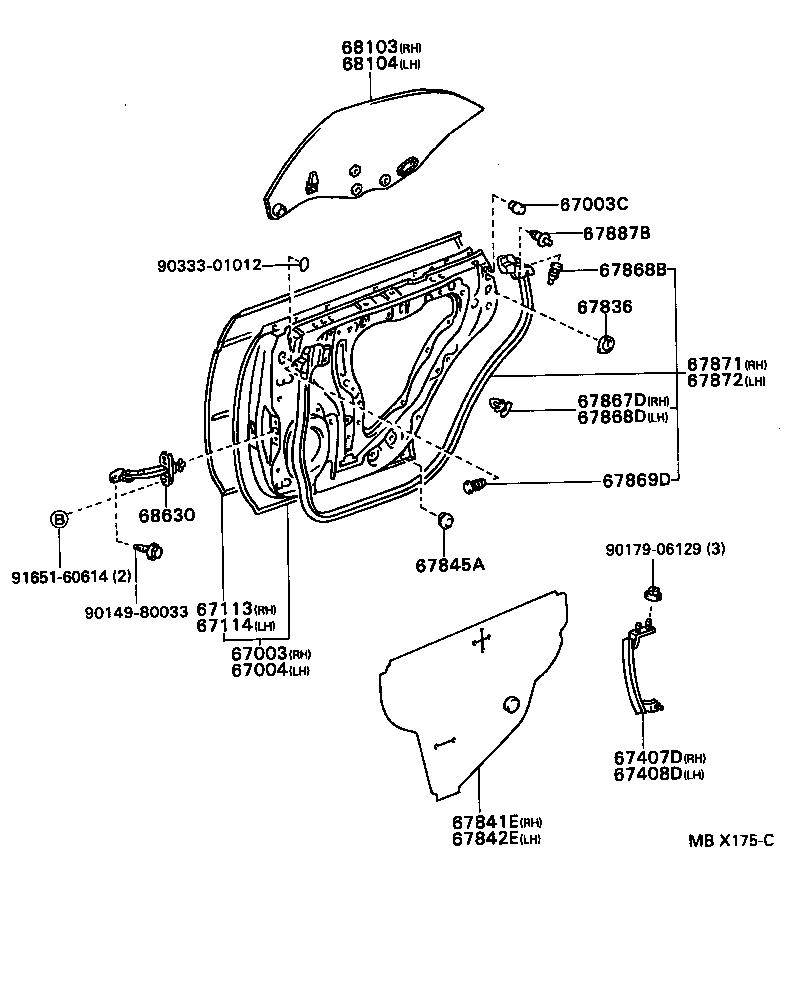

Exploded illustration MBX175C 68103 — GLASS SUB-ASSY, REAR DOOR, RH (4 parts) 68104 — GLASS SUB-ASSY, REAR DOOR, LH (4 parts) 67003C — CUSHION, REAR DOOR PANEL (1 parts) 67887B — CLIP(FOR REAR DOOR WEATHERSTRIP) (1 parts) 9033301012 — not listed in this catalogue 67868B — CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) (6 parts) 67836 — COVER, REAR DOOR LOCK CHILD PROTECTION, RH (1 parts) 67871 — WEATHERSTRIP, REAR DOOR, RH (1 parts) 67872 — WEATHERSTRIP, REAR DOOR, LH (1 parts) 67867D — RETAINER, REAR DOOR WEATHERSTRIP, RH (2 parts) 67868D — RETAINER, REAR DOOR WEATHERSTRIP, LH (2 parts) 67869D — CLIP, DOOR WEATHERSTRIP (1 parts) 68630 — CHECK ASSY, REAR DOOR (2 parts) 9017906129 — not listed in this catalogue 67845A — SUB-SHEET, REAR DOOR SERVICE HOLE (1 parts) 9165160614 — not listed in this catalogue 67113 — PANEL, REAR DOOR, OUTER RH (1 parts) 9014980033 — not listed in this catalogue 67114 — PANEL, REAR DOOR, OUTER LH (1 parts) 67003 — PANEL SUB-ASSY, REAR DOOR, RH (1 parts) 67004 — PANEL SUB-ASSY, REAR DOOR, LH (1 parts) 67407D — GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH (1 parts) 67408D — GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH (1 parts) 67841E — COVER, REAR DOOR SERVICE HOLE, RH (1 parts) 67842E — COVER, REAR DOOR SERVICE HOLE, LH (1 parts)
MBX175C · 21 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
35 parts on this figure
Part number Description Fitment Price
67003 — Panel Sub-assy, Rear Door, RH
67003-22260 Panel Sub-assy, Rear Door, RH
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥67,600
67003C — Cushion, Rear Door Panel
90541-09080 Cushion, Rear Door Panel
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥190
67004 — Panel Sub-assy, Rear Door, LH
67004-22290 Panel Sub-assy, Rear Door, LH
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥67,600
67113 — Panel, Rear Door, Outer RH
67113-22170 Panel, Rear Door, Outer RH
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥27,400
67114 — Panel, Rear Door, Outer LH
67114-22170 Panel, Rear Door, Outer LH
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥27,400
67407D — Guide Sub-assy, Rear Door Window, Rear RH
67407-22110 Guide Sub-assy, Rear Door Window, Rear RH
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥2,860
67408D — Guide Sub-assy, Rear Door Window, Rear LH
67408-22110 Guide Sub-assy, Rear Door Window, Rear LH
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥2,860
67836 — Cover, Rear Door Lock Child Protection, RH
67836-32010 Cover, Rear Door Lock Child Protection, RH
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥310
67841E — Cover, Rear Door Service Hole, RH
67841-22260 Cover, Rear Door Service Hole, RH
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥880
67842E — Cover, Rear Door Service Hole, LH
67842-22150 Cover, Rear Door Service Hole, LH
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥880
67845A — Sub-sheet, Rear Door Service Hole
67845-22060 Sub-sheet, Rear Door Service Hole
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥130
67867D — Retainer, Rear Door Weatherstrip, RH
67867-12150 Retainer, Rear Door Weatherstrip, RH
1994-12 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥100
67868-22020 Retainer, Rear Door Weatherstrip, RH
1992-10 → 1994-12 ended
GX90,JZX9#,LX90,SX90 ¥180
67868B — Clip, Door Glass Weatherstrip(FOR REAR DOOR)
67868-30030-01 note Clip, Door Glass Weatherstrip(FOR REAR DOOR)
1994-09 → 1996-09 ended
GX90,JZX9#,LX90,SX90 GD,GDG,GRO ¥200
67868-30030-01 note Clip, Door Glass Weatherstrip(FOR REAR DOOR)
1994-09 → 1996-09 ended
LX90,SX90 GL ¥200
67868-30030-01 note Clip, Door Glass Weatherstrip(FOR REAR DOOR)
1992-10 → 1996-09 ended
JZX90 TOUS,TOUV ¥200
67868-30030-01 note Clip, Door Glass Weatherstrip(FOR REAR DOOR)
1992-10 → 1994-09 ended
LX90,SX90 GL ¥200
67868-30030-01 note Clip, Door Glass Weatherstrip(FOR REAR DOOR)
1992-10 → 1994-09 ended
JZX93 ¥200
67868-30030-01 note Clip, Door Glass Weatherstrip(FOR REAR DOOR)
1992-10 → 1994-09 ended
GX90,JZX90,91,LX90,SX90 GD,GDG,GRO ¥200
67868D — Retainer, Rear Door Weatherstrip, LH
67867-12150 Retainer, Rear Door Weatherstrip, LH
1994-12 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥100
67868-22020 Retainer, Rear Door Weatherstrip, LH
1992-10 → 1994-12 ended
GX90,JZX9#,LX90,SX90 ¥180
67869D — Clip, Door Weatherstrip
67869-22030 Clip, Door Weatherstrip
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥160
67871 — Weatherstrip, Rear Door, RH
67871-22250 Weatherstrip, Rear Door, RH
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥5,200
67872 — Weatherstrip, Rear Door, LH
67872-22250 Weatherstrip, Rear Door, LH
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥5,200
67887B — Clip(FOR REAR DOOR WEATHERSTRIP)
67869-22050 Clip(FOR REAR DOOR WEATHERSTRIP)
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥240
68103 — Glass Sub-assy, Rear Door, RH
68103-22220 note Glass Sub-assy, Rear Door, RH
1992-10 → 1994-07 ended
GX90,JZX9#,LX90,SX90 ¥26,000
68103-22221 note Glass Sub-assy, Rear Door, RH
1994-07 → 1996-09 ended
GX90,JZX9#,LX90,SX90 —
68103-22230 note Glass Sub-assy, Rear Door, RH
1992-10 → 1994-07 ended
GX90,JZX9#,LX90,SX90 GD,GDG,GRO ¥29,400
68103-22231 note Glass Sub-assy, Rear Door, RH
1994-07 → 1996-09 ended
GX90,JZX9#,LX90,SX90 GD,GDG,GRO —
68104 — Glass Sub-assy, Rear Door, LH
68104-22200 note Glass Sub-assy, Rear Door, LH
1992-10 → 1994-07 ended
GX90,JZX9#,LX90,SX90 ¥26,000
68104-22201 note Glass Sub-assy, Rear Door, LH
1994-07 → 1996-09 ended
GX90,JZX9#,LX90,SX90 —
68104-22210 note Glass Sub-assy, Rear Door, LH
1992-10 → 1994-07 ended
GX90,JZX9#,LX90,SX90 GD,GDG,GRO ¥29,400
68104-22211 note Glass Sub-assy, Rear Door, LH
1994-07 → 1996-09 ended
GX90,JZX9#,LX90,SX90 GD,GDG,GRO —
68630 — Check Assy, Rear Door
68630-22080 note Check Assy, Rear Door
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥3,710
68640-22020 note Check Assy, Rear Door
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥3,710
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
