Toyota Mark 2

1992-10 → 1996-09 · chassis GX90,LX90,SX90,JZX9# · catalogue 311170 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

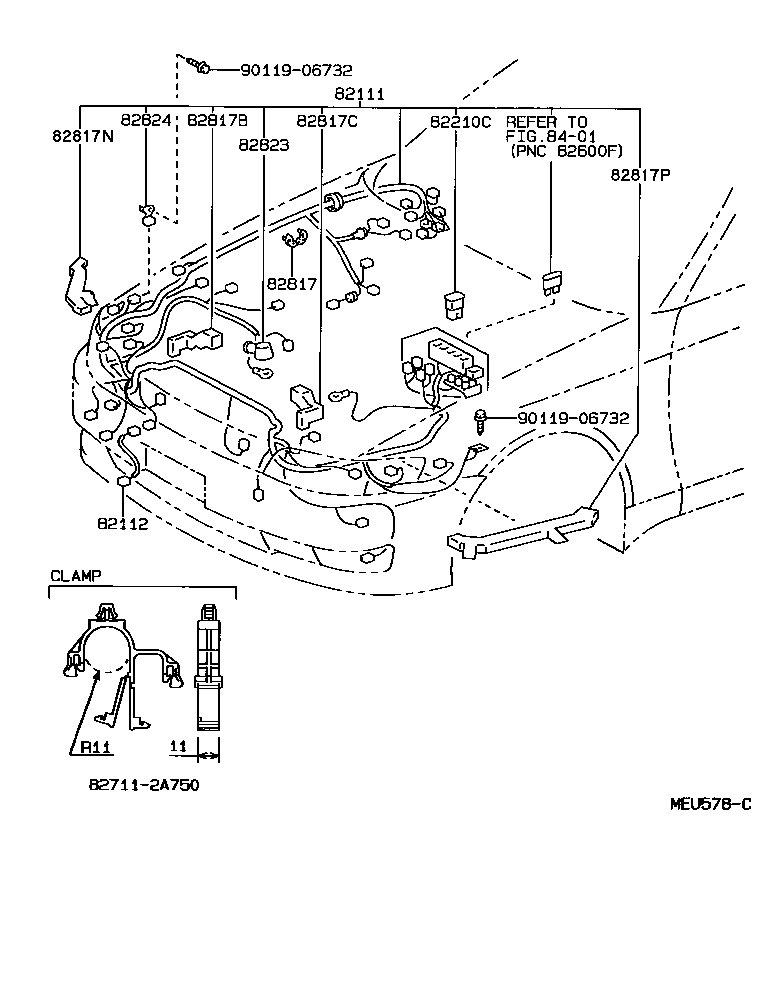

Exploded illustration MEU578C 9011906732 — not listed in this catalogue 82111 — WIRE, ENGINE ROOM MAIN (23 parts) 82824 — CONNECTOR, WIRING HARNESS (1 parts) 82817B — PROTECTOR, WIRING HARNESS, NO.3 (1 parts) 82817C — PROTECTOR, WIRING HARNESS, NO.4 (1 parts) 82210C — FUSIBLE LINK (14 parts) 82817N — PROTECTOR, WIRING HARNESS, NO.13 (1 parts) 8401 — not listed in this catalogue 82823 — CAP, TERMINAL, NO.1 (2 parts) 82817P — PROTECTOR, WIRING HARNESS, NO.14 (1 parts) 82817 — PROTECTOR, WIRING HARNESS, NO.1 (1 parts) 9011906732 — not listed in this catalogue 82112 — WIRE, ENGINE ROOM, NO.2 (2 parts) 827112A750 — not listed in this catalogue
MEU578C · 10 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
47 parts on this figure
Part number Description Fitment Price
82111 — Wire, Engine Room Main
82111-2A710 Wire, Engine Room Main
1992-10 → 1994-09 ended
JZX91 ¥111,000
82111-2A720 Wire, Engine Room Main
1992-10 → 1994-09 ended
JZX90 TOUV ¥111,000
82111-2A740 Wire, Engine Room Main
1992-10 → 1993-10 ended
JZX90 GD,GDG,TOUS ¥111,000
82111-2A740 note Wire, Engine Room Main
1993-10 → 1994-09 ended
JZX90 GD ¥111,000
82111-2A740 note Wire, Engine Room Main
1993-10 → 1994-09 ended
JZX90 TOUS ¥111,000
82111-2A740 Wire, Engine Room Main
1993-10 → 1994-09 ended
JZX93;JZX90 GDG ¥111,000
82111-2A750 Wire, Engine Room Main
1992-10 → 1994-09 ended
GX90 ¥45,000
82111-2A760 note Wire, Engine Room Main
1992-10 → 1994-09 ended
GX90 ¥51,200
82111-2A770 Wire, Engine Room Main
1992-10 → 1994-09 ended
SX90 ¥97,100
82111-2A780 Wire, Engine Room Main
1992-10 → 1994-09 ended
LX90 ¥97,100
82111-2C050 Wire, Engine Room Main
1993-10 → 1994-09 ended
JZX90 GD,TOUS ¥48,700
82111-2C070 note Wire, Engine Room Main
1994-09 → 1996-09 ended
JZX91 ¥105,000
82111-2C090 Wire, Engine Room Main
1994-09 → 1996-09 ended
JZX90 TOUV ¥92,500
82111-2C110 Wire, Engine Room Main
1994-09 → 1996-09 ended
JZX90 GD,TOUS ¥48,700
82111-2C130 note Wire, Engine Room Main
1994-09 → 1996-09 ended
JZX90 GDG ¥92,500
82111-2C150 Wire, Engine Room Main
1994-09 → 1996-09 ended
GX90 ¥42,800
82111-2C170 note Wire, Engine Room Main
1994-09 → 1996-09 ended
GX90 ¥48,700
82111-2C190 Wire, Engine Room Main
1994-09 → 1996-09 ended
SX90 ¥92,500
82111-2C210 Wire, Engine Room Main
1994-09 → 1996-09 ended
LX90 ¥92,500
82111-2C230 Wire, Engine Room Main
1994-09 → 1996-09 ended
JZX91 ¥105,000
82111-2C240 Wire, Engine Room Main
1994-09 → 1996-09 ended
JZX93;JZX90 GDG ¥92,500
82111-2C240 note Wire, Engine Room Main
1994-09 → 1996-09 ended
JZX90 TOUS ¥92,500
82111-2C240 note Wire, Engine Room Main
1994-09 → 1996-09 ended
JZX90 GD ¥92,500
82112 — Wire, Engine Room, NO.2
82112-22070 Wire, Engine Room, NO.2
1992-10 → 1996-09 ended
JZX9# GD,GDG,TOUS ¥510
82112-22080 Wire, Engine Room, NO.2
1992-10 → 1996-09 ended
SX90 ¥510
82210C — Fusible Link
90982-08188 note Fusible Link
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥710
90982-08188 note Fusible Link
1994-09 → 1996-09 ended
JZX9#,LX90 GD,GDG,GL,GRO,TOUS ¥710
90982-08189 note Fusible Link
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥440
90982-08190 note Fusible Link
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥750
90982-08202 note Fusible Link
1992-10 → 1996-09 ended
JZX9#,SX90 ¥700
90982-08202 note Fusible Link
1992-10 → 1996-09 ended
GX90 ¥700
90982-08202 note Fusible Link
1992-10 → 1996-09 ended
LX90 ¥700
90982-08223 note Fusible Link
1992-10 → 1996-09 ended
JZX91;JZX90 TOUV ¥710
90982-08227 note Fusible Link
1992-10 → 1996-09 ended
JZX9#,LX90,SX90 ¥440
90982-08227 note Fusible Link
1992-10 → 1996-09 ended
GX90 ¥440
90982-08227 note Fusible Link
1994-09 → 1996-09 ended
GX90 ¥440
90982-08270 note Fusible Link
1992-10 → 1993-06 ended
GX90 ¥680
90982-08270 note Fusible Link
1992-10 → 1996-09 ended
LX90,SX90 ¥680
90982-08271 note Fusible Link
1992-10 → 1996-09 ended
GX90,JZX9# ¥430
82817 — Protector, Wiring Harness, NO.1
82817-2A290 Protector, Wiring Harness, NO.1
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥390
82817B — Protector, Wiring Harness, NO.3
82817-2A260 Protector, Wiring Harness, NO.3
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥850
82817C — Protector, Wiring Harness, NO.4
82817-2A270 Protector, Wiring Harness, NO.4
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥850
82817N — Protector, Wiring Harness, NO.13
82817-2A250 Protector, Wiring Harness, NO.13
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥1,000
82817P — Protector, Wiring Harness, NO.14
82817-2A280 Protector, Wiring Harness, NO.14
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥1,590
82823 — Cap, Terminal, NO.1
82823-22070 Cap, Terminal, NO.1
1992-10 → 1996-09 ended
JZX9# ¥920
82823-22080 Cap, Terminal, NO.1
1992-10 → 1996-09 ended
GX90,LX90,SX90 ¥920
82824 — Connector, Wiring Harness
82824-22050 Connector, Wiring Harness
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥5,400
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
