Toyota Mark 2
1992-10 → 1996-09 · chassis GX90,LX90,SX90,JZX9# · catalogue 311170 · Japan
Discontinued model
Data version 1997-06

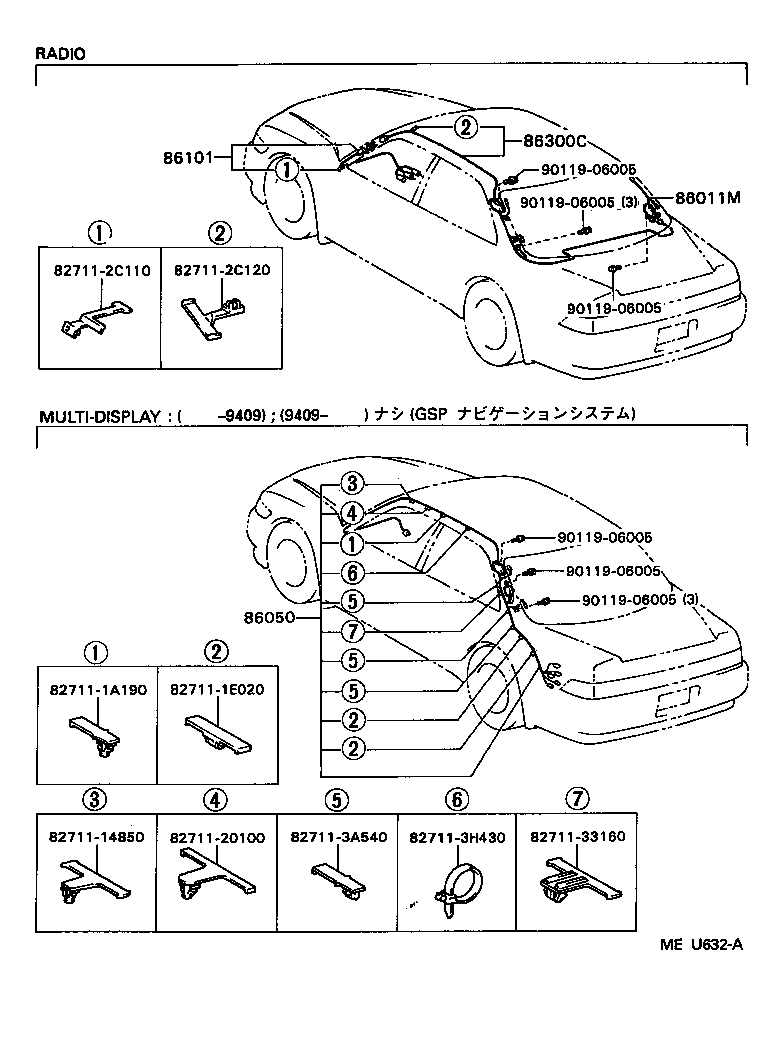

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86011M — Filter, Noise | ||||
| 90980-05262 note |
Filter, Noise
1995-04 → 1995-08
ended
|
JZX90 GD | ¥5,800 | |
| 90980-05262 note |
Filter, Noise
1995-09 → 1995-11
ended
|
JZX90,91 GDG,TOUV | ¥5,800 | |
| 90980-05262 |
Filter, Noise
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥5,800 | |
| 90980-05263 note |
Filter, Noise
1993-10 → 1994-09
ended
|
JZX90,91 GD,GDG | ¥5,800 | |
| 90980-05263 note |
Filter, Noise
1992-10 → 1993-10
ended
|
JZX9# GDG | ¥5,800 | |
| 90980-05263 note |
Filter, Noise
1995-11 → 1996-09
ended
|
JZX90,91 GDG | ¥5,800 | |
| 90980-05263 note |
Filter, Noise
1995-11 → 1996-09
ended
|
GX90,JZX90 GD,TOUS,TOUV | ¥5,800 | |
| 90980-05263 note |
Filter, Noise
1995-09 → 1995-11
ended
|
JZX90,91 GDG | ¥5,800 | |
| 90980-05263 note |
Filter, Noise
1994-09 → 1995-09
ended
|
JZX90 GD | ¥5,800 | |
| 90980-05263 note |
Filter, Noise
1994-09 → 1995-09
ended
|
JZX90,91 GDG | ¥5,800 | |
| 90980-05263 note |
Filter, Noise
1995-09 → 1995-11
ended
|
GX90,JZX90 GD,TOUS,TOUV | ¥5,800 | |
| 86050 — Antenna Assy, Television | ||||
| 86050-22020 note |
Antenna Assy, Television
1992-10 → 1993-10
ended
|
JZX9# GDG | ¥25,100 | |
| 86050-22020 note |
Antenna Assy, Television
1993-10 → 1994-09
ended
|
JZX90,91 GD,GDG | ¥25,100 | |
| 86050-22030 note |
Antenna Assy, Television
1992-10 → 1993-10
ended
|
JZX9# GDG | ¥25,100 | |
| 86050-22030 note |
Antenna Assy, Television
1993-10 → 1994-09
ended
|
JZX90,91 GD,GDG | ¥25,100 | |
| 86050-22040 note |
Antenna Assy, Television
1992-10 → 1993-10
ended
|
JZX9# GDG | ¥25,100 | |
| 86050-22040 note |
Antenna Assy, Television
1993-10 → 1995-09
ended
|
JZX90,91 GD,GDG | ¥25,100 | |
| 86050-22130 note |
Antenna Assy, Television
1994-09 → 1995-09
ended
|
JZX90,91 GD,GDG | ¥19,700 | |
| 86050-22130 note |
Antenna Assy, Television
1994-09 → 1995-09
ended
|
JZX90,91 GD,GDG | ¥19,700 | |
| 86050-22140 note |
Antenna Assy, Television
1994-09 → 1995-09
ended
|
JZX90,91 GD,GDG | ¥19,700 | |
| 86050-22190 note |
Antenna Assy, Television
1995-09 → 1996-09
ended
|
GX90,JZX90 GD,TOUS,TOUV | ¥19,700 | |
| 86050-22190 note |
Antenna Assy, Television
1995-09 → 1996-09
ended
|
JZX90,91 GDG | ¥19,700 | |
| 86050-22200 note |
Antenna Assy, Television
1995-09 → 1996-09
ended
|
GX90,JZX90 GD,TOUS,TOUV | ¥19,700 | |
| 86050-22200 note |
Antenna Assy, Television
1995-09 → 1996-09
ended
|
JZX90,91 GDG | ¥19,700 | |
| 86050-22210 note |
Antenna Assy, Television
1995-09 → 1996-09
ended
|
JZX90,91 GDG | ¥19,700 | |
| 86050-22210 note |
Antenna Assy, Television
1995-09 → 1996-09
ended
|
GX90,JZX90 GD,TOUS,TOUV | ¥19,700 | |
| 86050-22220 note |
Antenna Assy, Television
1995-09 → 1996-09
ended
|
JZX90,91 GDG | ¥19,700 | |
| 86050-22220 note |
Antenna Assy, Television
1995-09 → 1996-09
ended
|
GX90,JZX90 GD,TOUS,TOUV | ¥19,700 | |
| 86101 — Cord Sub-assy, Antenna | ||||
| 86101-22220 |
Cord Sub-assy, Antenna
1992-10 → 1996-09
ended
|
LX90,SX90 GL | ¥4,530 | |
| 86101-22250 note |
Cord Sub-assy, Antenna
1995-04 → 1995-08
ended
|
JZX90 GD | ¥4,530 | |
| 86101-22250 note |
Cord Sub-assy, Antenna
1995-09 → 1995-11
ended
|
JZX90,91 GDG,TOUV | ¥4,530 | |
| 86101-22250 |
Cord Sub-assy, Antenna
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GRO,TOUS,TOUV | ¥4,530 | |
| 86101-22260 note |
Cord Sub-assy, Antenna
1995-09 → 1996-09
ended
|
JZX90,91 GDG | ¥13,500 | |
| 86101-22260 note |
Cord Sub-assy, Antenna
1995-09 → 1996-09
ended
|
GX90,JZX90 GD,TOUS,TOUV | ¥13,500 | |
| 86101-22270 note |
Cord Sub-assy, Antenna
1995-09 → 1996-09
ended
|
GX90,JZX90 GD,TOUS,TOUV | ¥12,100 | |
| 86101-22270 note |
Cord Sub-assy, Antenna
1995-09 → 1996-09
ended
|
JZX90,91 GDG | ¥12,100 | |
| 86300C — Antenna Assy, Amplifier, NO.2 | ||||
| 86300-22440 |
Antenna Assy, Amplifier, NO.2
1992-10 → 1996-09
ended
|
LX90,SX90 GL | ¥19,700 | |
| 86300-22450 |
Antenna Assy, Amplifier, NO.2
1992-10 → 1994-09
ended
|
JZX93;GX90,JZX90,LX90,SX90 GD,GRO,TOUS,TOUV | ¥19,700 | |
| 86300-22450 |
Antenna Assy, Amplifier, NO.2
1994-09 → 1996-09
ended
|
JZX93;GX90,JZX90,LX90,SX90 GD,GRO,TOUS | ¥19,700 | |
| 86300-22460 note |
Antenna Assy, Amplifier, NO.2
1993-10 → 1993-12
ended
|
JZX90 GD | ¥19,700 | |
| 86300-22460 |
Antenna Assy, Amplifier, NO.2
1992-10 → 1994-09
ended
|
JZX90,91 GDG | ¥19,700 | |
| 86300-22460 note |
Antenna Assy, Amplifier, NO.2
1993-10 → 1994-09
ended
|
GX90 | ¥19,700 | |
| 86300-22460 note |
Antenna Assy, Amplifier, NO.2
1993-04 → 1993-09
ended
|
GX90 ATM | ¥19,700 | |
| 86300-22460 |
Antenna Assy, Amplifier, NO.2
1994-09 → 1996-09
ended
|
JZX90,91 GDG,TOUV | ¥19,700 | |
| 86300-22460 note |
Antenna Assy, Amplifier, NO.2
1994-12 → 1996-09
ended
|
GX90 ATM | ¥19,700 | |
| 86300-22460 note |
Antenna Assy, Amplifier, NO.2
1995-04 → 1996-09
ended
|
JZX90 GD | ¥19,700 | |
| 86300-22470 note |
Antenna Assy, Amplifier, NO.2
1993-10 → 1994-09
ended
|
JZX93;GX90,JZX90 GD,TOUS,TOUV | ¥19,700 | |
| 86300-22470 note |
Antenna Assy, Amplifier, NO.2
1992-10 → 1993-10
ended
|
JZX90 TOUS,TOUV | ¥19,700 | |
| 86300-22470 note |
Antenna Assy, Amplifier, NO.2
1994-09 → 1996-09
ended
|
JZX93;GX90,JZX90 GD,TOUS | ¥19,700 | |
| 86300-22480 note |
Antenna Assy, Amplifier, NO.2
1992-10 → 1994-09
ended
|
JZX90,91 GDG | ¥19,700 | |
| 86300-22480 note |
Antenna Assy, Amplifier, NO.2
1994-09 → 1996-09
ended
|
JZX90,91 GDG,TOUV | ¥19,700 | |
| 86300-22480 note |
Antenna Assy, Amplifier, NO.2
1995-04 → 1996-09
ended
|
JZX90 GD | ¥19,700 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
