Toyota Mark 2
1992-10 → 1996-09 · chassis GX90,LX90,SX90,JZX9# · catalogue 311170 · Japan
Discontinued model
Data version 1997-06

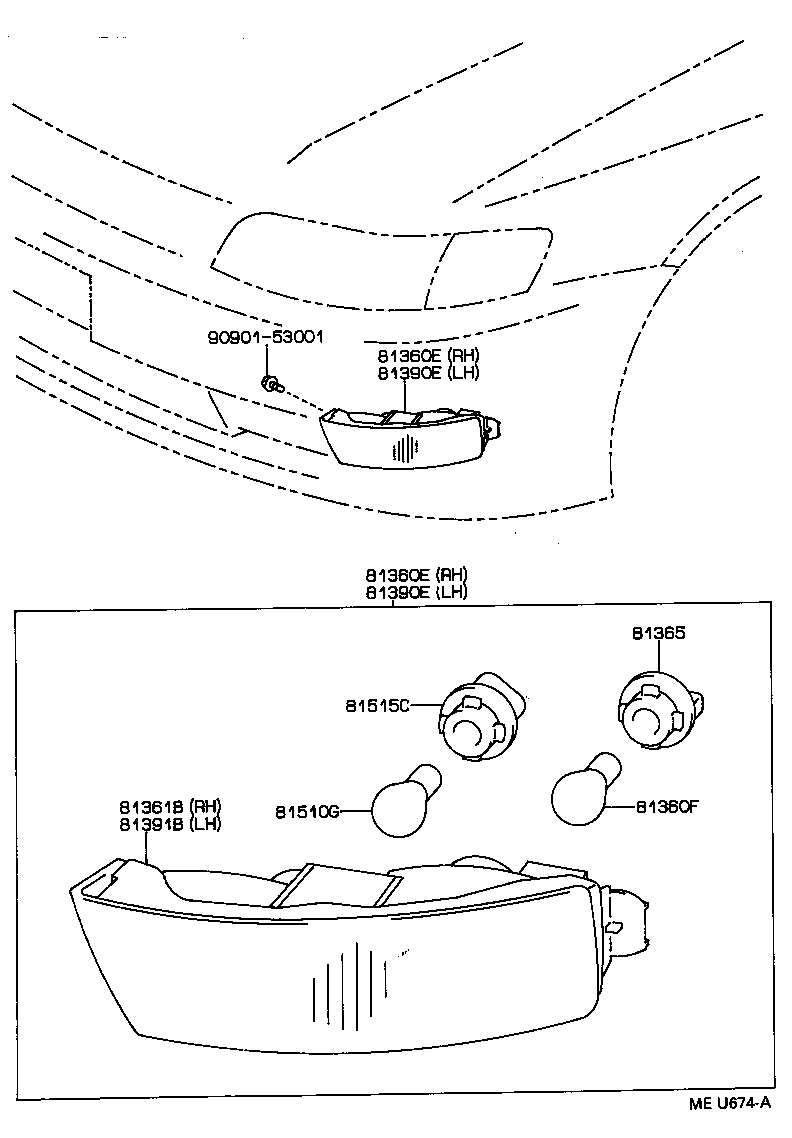

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81360E — Lamp Assy, Cornering, RH | ||||
| 81360-22010 |
Lamp Assy, Cornering, RH
1992-10 → 1994-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥8,600 | |
| 81360-22020 |
Lamp Assy, Cornering, RH
1994-09 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥8,600 | |
| 81360F — Bulb, Cornering Lamp | ||||
| 90981-13037 note |
Bulb, Cornering Lamp
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥460 | |
| 81361B — Lens & Body, Cornering Lamp, RH | ||||
| 81361-22010 |
Lens & Body, Cornering Lamp, RH
1992-10 → 1994-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥6,100 | |
| 81361-22020 |
Lens & Body, Cornering Lamp, RH
1994-09 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥5,700 | |
| 81365 — Socket & Wire, Cornering Lamp | ||||
| 90075-99071 |
Socket & Wire, Cornering Lamp
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥990 | |
| 81390E — Lamp Assy, Cornering, LH | ||||
| 81390-22010 |
Lamp Assy, Cornering, LH
1992-10 → 1994-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥8,600 | |
| 81390-22020 |
Lamp Assy, Cornering, LH
1994-09 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥8,600 | |
| 81391B — Lens & Body, Cornering Lamp, LH | ||||
| 81391-22010 |
Lens & Body, Cornering Lamp, LH
1992-10 → 1994-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥6,100 | |
| 81391-22020 |
Lens & Body, Cornering Lamp, LH
1994-09 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥5,700 | |
| 81510G — Bulb (FOR FRONT TURN SIGNAL) | ||||
| 99132-11210 |
Bulb (FOR FRONT TURN SIGNAL)
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥170 | |
| 81515C — Socket, Front Turn Signal Lamp | ||||
| 90075-99099 |
Socket, Front Turn Signal Lamp
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥990 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
