Toyota Mark 2
1992-10 → 1996-09 · chassis GX90,LX90,SX90,JZX9# · catalogue 311170 · Japan
Discontinued model
Data version 1997-06

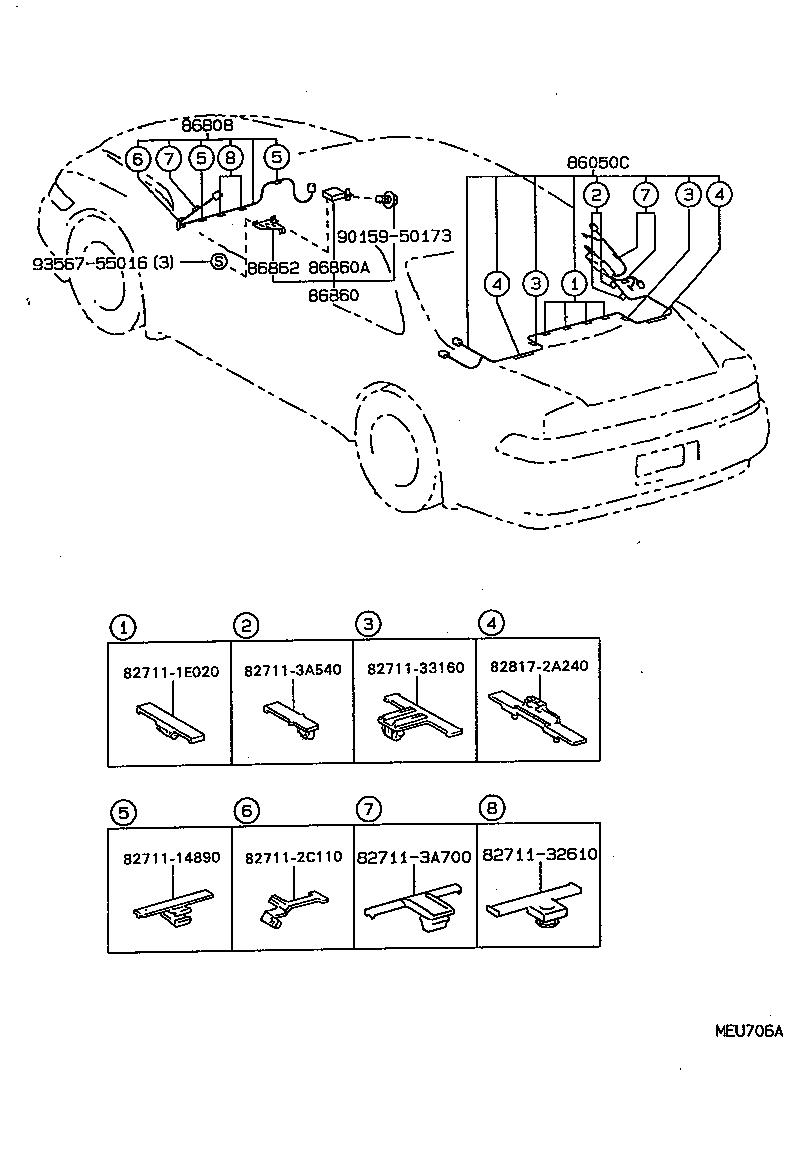

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86050C — Antenna Assy, Television | ||||
| 86050-22010 |
Antenna Assy, Television
1993-10 → 1995-09
ended
|
JZX90,91 GD,GDG | ¥19,700 | |
| 86050-22010 |
Antenna Assy, Television
1995-09 → 1996-09
ended
|
GX90,JZX90,91 | ¥19,700 | |
| 86050-22010 |
Antenna Assy, Television
1992-10 → 1993-10
ended
|
JZX9# GDG | ¥19,700 | |
| 86808 — Cord Sub-assy, Navigation Antenna, NO.1 | ||||
| 86808-22010 |
Cord Sub-assy, Navigation Antenna, NO.1
1992-10 → 1993-10
ended
|
JZX9# GDG | ¥31,100 | |
| 86808-22010 |
Cord Sub-assy, Navigation Antenna, NO.1
1993-10 → 1995-09
ended
|
JZX90,91 GD,GDG | ¥31,100 | |
| 86860 — Antenna Assy, Navigation | ||||
| 86860-22010 note |
Antenna Assy, Navigation
1992-10 → 1993-10
ended
|
JZX9# GDG | ¥64,500 | |
| 86860-22010 |
Antenna Assy, Navigation
1995-09 → 1996-09
ended
|
GX90,JZX90,91 | ¥64,500 | |
| 86860-22010 note |
Antenna Assy, Navigation
1993-10 → 1994-09
ended
|
JZX90,91 GD,GDG | ¥64,500 | |
| 86860-22010 |
Antenna Assy, Navigation
1994-09 → 1995-09
ended
|
JZX90,91 GD,GDG | ¥64,500 | |
| 86860-22020 |
Antenna Assy, Navigation
1993-10 → 1994-09
ended
|
JZX90,91 GD,GDG | ¥64,500 | |
| 86860-22020 |
Antenna Assy, Navigation
1992-10 → 1993-10
ended
|
JZX9# GDG | ¥64,500 | |
| 86860A — Antenna, Navigation | ||||
| 86861-22010 |
Antenna, Navigation
1992-10 → 1993-10
ended
|
JZX9# GDG | ¥36,900 | |
| 86861-22010 |
Antenna, Navigation
1993-10 → 1995-09
ended
|
JZX90,91 GD,GDG | ¥36,900 | |
| 86861-22010 |
Antenna, Navigation
1995-09 → 1996-09
ended
|
GX90,JZX90,91 | ¥36,900 | |
| 86862 — Bracket, Navigation Antenna | ||||
| 86862-22010 |
Bracket, Navigation Antenna
1992-10 → 1993-10
ended
|
JZX9# GDG | ¥800 | |
| 86862-22010 |
Bracket, Navigation Antenna
1993-10 → 1995-09
ended
|
JZX90,91 GD,GDG | ¥800 | |
| 86862-22010 |
Bracket, Navigation Antenna
1995-09 → 1996-09
ended
|
GX90,JZX90,91 | ¥800 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
