Toyota Mark 2
1992-10 → 1996-09 · chassis GX90,LX90,SX90,JZX9# · catalogue 311170 · Japan
Discontinued model
Data version 1997-06

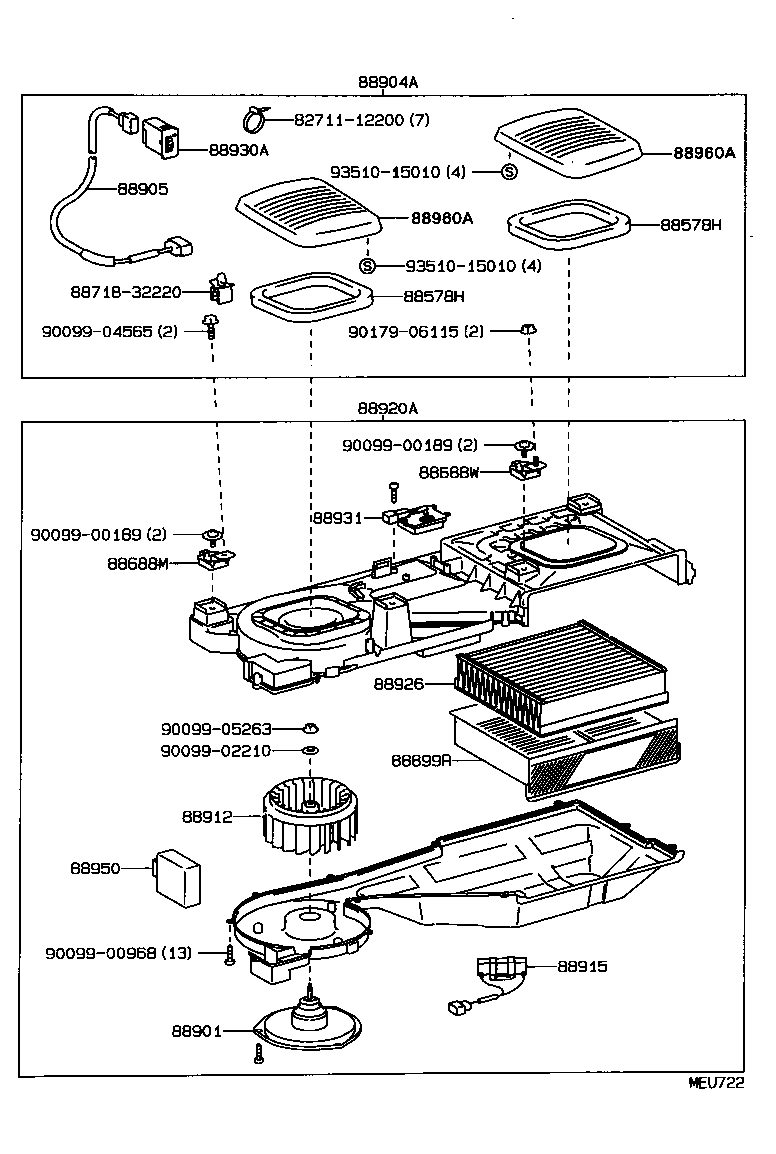

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88578H — Packing, Air Purifier, NO.2 | ||||
| 88578-22170 |
Packing, Air Purifier, NO.2
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | — | |
| 88688M — Bracket, Air Purifier, NO.2 | ||||
| 88688-2A050 |
Bracket, Air Purifier, NO.2
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | — | |
| 88688W — Bracket, Air Purifier, NO.1 | ||||
| 88688-2A040 |
Bracket, Air Purifier, NO.1
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | — | |
| 88899R — Frame, Air Purifier | ||||
| 88899-50011 |
Frame, Air Purifier
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | — | |
| 88901 — Motor Sub-assy, Air Purifier | ||||
| 88901-22310 |
Motor Sub-assy, Air Purifier
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | — | |
| 88904A — Accessory Sub-assy, Air Purifire | ||||
| 88904-22310-E0 note |
Accessory Sub-assy, Air Purifire
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GL,GRO | — | |
| 88904-22310-G0 note |
Accessory Sub-assy, Air Purifire
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GRO,TOUS,TOUV | — | |
| 88904-22310-J0 note |
Accessory Sub-assy, Air Purifire
1992-10 → 1994-09
ended
|
GX90,JZX90,91,LX90,SX90 | — | |
| 88904-22310-J0 note |
Accessory Sub-assy, Air Purifire
1994-09 → 1996-09
ended
|
JZX90 TOUS,TOUV | — | |
| 88905 — Wire Sub-assy, Air Purifier, NO.1 | ||||
| 88905-22310 |
Wire Sub-assy, Air Purifier, NO.1
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | — | |
| 88912 — Fan, Air Purifier | ||||
| 88912-22310 |
Fan, Air Purifier
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | — | |
| 88915 — Resistor, Air Purifier | ||||
| 88915-22310 |
Resistor, Air Purifier
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | — | |
| 88920A — Purifier Assy, Air | ||||
| 88920-22310 |
Purifier Assy, Air
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | — | |
| 88926 — Filter, Air Purifier | ||||
| 88926-50011 |
Filter, Air Purifier
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥5,600 | |
| 88930A — Switch Assy, Air Purifier | ||||
| 88930-22310 |
Switch Assy, Air Purifier
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥3,400 | |
| 88931 — Sensor, Smoke | ||||
| 88931-33010 |
Sensor, Smoke
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | — | |
| 88950 — Amplifier Assy, Air Purifier | ||||
| 88950-22310 |
Amplifier Assy, Air Purifier
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 | ¥7,800 | |
| 88960A — Grille Assy, Air Purifier | ||||
| 88960-22300-E0 note |
Grille Assy, Air Purifier
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GL,GRO | — | |
| 88960-22300-G0 note |
Grille Assy, Air Purifier
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GRO,TOUS,TOUV | — | |
| 88960-22300-J0 note |
Grille Assy, Air Purifier
1992-10 → 1994-09
ended
|
GX90,JZX90,91,LX90,SX90 | — | |
| 88960-22300-J0 note |
Grille Assy, Air Purifier
1994-09 → 1996-09
ended
|
JZX90 TOUS,TOUV | — | |
| 88960-22310-E0 note |
Grille Assy, Air Purifier
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GL,GRO | — | |
| 88960-22310-G0 note |
Grille Assy, Air Purifier
1992-10 → 1996-09
ended
|
GX90,JZX9#,LX90,SX90 GD,GDG,GRO,TOUS,TOUV | — | |
| 88960-22310-J0 note |
Grille Assy, Air Purifier
1992-10 → 1994-09
ended
|
GX90,JZX90,91,LX90,SX90 | — | |
| 88960-22310-J0 note |
Grille Assy, Air Purifier
1994-09 → 1996-09
ended
|
JZX90 TOUS,TOUV | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
