Toyota Mark 2

1992-10 → 1996-09 · chassis GX90,LX90,SX90,JZX9# · catalogue 311170 · Japan

Discontinued model Data version 1997-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

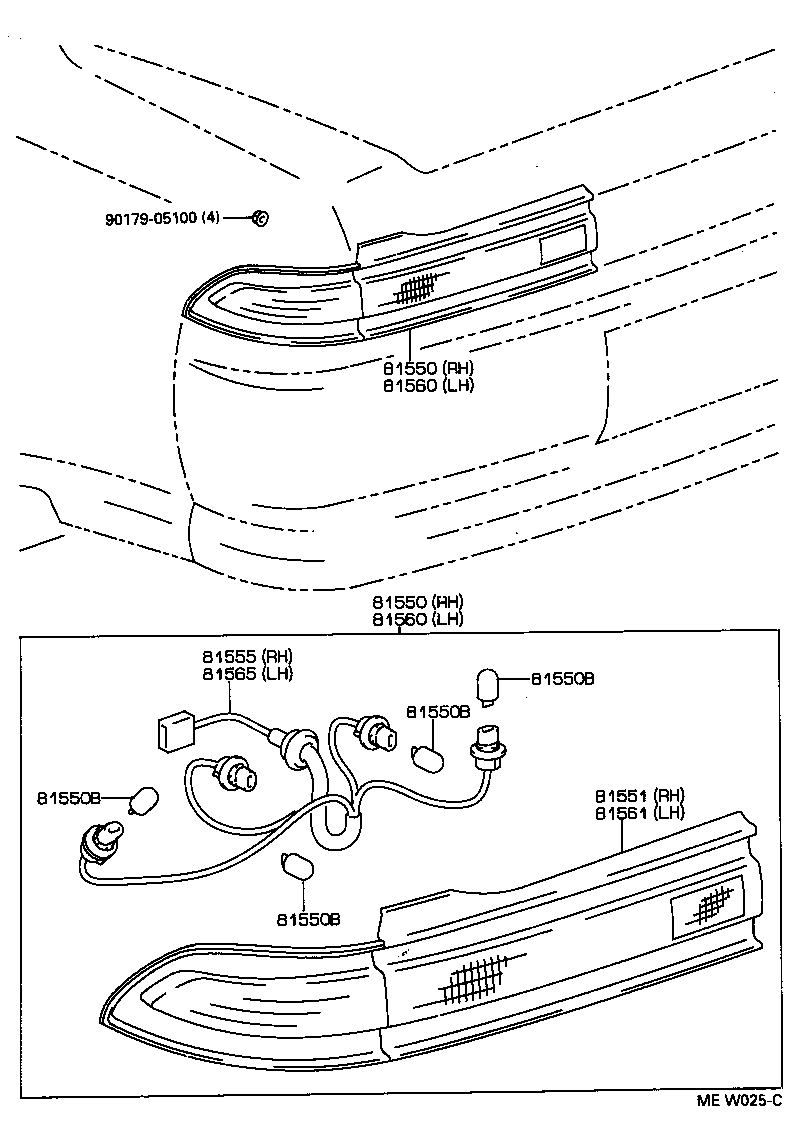

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

30 parts on this figure

Part number	Description	Fitment	Price
81550 — Lamp Assy, Rear Combination, RH
81550-22740 note	Lamp Assy, Rear Combination, RH 1992-12 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥31,200
81550-22740	Lamp Assy, Rear Combination, RH 1992-10 → 1992-12 ended	GX90,JZX9#,LX90,SX90	¥31,200
81550-22750 note	Lamp Assy, Rear Combination, RH 1992-12 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥31,200
81550-22800	Lamp Assy, Rear Combination, RH 1994-09 → 1996-09 ended	GX90,JZX9#,LX90,SX90	¥30,600
81550B — Bulb(FOR REAR COMBINATION LAMP)
90981-11042 note	Bulb(FOR REAR COMBINATION LAMP) 1992-10 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥220
90981-11042 note	Bulb(FOR REAR COMBINATION LAMP) 1994-09 → 1996-09 ended	GX90,JZX9#,LX90,SX90	¥220
90981-11043 note	Bulb(FOR REAR COMBINATION LAMP) 1992-10 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥230
90981-11043 note	Bulb(FOR REAR COMBINATION LAMP) 1994-09 → 1996-09 ended	GX90,JZX9#,LX90,SX90	¥230
90981-13050 note	Bulb(FOR REAR COMBINATION LAMP) 1992-10 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥220
90981-13051 note	Bulb(FOR REAR COMBINATION LAMP) 1992-10 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥230
81551 — Lens, Rear Combination Lamp, RH
81551-22740	Lens, Rear Combination Lamp, RH 1992-10 → 1992-12 ended	GX90,JZX9#,LX90,SX90	¥27,500
81551-22740 note	Lens, Rear Combination Lamp, RH 1992-12 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥27,500
81551-22750 note	Lens, Rear Combination Lamp, RH 1992-12 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥27,500
81551-22800	Lens, Rear Combination Lamp, RH 1994-09 → 1996-09 ended	GX90,JZX9#,LX90,SX90	¥26,000
81555 — Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555-22740 note	Socket & Wire Sub-assy, Rear Combination Lamp, RH 1992-12 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥2,910
81555-22740	Socket & Wire Sub-assy, Rear Combination Lamp, RH 1992-10 → 1992-12 ended	GX90,JZX9#,LX90,SX90	¥2,910
81555-22750 note	Socket & Wire Sub-assy, Rear Combination Lamp, RH 1992-12 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥2,910
81555-22800	Socket & Wire Sub-assy, Rear Combination Lamp, RH 1994-09 → 1996-09 ended	GX90,JZX9#,LX90,SX90	¥2,900
81560 — Lamp Assy, Rear Combination, LH
81560-22740	Lamp Assy, Rear Combination, LH 1992-10 → 1992-12 ended	GX90,JZX9#,LX90,SX90	¥31,200
81560-22740 note	Lamp Assy, Rear Combination, LH 1992-12 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥31,200
81560-22750 note	Lamp Assy, Rear Combination, LH 1992-12 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥31,200
81560-22800	Lamp Assy, Rear Combination, LH 1994-09 → 1996-09 ended	GX90,JZX9#,LX90,SX90	¥30,600
81561 — Lens, Rear Combination Lamp, LH
81561-22740	Lens, Rear Combination Lamp, LH 1992-10 → 1992-12 ended	GX90,JZX9#,LX90,SX90	¥27,500
81561-22740 note	Lens, Rear Combination Lamp, LH 1992-12 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥27,500
81561-22750 note	Lens, Rear Combination Lamp, LH 1992-12 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥27,500
81561-22800	Lens, Rear Combination Lamp, LH 1994-09 → 1996-09 ended	GX90,JZX9#,LX90,SX90	¥26,000
81565 — Socket & Wire Sub-assy, Rear Combination Lamp, LH
81555-22740	Socket & Wire Sub-assy, Rear Combination Lamp, LH 1992-10 → 1992-12 ended	GX90,JZX9#,LX90,SX90	¥2,910
81555-22740 note	Socket & Wire Sub-assy, Rear Combination Lamp, LH 1992-12 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥2,910
81555-22750 note	Socket & Wire Sub-assy, Rear Combination Lamp, LH 1992-12 → 1994-09 ended	GX90,JZX9#,LX90,SX90	¥2,910
81555-22800	Socket & Wire Sub-assy, Rear Combination Lamp, LH 1994-09 → 1996-09 ended	GX90,JZX9#,LX90,SX90	¥2,900

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
