Toyota Mark 2

1992-10 → 1996-09 · chassis GX90,LX90,SX90,JZX9# · catalogue 311170 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

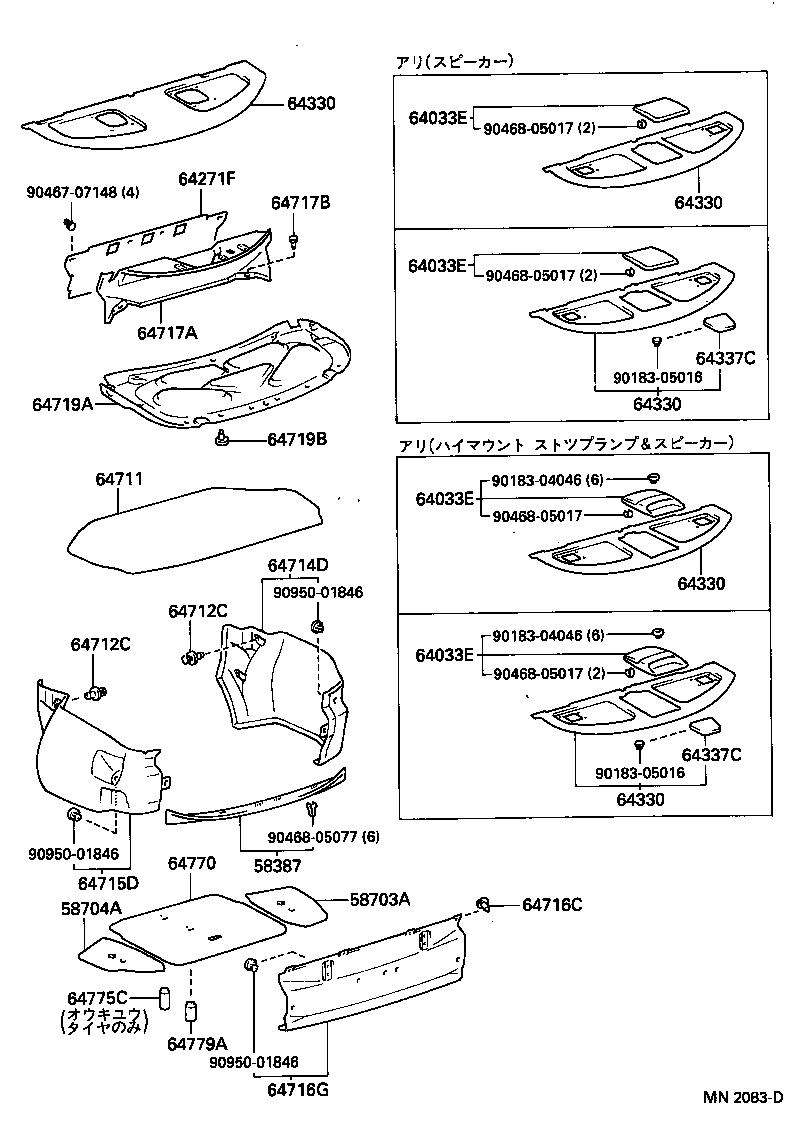

Exploded illustration MN2083D 64330 — PANEL ASSY, PACKAGE TRAY TRIM (93 parts) 64033E — GRILLE SUB-ASSY, REAR SPEAKER (56 parts) 9046805017 — not listed in this catalogue 64271F — TRIM, ROOM PARTITION (1 parts) 9046707148 — not listed in this catalogue 64717B — CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) (6 parts) 64330 — PANEL ASSY, PACKAGE TRAY TRIM (93 parts) 64033E — GRILLE SUB-ASSY, REAR SPEAKER (56 parts) 9046805017 — not listed in this catalogue 64717A — COVER, LUGGAGE COMPARTMENT TRIM, FRONT (6 parts) 64337C — GARNISH, PACKAGE TRAY TRIM (6 parts) 9018305016 — not listed in this catalogue 64330 — PANEL ASSY, PACKAGE TRAY TRIM (93 parts) 64719A — COVER, LUGGAGE COMPARTMENT DOOR (8 parts) 64719B — CLIP(FOR LUGGAGE COMPARTMENT DOOR) (8 parts) 64711 — MAT, LUGGAGE COMPARTMENT FLOOR (9 parts) 9018304046 — not listed in this catalogue 64033E — GRILLE SUB-ASSY, REAR SPEAKER (56 parts) 9046805017 — not listed in this catalogue 64714D — COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH (6 parts) 64330 — PANEL ASSY, PACKAGE TRAY TRIM (93 parts) 9095001846 — not listed in this catalogue 64712C — CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) (9 parts) 9018304046 — not listed in this catalogue 64712C — CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) (9 parts) 64033E — GRILLE SUB-ASSY, REAR SPEAKER (56 parts) 9046805017 — not listed in this catalogue 64337C — GARNISH, PACKAGE TRAY TRIM (6 parts) 9018305016 — not listed in this catalogue 64330 — PANEL ASSY, PACKAGE TRAY TRIM (93 parts) 9046805077 — not listed in this catalogue 9095001846 — not listed in this catalogue 64770 — COVER ASSY, SPARE WHEEL (12 parts) 58387 — PLATE, REAR FLOOR FINISH (6 parts) 64715D — COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH (9 parts) 58703A — COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH (2 parts) 64716C — CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) (9 parts) 58704A — COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH (1 parts) 64775C — SUPPORT, SPARE WHEEL COVER (1 parts) 64779A — STOPPER, SPARE WHEEL COVER (2 parts) 9095001846 — not listed in this catalogue 64716G — COVER, LUGGAGE COMPARTMENT TRIM, REAR (6 parts)
MN2083D · 29 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
256 parts on this figure
Part number Description Fitment Price
58387 — Plate, Rear Floor Finish
58387-22020-C0 note Plate, Rear Floor Finish
1992-10 → 1994-09 ended
LX90,SX90 GL ¥4,920
58387-22020-C0 note Plate, Rear Floor Finish
1992-10 → 1994-09 ended
GX90,JZX90,91,LX90,SX90 GD,GDG,GRO ¥4,920
58387-22020-C0 note Plate, Rear Floor Finish
1992-10 → 1996-09 ended
JZX90 TOUS,TOUV ¥4,920
58387-22020-C0 note Plate, Rear Floor Finish
1994-09 → 1996-09 ended
GX90,JZX9#,LX90,SX90 GD,GDG,GRO ¥4,920
58387-22020-C0 note Plate, Rear Floor Finish
1994-09 → 1996-09 ended
LX90,SX90 GL ¥4,920
58387-22020-C0 note Plate, Rear Floor Finish
1992-10 → 1994-09 ended
JZX93 ¥4,920
58703A — Cover Sub-assy, Luggage Compartment Side, RH
58703-22090 Cover Sub-assy, Luggage Compartment Side, RH
1992-10 → 1994-09 ended
GX90,JZX9#,LX90,SX90 ¥3,330
58703-22091 Cover Sub-assy, Luggage Compartment Side, RH
1994-09 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥3,330
58704A — Cover Sub-assy, Luggage Compartment Side, LH
58704-22080 Cover Sub-assy, Luggage Compartment Side, LH
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥3,330
64033E — Grille Sub-assy, Rear Speaker
64033-22090-E1 note Grille Sub-assy, Rear Speaker
1993-10 → 1994-09 ended
GX90,JZX93 ¥5,300
64033-22090-E1 note Grille Sub-assy, Rear Speaker
1992-10 → 1996-09 ended
JZX91 ¥5,300
64033-22090-E1 note Grille Sub-assy, Rear Speaker
1994-09 → 1995-09 ended
JZX93 GDG ¥5,300
64033-22090-E1 note Grille Sub-assy, Rear Speaker
1994-09 → 1995-09 ended
JZX90 GD,GDG ¥5,300
64033-22090-E1 note Grille Sub-assy, Rear Speaker
1995-09 → 1996-09 ended
JZX90 GDG ¥5,300
64033-22090-E1 note Grille Sub-assy, Rear Speaker
1995-09 → 1996-09 ended
JZX90 GD;JZX93 GDG ¥5,300
64033-22090-E1 note Grille Sub-assy, Rear Speaker
1993-10 → 1994-09 ended
JZX90 GD,GDG ¥5,300
64033-22090-E1 note Grille Sub-assy, Rear Speaker
1992-10 → 1993-10 ended
GX90,JZX90 GD ¥5,300
64033-22090-E1 note Grille Sub-assy, Rear Speaker
1992-10 → 1993-10 ended
JZX90 GDG ¥5,300
64033-22090-G1 note Grille Sub-assy, Rear Speaker
1993-10 → 1994-09 ended
GX90,JZX93 ¥5,300
64033-22090-G1 note Grille Sub-assy, Rear Speaker
1992-10 → 1993-10 ended
JZX90 GDG ¥5,300
64033-22090-G1 note Grille Sub-assy, Rear Speaker
1992-10 → 1993-10 ended
JZX90 TOUS,TOUV ¥5,300
64033-22090-G1 note Grille Sub-assy, Rear Speaker
1992-10 → 1993-10 ended
GX90,JZX90 GD ¥5,300
64033-22090-G1 note Grille Sub-assy, Rear Speaker
1995-09 → 1996-09 ended
JZX90 GDG ¥5,300
64033-22090-G1 note Grille Sub-assy, Rear Speaker
1995-09 → 1996-09 ended
JZX90 GD;JZX93 GDG ¥5,300
64033-22090-G1 note Grille Sub-assy, Rear Speaker
1994-09 → 1995-09 ended
JZX90 GD,GDG ¥5,300
64033-22090-G1 note Grille Sub-assy, Rear Speaker
1993-10 → 1994-09 ended
JZX90 GD,GDG ¥5,300
64033-22090-G1 note Grille Sub-assy, Rear Speaker
1993-10 → 1994-09 ended
JZX90 TOUS,TOUV ¥5,300
64033-22090-G1 note Grille Sub-assy, Rear Speaker
1994-09 → 1995-09 ended
JZX93 GDG ¥5,300
64033-22090-G1 note Grille Sub-assy, Rear Speaker
1994-09 → 1996-09 ended
JZX90 TOUV ¥5,300
64033-22090-G1 note Grille Sub-assy, Rear Speaker
1992-10 → 1996-09 ended
JZX91 ¥5,300
64033-22090-J1 note Grille Sub-assy, Rear Speaker
1992-10 → 1993-10 ended
JZX90 GDG ¥5,300
64033-22090-J1 note Grille Sub-assy, Rear Speaker
1993-10 → 1994-09 ended
GX90 ¥5,300
64033-22090-J1 note Grille Sub-assy, Rear Speaker
1993-10 → 1994-09 ended
JZX90 TOUS,TOUV ¥5,300
64033-22090-J1 note Grille Sub-assy, Rear Speaker
1993-10 → 1994-09 ended
JZX90 GD,GDG ¥5,300
64033-22090-J1 note Grille Sub-assy, Rear Speaker
1992-10 → 1993-10 ended
GX90,JZX90 GD ¥5,300
64033-22090-J1 note Grille Sub-assy, Rear Speaker
1992-10 → 1994-09 ended
JZX91 ¥5,300
64033-22090-J1 note Grille Sub-assy, Rear Speaker
1992-10 → 1993-10 ended
JZX90 TOUS,TOUV ¥5,300
64033-22090-J1 note Grille Sub-assy, Rear Speaker
1994-09 → 1996-09 ended
JZX90 TOUV ¥5,300
64033-22100-E0 note Grille Sub-assy, Rear Speaker
1993-10 → 1994-09 ended
GX90,JZX93 ¥8,000
64033-22100-E0 note Grille Sub-assy, Rear Speaker
1994-09 → 1995-09 ended
JZX90 GD,GDG ¥8,000
64033-22100-E0 note Grille Sub-assy, Rear Speaker
1994-09 → 1995-09 ended
JZX93 GDG ¥8,000
64033-22100-E0 note Grille Sub-assy, Rear Speaker
1992-10 → 1996-09 ended
JZX91 ¥8,000
64033-22100-E0 note Grille Sub-assy, Rear Speaker
1993-10 → 1994-09 ended
JZX90 GD,GDG ¥8,000
64033-22100-E0 note Grille Sub-assy, Rear Speaker
1995-09 → 1996-09 ended
JZX90 GDG ¥8,000
64033-22100-E0 note Grille Sub-assy, Rear Speaker
1995-09 → 1996-09 ended
JZX90 GD;JZX93 GDG ¥8,000
64033-22100-E0 note Grille Sub-assy, Rear Speaker
1992-10 → 1993-10 ended
GX90,JZX90 GD ¥8,000
64033-22100-E0 note Grille Sub-assy, Rear Speaker
1992-10 → 1993-10 ended
JZX90 GDG ¥8,000
64033-22100-G0 note Grille Sub-assy, Rear Speaker
1994-09 → 1996-09 ended
JZX90 TOUV ¥8,000
64033-22100-G0 note Grille Sub-assy, Rear Speaker
1994-09 → 1995-09 ended
JZX90 GD,GDG ¥8,000
64033-22100-G0 note Grille Sub-assy, Rear Speaker
1995-09 → 1996-09 ended
JZX90 GDG ¥8,000
64033-22100-G0 note Grille Sub-assy, Rear Speaker
1992-10 → 1996-09 ended
JZX91 ¥8,000
64033-22100-G0 note Grille Sub-assy, Rear Speaker
1995-09 → 1996-09 ended
JZX90 GD;JZX93 GDG ¥8,000
64033-22100-G0 note Grille Sub-assy, Rear Speaker
1992-10 → 1993-10 ended
JZX90 GDG ¥8,000
64033-22100-G0 note Grille Sub-assy, Rear Speaker
1994-09 → 1995-09 ended
JZX93 GDG ¥8,000
64033-22100-G0 note Grille Sub-assy, Rear Speaker
1992-10 → 1993-10 ended
GX90,JZX90 GD ¥8,000
64033-22100-G0 note Grille Sub-assy, Rear Speaker
1993-10 → 1994-09 ended
GX90,JZX93 ¥8,000
64033-22100-G0 note Grille Sub-assy, Rear Speaker
1993-10 → 1994-09 ended
JZX90 GD,GDG ¥8,000
64033-22100-G0 note Grille Sub-assy, Rear Speaker
1993-10 → 1994-09 ended
JZX90 TOUS,TOUV ¥8,000
64033-22100-J0 note Grille Sub-assy, Rear Speaker
1992-10 → 1993-10 ended
JZX90 GDG ¥8,000
64033-22100-J0 note Grille Sub-assy, Rear Speaker
1992-10 → 1993-10 ended
GX90,JZX90 GD ¥8,000
64033-22100-J0 note Grille Sub-assy, Rear Speaker
1992-10 → 1994-09 ended
JZX91 ¥8,000
64033-22100-J0 note Grille Sub-assy, Rear Speaker
1993-10 → 1994-09 ended
GX90 ¥8,000
64033-22100-J0 note Grille Sub-assy, Rear Speaker
1994-09 → 1996-09 ended
JZX90 TOUV ¥8,000
64033-22100-J0 note Grille Sub-assy, Rear Speaker
1993-10 → 1994-09 ended
JZX90 TOUS,TOUV ¥8,000
64033-22100-J0 note Grille Sub-assy, Rear Speaker
1993-10 → 1994-09 ended
JZX90 GD,GDG ¥8,000
64271F — Trim, Room Partition
64271-22130 Trim, Room Partition
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 ¥3,710
64330 — Panel Assy, Package Tray Trim
64330-22820-G0 note Panel Assy, Package Tray Trim
1994-09 → 1996-09 ended
JZX90 TOUS,TOUV ¥10,800
64330-22820-J0 note Panel Assy, Package Tray Trim
1994-09 → 1996-09 ended
JZX90 TOUS,TOUV ¥10,800
64330-22830-E0 note Panel Assy, Package Tray Trim
1994-09 → 1996-09 ended
GX90,JZX90,93,LX90,SX90 GD,GDG,GRO ¥10,800
64330-22830-G0 note Panel Assy, Package Tray Trim
1994-09 → 1996-09 ended
GX90,JZX90,93,LX90,SX90 GD,GDG,GRO,TOUS,TOUV ¥10,800
64330-22830-J0 note Panel Assy, Package Tray Trim
1994-09 → 1996-09 ended
JZX90 TOUS,TOUV ¥10,800
64330-22840-G0 note Panel Assy, Package Tray Trim
1994-09 → 1996-09 ended
JZX90 TOUV ¥10,800
64330-22840-J0 note Panel Assy, Package Tray Trim
1994-09 → 1996-09 ended
JZX90 TOUV ¥10,800
64330-22850-E0 note Panel Assy, Package Tray Trim
1995-09 → 1996-09 ended
JZX90 GD;JZX93 GDG ¥10,800
64330-22850-E0 note Panel Assy, Package Tray Trim
1994-09 → 1996-09 ended
JZX91 ¥10,800
64330-22850-E0 note Panel Assy, Package Tray Trim
1995-09 → 1996-09 ended
JZX90 GDG ¥10,800
64330-22850-E0 note Panel Assy, Package Tray Trim
1994-09 → 1995-09 ended
JZX93 GDG ¥10,800
64330-22850-E0 note Panel Assy, Package Tray Trim
1994-09 → 1995-09 ended
JZX90 GD,GDG ¥10,800
64330-22850-G0 note Panel Assy, Package Tray Trim
1994-09 → 1996-09 ended
JZX90 TOUV ¥10,800
64330-22850-G0 note Panel Assy, Package Tray Trim
1994-09 → 1996-09 ended
JZX91 ¥10,800
64330-22850-G0 note Panel Assy, Package Tray Trim
1994-09 → 1995-09 ended
JZX93 GDG ¥10,800
64330-22850-G0 note Panel Assy, Package Tray Trim
1995-09 → 1996-09 ended
JZX90 GDG ¥10,800
64330-22850-G0 note Panel Assy, Package Tray Trim
1995-09 → 1996-09 ended
JZX90 GD;JZX93 GDG ¥10,800
64330-22850-G0 note Panel Assy, Package Tray Trim
1994-09 → 1995-09 ended
JZX90 GD,GDG ¥10,800
64330-22850-J0 note Panel Assy, Package Tray Trim
1994-09 → 1996-09 ended
JZX90 TOUV ¥10,800
64330-22880-E0 note Panel Assy, Package Tray Trim
1994-09 → 1996-09 ended
GX90,JZX90,93,LX90,SX90 GD,GDG,GL,GRO ¥10,800
64330-22880-G0 note Panel Assy, Package Tray Trim
1994-09 → 1996-09 ended
GX90,JZX90,93,LX90,SX90 GD,GDG,GRO ¥10,800
64330-22880-G0 note Panel Assy, Package Tray Trim
1994-09 → 1996-09 ended
JZX90 TOUS,TOUV ¥10,800
64330-22880-J0 note Panel Assy, Package Tray Trim
1994-09 → 1996-09 ended
JZX90 TOUS,TOUV ¥10,800
64330-22890-E0 note Panel Assy, Package Tray Trim
1994-09 → 1995-09 ended
JZX90 GD,GDG ¥10,800
64330-22890-E0 note Panel Assy, Package Tray Trim
1994-09 → 1996-09 ended
JZX91 ¥10,800
64330-22890-E0 note Panel Assy, Package Tray Trim
1995-09 → 1996-09 ended
JZX90 GDG ¥10,800
64330-22890-E0 note Panel Assy, Package Tray Trim
1995-09 → 1996-09 ended
JZX90 GD;JZX93 GDG ¥10,800
64330-22890-E0 note Panel Assy, Package Tray Trim
1994-09 → 1995-09 ended
JZX93 GDG ¥10,800
64330-22890-G0 note Panel Assy, Package Tray Trim
1995-09 → 1996-09 ended
JZX90 GDG ¥10,800
64330-22890-G0 note Panel Assy, Package Tray Trim
1994-09 → 1995-09 ended
JZX93 GDG ¥10,800
64330-22890-G0 note Panel Assy, Package Tray Trim
1994-09 → 1995-09 ended
JZX90 GD,GDG ¥10,800
64330-22890-G0 note Panel Assy, Package Tray Trim
1994-09 → 1996-09 ended
JZX90 TOUV ¥10,800
64330-22890-G0 note Panel Assy, Package Tray Trim
1994-09 → 1996-09 ended
JZX91 ¥10,800
64330-22890-G0 note Panel Assy, Package Tray Trim
1995-09 → 1996-09 ended
JZX90 GD;JZX93 GDG ¥10,800
64330-22890-J0 note Panel Assy, Package Tray Trim
1994-09 → 1996-09 ended
JZX90 TOUV ¥10,800
64330-2A020-G0 note Panel Assy, Package Tray Trim
1992-10 → 1994-09 ended
JZX90 TOUS,TOUV ¥10,800
64330-2A020-J0 note Panel Assy, Package Tray Trim
1992-10 → 1994-09 ended
JZX90 TOUS,TOUV ¥10,800
64330-2A030-E0 note Panel Assy, Package Tray Trim
1992-10 → 1994-09 ended
GX90,JZX90,93,LX90,SX90 GD,GDG,GRO ¥10,800
64330-2A030-G0 note Panel Assy, Package Tray Trim
1992-10 → 1994-09 ended
GX90,JZX90,93,LX90,SX90 GD,GDG,GRO,TOUS,TOUV ¥10,800
64330-2A030-J0 note Panel Assy, Package Tray Trim
1992-10 → 1994-09 ended
GX90,JZX90,LX90,SX90 GD,GDG,GRO,TOUS,TOUV ¥10,800
64330-2A040-G0 note Panel Assy, Package Tray Trim
1992-10 → 1994-09 ended
JZX90 TOUS,TOUV ¥10,800
64330-2A040-J0 note Panel Assy, Package Tray Trim
1992-10 → 1994-09 ended
JZX90 TOUS,TOUV ¥10,800
64330-2A050-E0 note Panel Assy, Package Tray Trim
1992-10 → 1994-09 ended
JZX91 ¥10,800
64330-2A050-E0 note Panel Assy, Package Tray Trim
1992-10 → 1993-10 ended
GX90,JZX90 GD ¥10,800
64330-2A050-E0 note Panel Assy, Package Tray Trim
1992-10 → 1993-10 ended
JZX90 GDG ¥10,800
64330-2A050-E0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
GX90,JZX93 ¥10,800
64330-2A050-E0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
JZX90 GD,GDG ¥10,800
64330-2A050-G0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
JZX90 GD,GDG ¥10,800
64330-2A050-G0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
GX90,JZX93 ¥10,800
64330-2A050-G0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
JZX90 TOUS,TOUV ¥10,800
64330-2A050-G0 note Panel Assy, Package Tray Trim
1992-10 → 1994-09 ended
JZX91 ¥10,800
64330-2A050-G0 note Panel Assy, Package Tray Trim
1992-10 → 1993-10 ended
GX90,JZX90 GD,TOUS,TOUV ¥10,800
64330-2A050-G0 note Panel Assy, Package Tray Trim
1992-10 → 1993-10 ended
JZX90 GDG ¥10,800
64330-2A050-J0 note Panel Assy, Package Tray Trim
1992-10 → 1993-10 ended
GX90,JZX90 GD,TOUS,TOUV ¥10,800
64330-2A050-J0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
JZX90 GD,GDG ¥10,800
64330-2A050-J0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
GX90 ¥10,800
64330-2A050-J0 note Panel Assy, Package Tray Trim
1992-10 → 1993-10 ended
JZX90 GDG ¥10,800
64330-2A050-J0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
JZX90 TOUS,TOUV ¥10,800
64330-2A050-J0 note Panel Assy, Package Tray Trim
1992-10 → 1994-09 ended
JZX91 ¥10,800
64330-2A070-E0 note Panel Assy, Package Tray Trim
1992-10 → 1993-10 ended
JZX9# GDG ¥10,800
64330-2A070-E0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
JZX90,91 GD,GDG ¥10,800
64330-2A070-G0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
JZX90,91 GD,GDG ¥10,800
64330-2A070-G0 note Panel Assy, Package Tray Trim
1992-10 → 1993-10 ended
JZX9# GDG ¥10,800
64330-2A070-J0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
JZX90,91 GD,GDG ¥10,800
64330-2A070-J0 note Panel Assy, Package Tray Trim
1992-10 → 1993-10 ended
JZX9# GDG ¥10,800
64330-2A080-E0 note Panel Assy, Package Tray Trim
1992-10 → 1994-09 ended
GX90,JZX90,93,LX90,SX90 GD,GDG,GL,GRO ¥10,800
64330-2A080-G0 note Panel Assy, Package Tray Trim
1992-10 → 1994-09 ended
GX90,JZX90,93,LX90,SX90 GD,GDG,GRO ¥10,800
64330-2A080-G0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
JZX90 TOUS,TOUV ¥10,800
64330-2A080-J0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
JZX90 TOUS,TOUV ¥10,800
64330-2A080-J0 note Panel Assy, Package Tray Trim
1992-10 → 1994-09 ended
GX90,JZX90,LX90,SX90 GD,GDG,GL,GRO ¥10,800
64330-2A090-E0 note Panel Assy, Package Tray Trim
1992-10 → 1994-09 ended
JZX91 ¥10,800
64330-2A090-E0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
GX90,JZX93 ¥10,800
64330-2A090-E0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
JZX90 GD,GDG ¥10,800
64330-2A090-E0 note Panel Assy, Package Tray Trim
1992-10 → 1993-10 ended
JZX90 GDG ¥10,800
64330-2A090-E0 note Panel Assy, Package Tray Trim
1992-10 → 1993-10 ended
GX90,JZX90 GD ¥10,800
64330-2A090-G0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
GX90,JZX93 ¥10,800
64330-2A090-G0 note Panel Assy, Package Tray Trim
1992-10 → 1993-10 ended
JZX90 GDG ¥10,800
64330-2A090-G0 note Panel Assy, Package Tray Trim
1992-10 → 1993-10 ended
GX90,JZX90 GD ¥10,800
64330-2A090-G0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
JZX90 GD,GDG ¥10,800
64330-2A090-G0 note Panel Assy, Package Tray Trim
1992-10 → 1994-09 ended
JZX91 ¥10,800
64330-2A090-G0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
JZX90 TOUS,TOUV ¥10,800
64330-2A090-J0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
JZX90 GD,GDG ¥10,800
64330-2A090-J0 note Panel Assy, Package Tray Trim
1992-10 → 1994-09 ended
JZX91 ¥10,800
64330-2A090-J0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
GX90 ¥10,800
64330-2A090-J0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
JZX90 TOUS,TOUV ¥10,800
64330-2A090-J0 note Panel Assy, Package Tray Trim
1992-10 → 1993-10 ended
GX90,JZX90 GD ¥10,800
64330-2A090-J0 note Panel Assy, Package Tray Trim
1992-10 → 1993-10 ended
JZX90 GDG ¥10,800
64330-2A100-E0 note Panel Assy, Package Tray Trim
1992-10 → 1993-10 ended
JZX9# GDG ¥10,800
64330-2A100-E0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
JZX90,91 GD,GDG ¥10,800
64330-2A100-G0 note Panel Assy, Package Tray Trim
1992-10 → 1993-10 ended
JZX9# GDG ¥10,800
64330-2A100-G0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
JZX90,91 GD,GDG ¥10,800
64330-2A100-J0 note Panel Assy, Package Tray Trim
1992-10 → 1993-10 ended
JZX9# GDG ¥10,800
64330-2A100-J0 note Panel Assy, Package Tray Trim
1993-10 → 1994-09 ended
JZX90,91 GD,GDG ¥10,800
64337C — Garnish, Package Tray Trim
64337-22040-E0 note Garnish, Package Tray Trim
1992-10 → 1993-10 ended
JZX9# GDG ¥2,050
64337-22040-E0 note Garnish, Package Tray Trim
1993-10 → 1994-09 ended
JZX90,91 GD,GDG ¥2,050
64337-22040-G0 note Garnish, Package Tray Trim
1992-10 → 1993-10 ended
JZX9# GDG ¥2,050
64337-22040-G0 note Garnish, Package Tray Trim
1993-10 → 1994-09 ended
JZX90,91 GD,GDG ¥2,050
64337-22040-J0 note Garnish, Package Tray Trim
1992-10 → 1993-10 ended
JZX9# GDG ¥2,050
64337-22040-J0 note Garnish, Package Tray Trim
1993-10 → 1994-09 ended
JZX90,91 GD,GDG ¥2,050
64711 — Mat, Luggage Compartment Floor
64711-22310-C0 note Mat, Luggage Compartment Floor
1992-10 → 1994-09 ended
GX90,JZX90,91,LX90,SX90 GD,GDG,GRO ¥11,800
64711-22310-C0 note Mat, Luggage Compartment Floor
1994-09 → 1996-09 ended
LX90,SX90 GL ¥11,800
64711-22310-C0 note Mat, Luggage Compartment Floor
1994-09 → 1996-09 ended
GX90,JZX9#,LX90,SX90 GD,GDG,GRO ¥11,800
64711-22310-C0 note Mat, Luggage Compartment Floor
1992-10 → 1996-09 ended
JZX90 TOUS,TOUV ¥11,800
64711-22310-C0 note Mat, Luggage Compartment Floor
1992-10 → 1994-09 ended
LX90,SX90 GL ¥11,800
64711-22310-C0 note Mat, Luggage Compartment Floor
1992-10 → 1994-09 ended
JZX93 ¥11,800
64711-22320-C0 note Mat, Luggage Compartment Floor
1993-10 → 1994-09 ended
JZX90,91 GD,GDG ¥11,800
64711-22320-C0 note Mat, Luggage Compartment Floor
1994-09 → 1995-09 ended
JZX90,91 GD,GDG ¥11,800
64711-22320-C0 note Mat, Luggage Compartment Floor
1992-10 → 1993-10 ended
JZX9# GDG ¥11,800
64712C — Clip(FOR LUGGAGE COMPARTMENT TRIM COVER)
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM COVER)
1992-10 → 1994-09 ended
JZX93 ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM COVER)
1994-09 → 1996-09 ended
LX90,SX90 GL ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM COVER)
1994-09 → 1996-09 ended
GX90,JZX9#,LX90,SX90 GD,GDG,GRO ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM COVER)
1992-10 → 1996-09 ended
JZX90 TOUS,TOUV ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM COVER)
1994-09 → 1995-09 ended
JZX90,91 GD,GDG ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM COVER)
1992-10 → 1994-09 ended
GX90,JZX90,91,LX90,SX90 GD,GDG,GRO ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM COVER)
1992-10 → 1994-09 ended
LX90,SX90 GL ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM COVER)
1992-10 → 1993-10 ended
JZX9# GDG ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM COVER)
1993-10 → 1994-09 ended
JZX90,91 GD,GDG ¥170
64714D — Cover, Luggage Compartment Trim, Side, RH
64714-22230-C0 note Cover, Luggage Compartment Trim, Side, RH
1992-10 → 1994-09 ended
JZX93 ¥9,100
64714-22230-C0 note Cover, Luggage Compartment Trim, Side, RH
1992-10 → 1994-09 ended
LX90,SX90 GL ¥9,100
64714-22230-C0 note Cover, Luggage Compartment Trim, Side, RH
1992-10 → 1994-09 ended
GX90,JZX90,91,LX90,SX90 GD,GDG,GRO ¥9,100
64714-22230-C0 note Cover, Luggage Compartment Trim, Side, RH
1992-10 → 1996-09 ended
JZX90 TOUS,TOUV ¥9,100
64714-22230-C0 note Cover, Luggage Compartment Trim, Side, RH
1994-09 → 1996-09 ended
GX90,JZX9#,LX90,SX90 GD,GDG,GRO ¥9,100
64714-22230-C0 note Cover, Luggage Compartment Trim, Side, RH
1994-09 → 1996-09 ended
LX90,SX90 GL ¥9,100
64715D — Cover, Luggage Compartment Trim, Side, LH
64715-22180-C0 note Cover, Luggage Compartment Trim, Side, LH
1994-09 → 1996-09 ended
LX90,SX90 GL ¥9,100
64715-22180-C0 note Cover, Luggage Compartment Trim, Side, LH
1994-09 → 1996-09 ended
GX90,JZX9#,LX90,SX90 GD,GDG,GRO ¥9,100
64715-22180-C0 note Cover, Luggage Compartment Trim, Side, LH
1992-10 → 1996-09 ended
JZX90 TOUS,TOUV ¥9,100
64715-22180-C0 note Cover, Luggage Compartment Trim, Side, LH
1992-10 → 1994-09 ended
LX90,SX90 GL ¥9,100
64715-22180-C0 note Cover, Luggage Compartment Trim, Side, LH
1992-10 → 1994-09 ended
JZX93 ¥9,100
64715-22180-C0 note Cover, Luggage Compartment Trim, Side, LH
1992-10 → 1994-09 ended
GX90,JZX90,91,LX90,SX90 GD,GDG,GRO ¥9,100
64715-22190-C0 note Cover, Luggage Compartment Trim, Side, LH
1993-10 → 1994-09 ended
JZX90,91 GD,GDG ¥10,600
64715-22190-C0 note Cover, Luggage Compartment Trim, Side, LH
1994-09 → 1995-09 ended
JZX90,91 GD,GDG ¥10,600
64715-22190-C0 note Cover, Luggage Compartment Trim, Side, LH
1992-10 → 1993-10 ended
JZX9# GDG ¥10,600
64716C — Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1993-04 → 1996-09 ended
JZX90 TOUS,TOUV ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1994-09 → 1996-09 ended
LX90,SX90 GL ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1994-09 → 1996-09 ended
GX90,JZX9#,LX90,SX90 GD,GDG,GRO ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1993-04 → 1994-09 ended
GX90,JZX90,91,LX90,SX90 GD,GDG,GRO ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1993-04 → 1994-09 ended
LX90,SX90 GL ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1993-04 → 1994-09 ended
JZX93 ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1992-10 → 1993-04 ended
GX90,JZX9#,LX90,SX90 GD,GDG,GRO ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1992-10 → 1993-04 ended
JZX90 TOUS,TOUV ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
1992-10 → 1993-04 ended
LX90,SX90 GL ¥170
64716G — Cover, Luggage Compartment Trim, Rear
64716-22250-C0 note Cover, Luggage Compartment Trim, Rear
1992-10 → 1994-09 ended
JZX93 ¥11,800
64716-22250-C0 note Cover, Luggage Compartment Trim, Rear
1992-10 → 1994-09 ended
LX90,SX90 GL ¥11,800
64716-22250-C0 note Cover, Luggage Compartment Trim, Rear
1992-10 → 1994-09 ended
GX90,JZX90,91,LX90,SX90 GD,GDG,GRO ¥11,800
64716-22250-C0 note Cover, Luggage Compartment Trim, Rear
1992-10 → 1996-09 ended
JZX90 TOUS,TOUV ¥11,800
64716-22250-C0 note Cover, Luggage Compartment Trim, Rear
1994-09 → 1996-09 ended
GX90,JZX9#,LX90,SX90 GD,GDG,GRO ¥11,800
64716-22250-C0 note Cover, Luggage Compartment Trim, Rear
1994-09 → 1996-09 ended
LX90,SX90 GL ¥11,800
64717A — Cover, Luggage Compartment Trim, Front
64717-22090-C0 note Cover, Luggage Compartment Trim, Front
1994-09 → 1996-09 ended
LX90,SX90 GL ¥15,900
64717-22090-C0 note Cover, Luggage Compartment Trim, Front
1994-09 → 1996-09 ended
GX90,JZX9#,LX90,SX90 GD,GDG,GRO ¥15,900
64717-22090-C0 note Cover, Luggage Compartment Trim, Front
1992-10 → 1996-09 ended
JZX90 TOUS,TOUV ¥15,900
64717-22090-C0 note Cover, Luggage Compartment Trim, Front
1992-10 → 1994-09 ended
LX90,SX90 GL ¥15,900
64717-22090-C0 note Cover, Luggage Compartment Trim, Front
1992-10 → 1994-09 ended
GX90,JZX90,91,LX90,SX90 GD,GDG,GRO ¥15,900
64717-22090-C0 note Cover, Luggage Compartment Trim, Front
1992-10 → 1994-09 ended
JZX93 ¥15,900
64717B — Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
1992-10 → 1994-09 ended
JZX93 ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
1992-10 → 1994-09 ended
LX90,SX90 GL ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
1992-10 → 1994-09 ended
GX90,JZX90,91,LX90,SX90 GD,GDG,GRO ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
1992-10 → 1996-09 ended
JZX90 TOUS,TOUV ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
1994-09 → 1996-09 ended
GX90,JZX9#,LX90,SX90 GD,GDG,GRO ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
1994-09 → 1996-09 ended
LX90,SX90 GL ¥170
64719A — Cover, Luggage Compartment Door
64719-22010-C0 note Cover, Luggage Compartment Door
1992-10 → 1994-09 ended
JZX90,91 GDG ¥18,300
64719-22010-C0 note Cover, Luggage Compartment Door
1994-09 → 1996-09 ended
LX90,SX90 GL ¥18,300
64719-22010-C0 note Cover, Luggage Compartment Door
1994-09 → 1996-09 ended
JZX93;GX90,JZX90,LX90,SX90 GD,GRO ¥18,300
64719-22010-C0 note Cover, Luggage Compartment Door
1994-09 → 1996-09 ended
JZX90,91 GDG ¥18,300
64719-22010-C0 note Cover, Luggage Compartment Door
1992-10 → 1996-09 ended
JZX90 TOUS,TOUV ¥18,300
64719-22010-C0 note Cover, Luggage Compartment Door
1992-10 → 1994-09 ended
GX90,JZX90,LX90,SX90 GD,GRO ¥18,300
64719-22010-C0 note Cover, Luggage Compartment Door
1992-10 → 1994-09 ended
LX90,SX90 GL ¥18,300
64719-22010-C0 note Cover, Luggage Compartment Door
1992-10 → 1994-09 ended
JZX93 ¥18,300
64719B — Clip(FOR LUGGAGE COMPARTMENT DOOR)
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT DOOR)
1994-09 → 1996-09 ended
LX90,SX90 GL ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT DOOR)
1994-09 → 1996-09 ended
JZX93;GX90,JZX90,LX90,SX90 GD,GRO ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT DOOR)
1994-09 → 1996-09 ended
JZX90,91 GDG ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT DOOR)
1992-10 → 1994-09 ended
GX90,JZX90,LX90,SX90 GD,GRO ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT DOOR)
1992-10 → 1994-09 ended
JZX90,91 GDG ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT DOOR)
1992-10 → 1994-09 ended
LX90,SX90 GL ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT DOOR)
1992-10 → 1994-09 ended
JZX93 ¥170
90467-07152-C0 note Clip(FOR LUGGAGE COMPARTMENT DOOR)
1992-10 → 1996-09 ended
JZX90 TOUS,TOUV ¥170
64770 — Cover Assy, Spare Wheel
64770-22160 note Cover Assy, Spare Wheel
1992-10 → 1994-09 ended
GX90,JZX9#,LX90,SX90 GD,GDG,GL,GRO,TOUS ¥6,300
64770-22161 note Cover Assy, Spare Wheel
1994-09 → 1996-09 ended
GX90,JZX9#,LX90,SX90 GD,GDG,GL,GRO,TOUS ¥6,300
64770-22170 note Cover Assy, Spare Wheel
1992-10 → 1994-09 ended
GX90,LX90,SX90 ¥6,300
64770-22180 note Cover Assy, Spare Wheel
1993-10 → 1994-09 ended
LX90,SX90 GRO ¥5,500
64770-22180 note Cover Assy, Spare Wheel
1994-12 → 1996-09 ended
GX90 MTM;LX90,SX90 GRO ¥5,500
64770-22180 note Cover Assy, Spare Wheel
1994-12 → 1996-09 ended
GX90 ATM ¥5,500
64770-22180 note Cover Assy, Spare Wheel
1994-09 → 1996-09 ended
JZX9# GD,GDG,TOUS ¥5,500
64770-22180 Cover Assy, Spare Wheel
1992-10 → 1996-09 ended
JZX90 TOUV ¥5,500
64770-22180 note Cover Assy, Spare Wheel
1994-09 → 1994-12 ended
GX90,LX90,SX90 GD,GRO ¥5,500
64770-22180 note Cover Assy, Spare Wheel
1993-10 → 1994-09 ended
GX90 ¥5,500
64770-22180 note Cover Assy, Spare Wheel
1992-10 → 1994-09 ended
JZX9# GD,GDG,TOUS ¥5,500
64770-22180 note Cover Assy, Spare Wheel
1992-10 → 1993-10 ended
GX90,LX90,SX90 GD,GRO ¥5,500
64775C — Support, Spare Wheel Cover
64775-22030 Support, Spare Wheel Cover
1994-09 → 1996-09 ended
GX90,JZX9#,LX90,SX90 GD,GDG,GL,GRO,TOUS ¥900
64779A — Stopper, Spare Wheel Cover
64779-22020 Stopper, Spare Wheel Cover
1994-09 → 1996-09 ended
GX90,JZX9#,LX90,SX90 GD,GDG,GL,GRO,TOUS ¥810
64779-22030 note Stopper, Spare Wheel Cover
1994-09 → 1996-09 ended
GX90,LX90,SX90 ¥620
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
