Toyota Mark 2

1992-10 → 1996-09 · chassis GX90,LX90,SX90,JZX9# · catalogue 311170 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

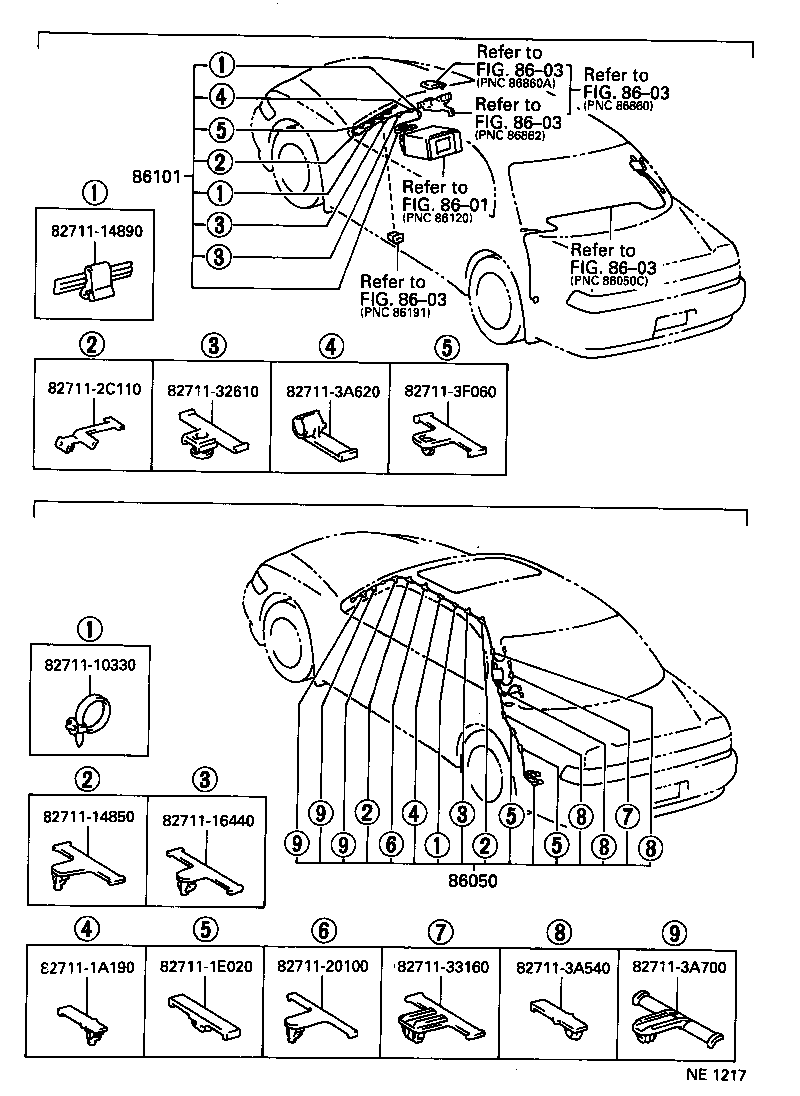

Exploded illustration NE1217 8603 — not listed in this catalogue 8603 — not listed in this catalogue 8603 — not listed in this catalogue 86101 — CORD SUB-ASSY, ANTENNA (8 parts) 8601 — not listed in this catalogue 8271114890 — not listed in this catalogue 8603 — not listed in this catalogue 8603 — not listed in this catalogue 827112C110 — not listed in this catalogue 8271132610 — not listed in this catalogue 827113F060 — not listed in this catalogue 827113A620 — not listed in this catalogue 8271110330 — not listed in this catalogue 8271114850 — not listed in this catalogue 8271116440 — not listed in this catalogue 86050 — ANTENNA ASSY, TELEVISION (17 parts) 827111E020 — not listed in this catalogue 8271133160 — not listed in this catalogue 8271120100 — not listed in this catalogue 827113A700 — not listed in this catalogue 827111A190 — not listed in this catalogue 827113A540 — not listed in this catalogue
NE1217 · 2 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
25 parts on this figure
Part number Description Fitment Price
86050 — Antenna Assy, Television
86050-22020 note Antenna Assy, Television
1993-10 → 1994-09 ended
JZX90,91 GD,GDG ¥25,100
86050-22020 note Antenna Assy, Television
1992-10 → 1993-10 ended
JZX9# GDG ¥25,100
86050-22030 note Antenna Assy, Television
1992-10 → 1993-10 ended
JZX9# GDG ¥25,100
86050-22030 note Antenna Assy, Television
1993-10 → 1994-09 ended
JZX90,91 GD,GDG ¥25,100
86050-22040 note Antenna Assy, Television
1992-10 → 1993-10 ended
JZX9# GDG ¥25,100
86050-22040 note Antenna Assy, Television
1993-10 → 1995-09 ended
JZX90,91 GD,GDG ¥25,100
86050-22130 note Antenna Assy, Television
1994-09 → 1995-09 ended
JZX90,91 GD,GDG ¥19,700
86050-22130 note Antenna Assy, Television
1994-09 → 1995-09 ended
JZX90,91 GD,GDG ¥19,700
86050-22140 note Antenna Assy, Television
1994-09 → 1995-09 ended
JZX90,91 GD,GDG ¥19,700
86050-22190 note Antenna Assy, Television
1995-09 → 1996-09 ended
GX90,JZX90 GD,TOUS,TOUV ¥19,700
86050-22190 note Antenna Assy, Television
1995-09 → 1996-09 ended
JZX90,91 GDG ¥19,700
86050-22200 note Antenna Assy, Television
1995-09 → 1996-09 ended
JZX90,91 GDG ¥19,700
86050-22200 note Antenna Assy, Television
1995-09 → 1996-09 ended
GX90,JZX90 GD,TOUS,TOUV ¥19,700
86050-22210 note Antenna Assy, Television
1995-09 → 1996-09 ended
JZX90,91 GDG ¥19,700
86050-22210 note Antenna Assy, Television
1995-09 → 1996-09 ended
GX90,JZX90 GD,TOUS,TOUV ¥19,700
86050-22220 note Antenna Assy, Television
1995-09 → 1996-09 ended
JZX90,91 GDG ¥19,700
86050-22220 note Antenna Assy, Television
1995-09 → 1996-09 ended
GX90,JZX90 GD,TOUS,TOUV ¥19,700
86101 — Cord Sub-assy, Antenna
86101-22220 Cord Sub-assy, Antenna
1992-10 → 1996-09 ended
LX90,SX90 GL ¥4,530
86101-22250 note Cord Sub-assy, Antenna
1995-04 → 1995-08 ended
JZX90 GD ¥4,530
86101-22250 note Cord Sub-assy, Antenna
1995-09 → 1995-11 ended
JZX90,91 GDG,TOUV ¥4,530
86101-22250 Cord Sub-assy, Antenna
1992-10 → 1996-09 ended
GX90,JZX9#,LX90,SX90 GD,GDG,GRO,TOUS,TOUV ¥4,530
86101-22260 note Cord Sub-assy, Antenna
1995-09 → 1996-09 ended
JZX90,91 GDG ¥13,500
86101-22260 note Cord Sub-assy, Antenna
1995-09 → 1996-09 ended
GX90,JZX90 GD,TOUS,TOUV ¥13,500
86101-22270 note Cord Sub-assy, Antenna
1995-09 → 1996-09 ended
GX90,JZX90 GD,TOUS,TOUV ¥12,100
86101-22270 note Cord Sub-assy, Antenna
1995-09 → 1996-09 ended
JZX90,91 GDG ¥12,100
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
