Factory parts data · Europe

Toyota Mark 2/Mark 2 Blit

2000-10 → 2007-06 · chassis GX11#,JZX11# · catalogue 311190 · Japan

Discontinued model Data version 2008-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

5 part groups · 4 illustrations

Illustrations

150047 2000-10 → —

150280 2000-10 → —

153395 2000-10 → —

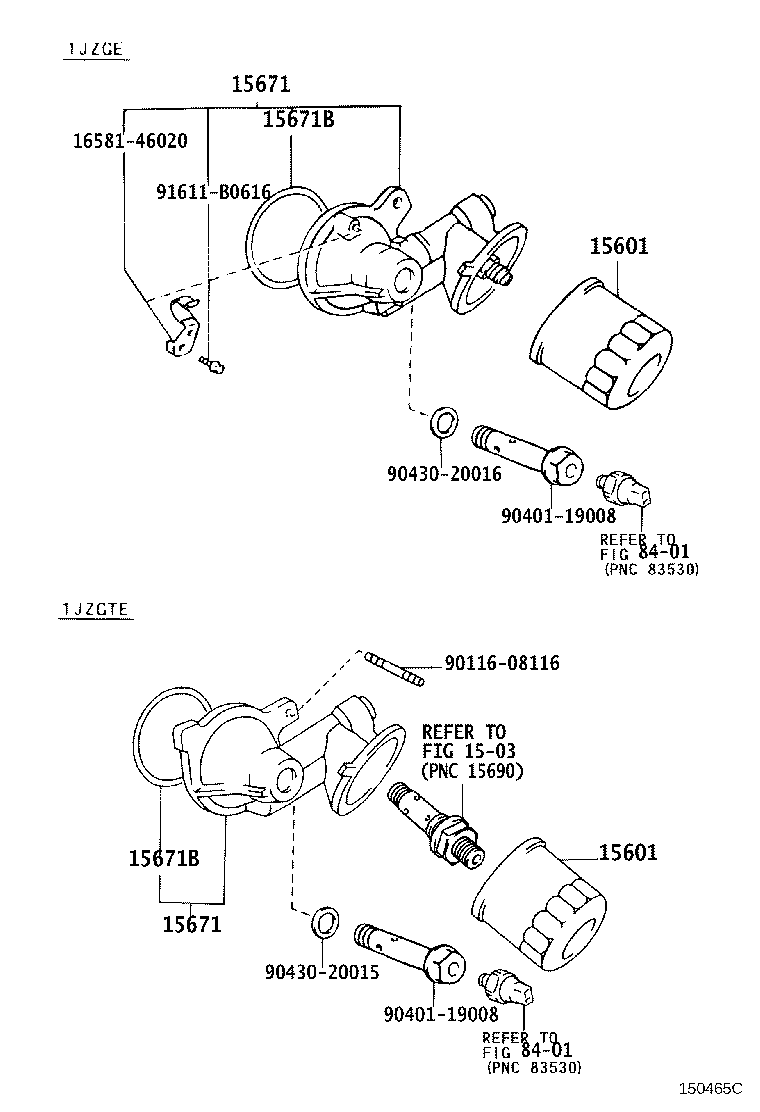

Figure 150465C

150465C 2000-10 → —

Part groups

PNC	Description
15600A	Union(FOR OIL FILTER)
15601	Filter Sub-assy, Oil
15671	Bracket, Oil Filter
15671B	Gasket, Oil Filter Bracket
15690B	Valve Assy, Oil Cooler Relief

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
