Toyota Mark 2/Mark 2 Blit
2000-10 → 2007-06 · chassis GX11#,JZX11# · catalogue 311190 · Japan
Discontinued model
Data version 2008-04

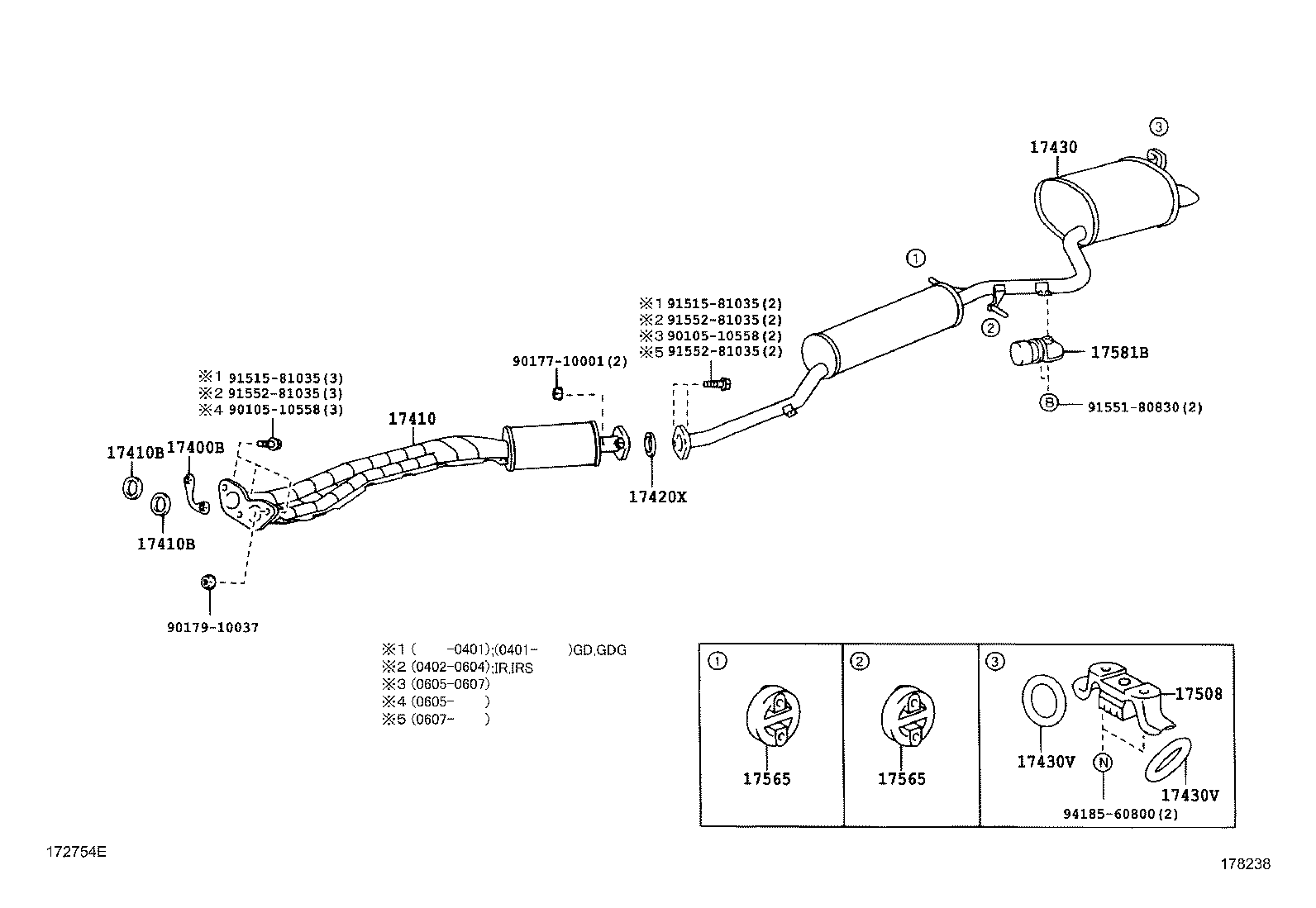

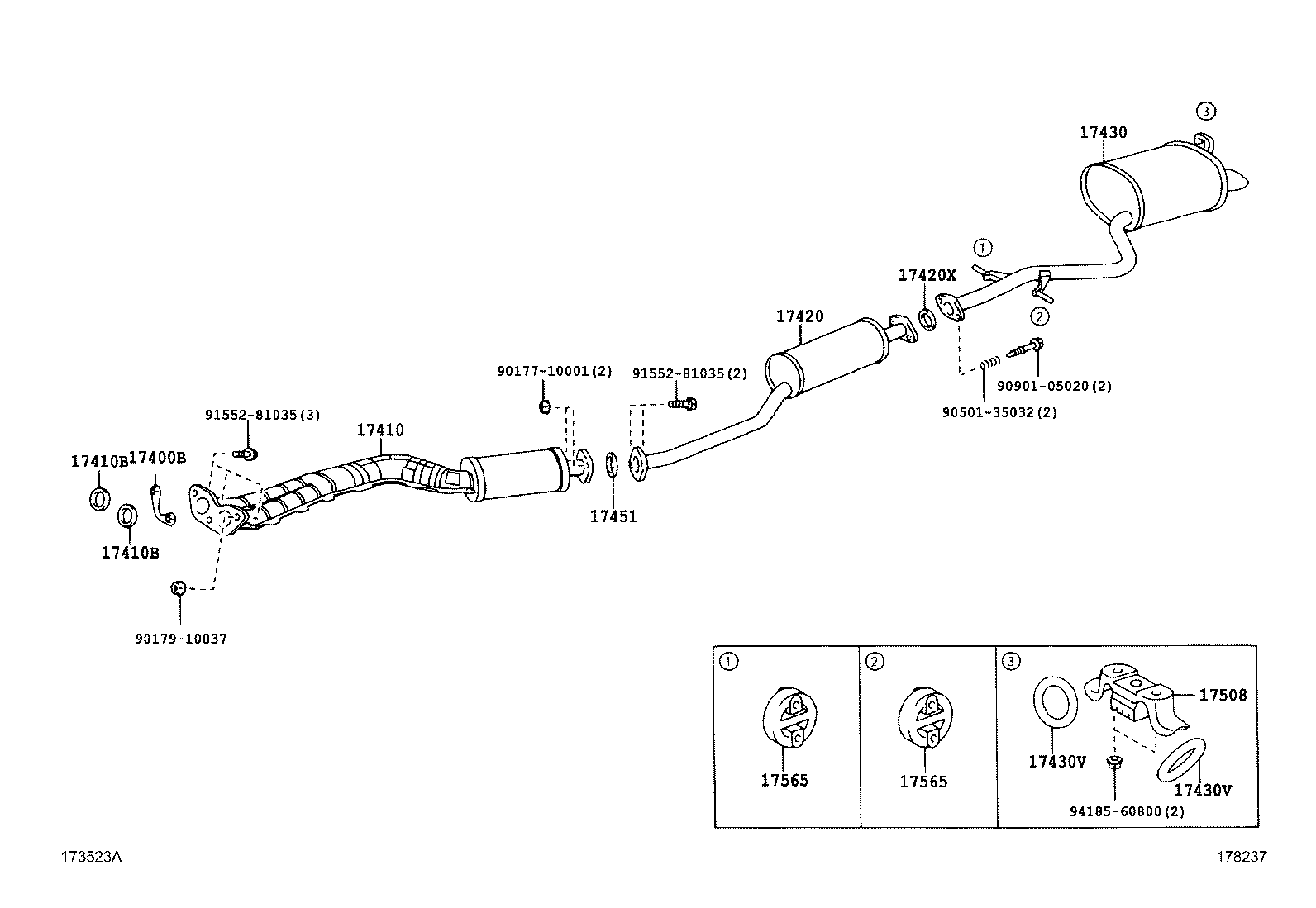

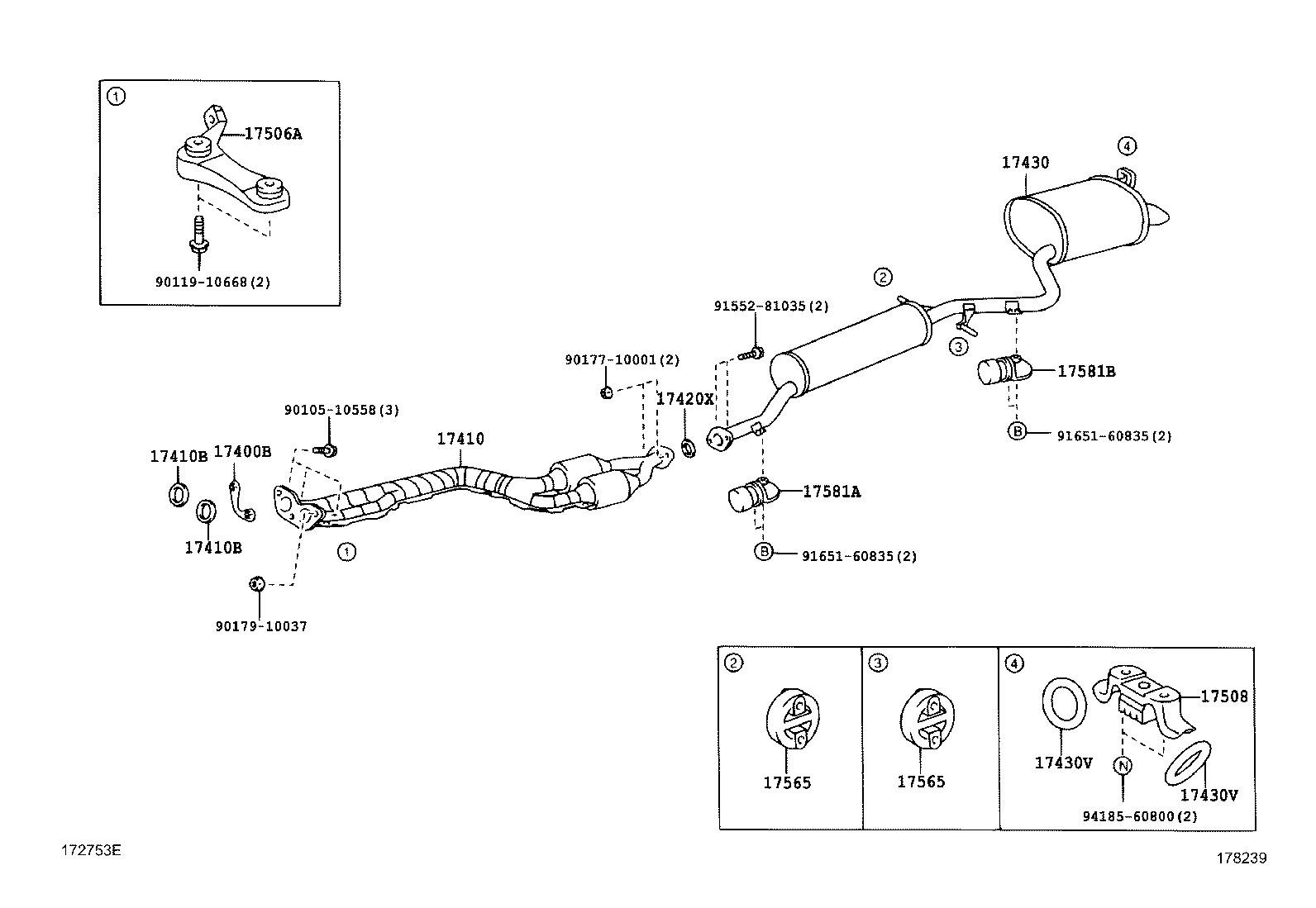

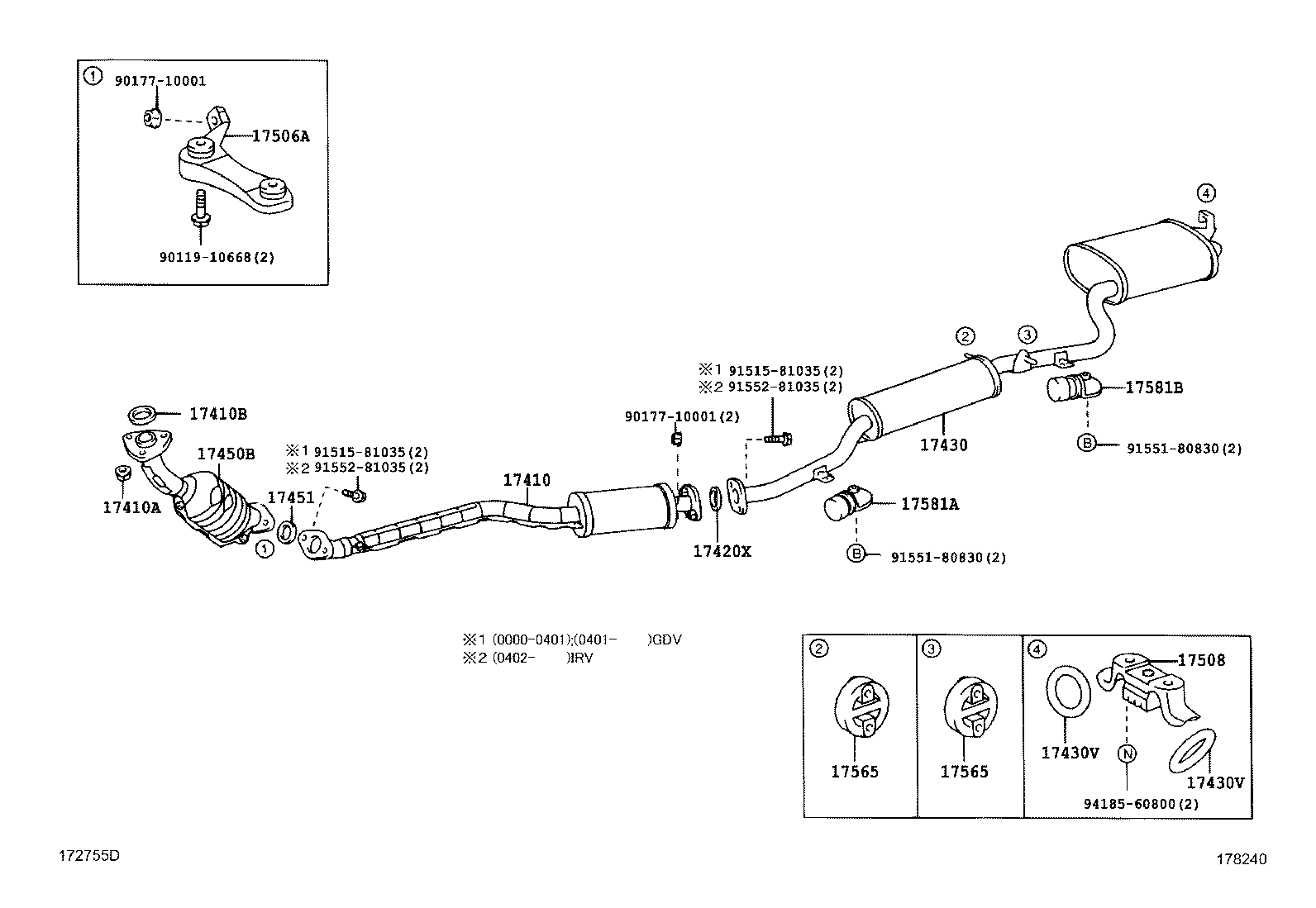

Exhaust Pipe
15 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 17400B | Retainer, Exhaust Pipe |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430V | Bolt OR Ring, Exhaust Tailpipe (FOR REAR) |
| 17450B | Pipe Assy, Exhaust, Front NO.2 |
| 17451 | Gasket, Exhaust Pipe |
| 17506A | Bracket Sub-assy, Exhaust Pipe NO.1 Support |
| 17508 | Support Sub-assy, Exhaust Pipe, NO.3 |
| 17565 | Support, Exhaust Pipe, NO.5 |
| 17581A | Damper, Exhaust Pipe |
| 17581B | Damper, Exhaust Pipe, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
