Toyota Mark 2/Mark 2 Blit

2000-10 → 2007-06 · chassis GX11#,JZX11# · catalogue 311190 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

17 part groups · 2 illustrations

Illustrations

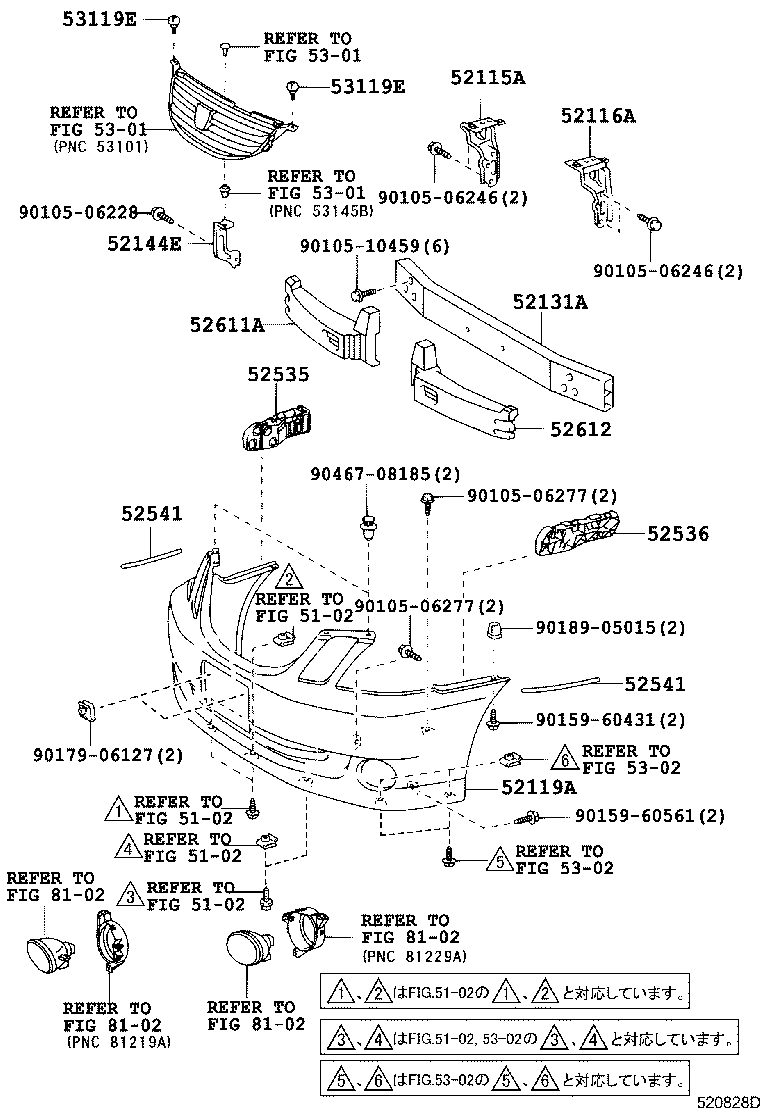

Figure 520661I 520661I 2000-10 → — Figure 520828D 520828D 2002-01 → —

Part groups

PNCDescription
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52131A Reinforcement, Front Bumper
52132A Reinforcement, Front Bumper, NO.2
52133C Reinforcement, Front Bumper Bar, RH
52134C Reinforcement, Front Bumper Bar, LH
52137B Plate, Front Bumper Bracket, NO.1
52144E Stay, Front Bumper, Center
52161C Piece, Front Bumper
52162G Plate, Rear Bumper, NO.1
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52541 Protector, Front Bumper
52611A Absorber, Front Bumper Energy, RH
52612 Absorber, Front Bumper Energy, LH
53119E Protector, Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
