Toyota Mark 2/Mark 2 Blit

2000-10 → 2007-06 · chassis GX11#,JZX11# · catalogue 311190 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

27 part groups · 3 illustrations

Illustrations

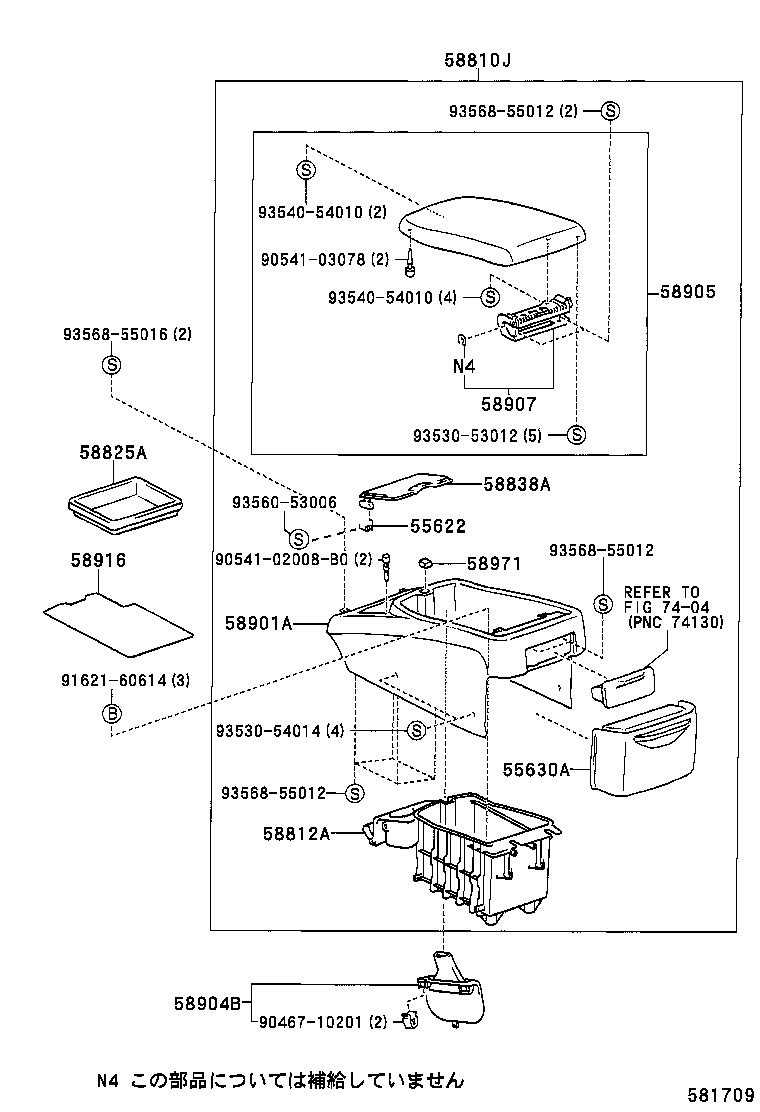

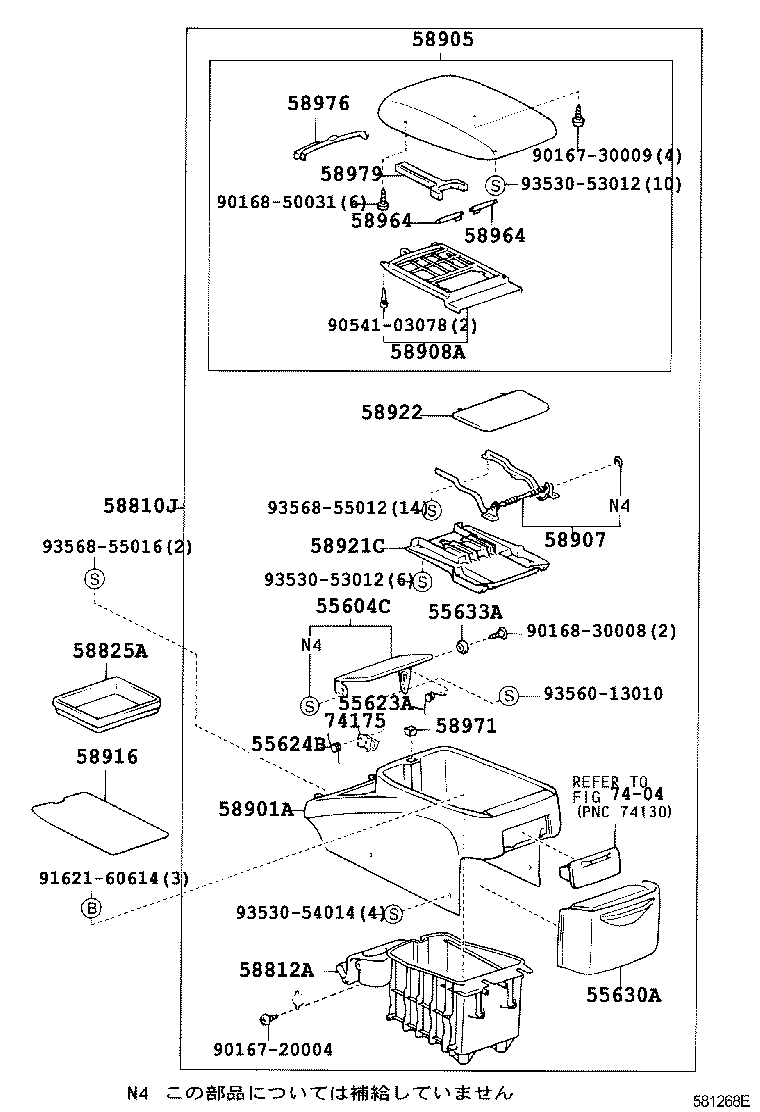

Figure 581266B 581266B 2000-10 → — Figure 581709 581709 2000-10 → — Figure 581268E 581268E 2000-10 → —

Part groups

PNCDescription
55434H Panel, Instrument Panel Finish, Lower Center
55604C Holder Sub-assy, Console Box Cup
55622 Spring, Instr Panel Cup Holder, NO.1
55623A Spring, Instrument Panel Cup Holder, NO.2
55624B Spring, Instrment Panel Cup Holder, NO.3
55630A Holder, Rear Console Box, Cup
55633A Support, Instrument Panel Cup Holder, NO.1
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58812A Box, Console, Lower
58825A Pocket, Console Box
58838A Door, Console Cup Holder Box
58901A Box Sub-assy, Console, Rear
58904B Cover Sub-assy, Parking Brake Hole
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58916 Mat, Box Bottom
58921C Plate, Box, Upper NO.1
58922 Pin, Cab Stay Lock Handle
58964 Stopper, Console Compartment Door, NO.1
58971 Lock, Console Compartment Door
58976 Striker, Console Compartment Door Lock
58979 Catch, Console Box Striker
58995A Bracket, Console Box Mounting, NO.1
74175 Lock, Front Ash Receptacle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
