Toyota Mark 2/Mark 2 Blit

2000-10 → 2007-06 · chassis GX11#,JZX11# · catalogue 311190 · Japan

Discontinued model Data version 2008-04

Roof Panel & Back Window Glass

43 part groups · 4 illustrations

PNC	Description
56115B	Stopper, Back Window Glass, NO.1
61825B	Plate, Noise Control, NO.2
63102A	Panel Sub-assy, Windshield Header
63103A	Reinforcement Sub-assy, Roof Panel
63105A	Frame Sub-assy, Back Door Opening

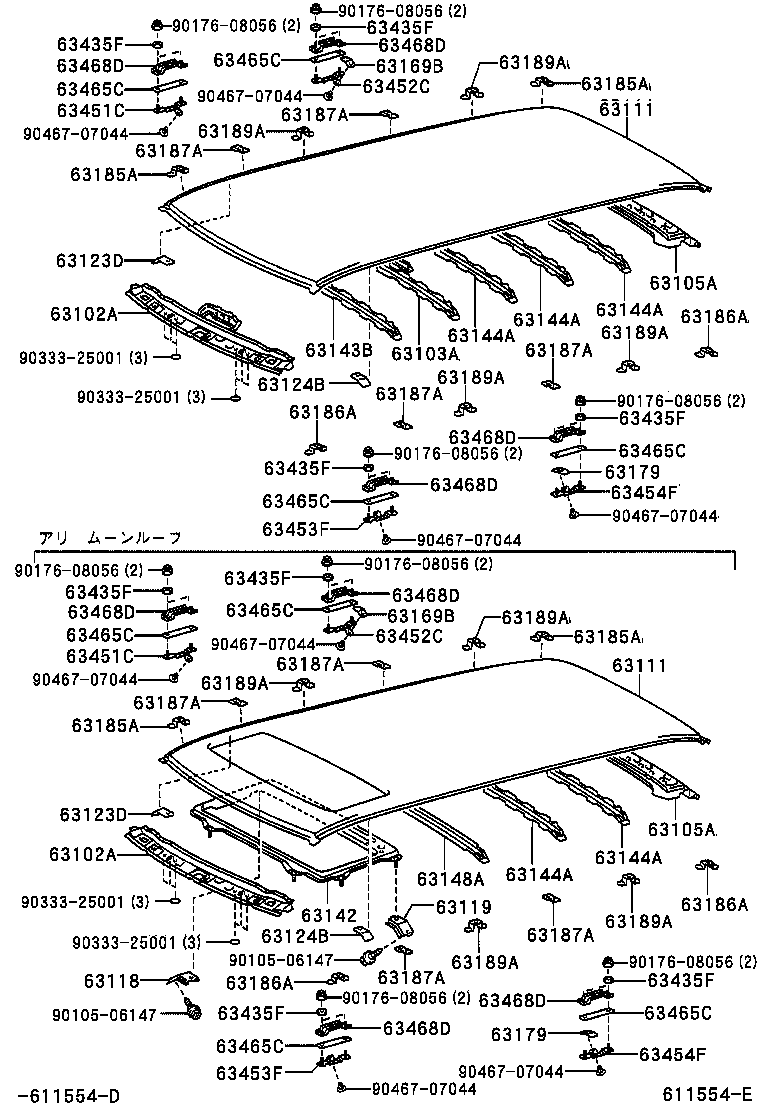

63111	Panel, Roof
63118	Support, Roof Panel, RH
63119	Support, Roof Panel, LH
63123D	Reinforcement, Roof Panel, Front RH
63124B	Reinforcement, Roof Panel, Front LH
63127B	Damper, Back Window Upper Freme
63133A	Frame, Back Window, Upper
63141H	Reinforcement, Roof Panel, Center
63142	Reinforcement, Roof Panel, NO.2
63143B	Reinforcement, Roof Panel, NO.3
63144A	Reinforcement, Roof Panel, NO.4
63148A	Reinforcement, Roof Panel, NO.7
63169B	Plate, Roof Panel Reinforcement, RH
63179	Plate, Roof Panel Reinforcement, LH
63185A	Bracket, Roof Rack, Front RH
63186A	Bracket, Roof Rack, Front LH
63187A	Bracket, Roof Rack, Rear
63189A	Bracket, Roof Rack, Center

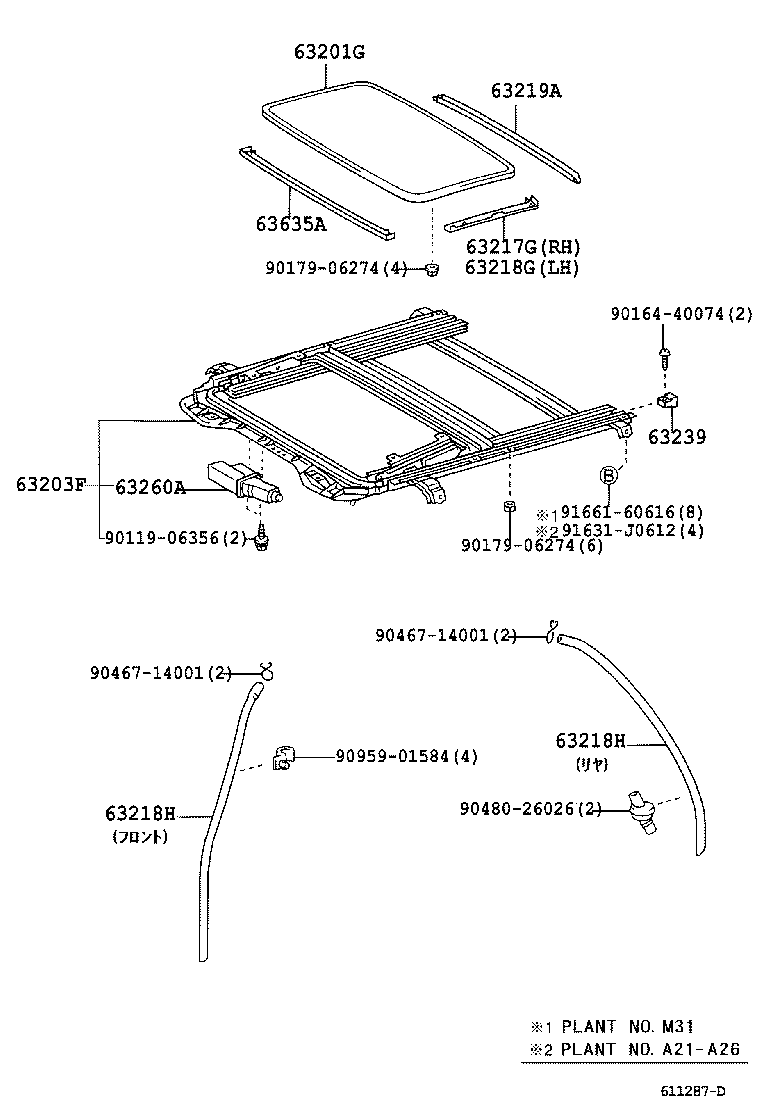

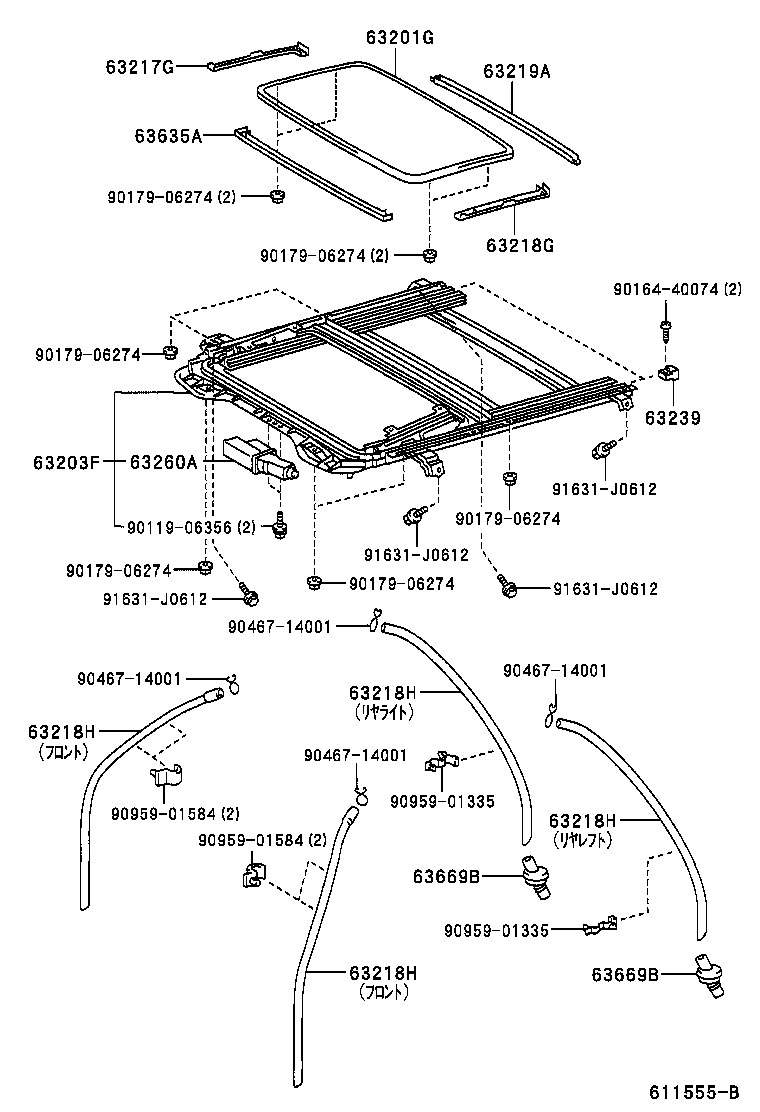

63201G	Glass Sub-assy, Sliding Roof
63203F	Housing Sub-assy, Sliding Roof
63217G	Garnish, Sliding Roof Side, RH
63218G	Garnish, Sliding Roof Side, LH
63218H	Hose, Sliding Roof Drain
63219A	Garnish, Sliding Roof, Rear
63239	Stopper, Sliding Roof Panel
63260A	Gear Sub-assy, Sliding Roof Drive
63435F	Seal, Roof Carrier, NO.1
63451C	Retainer, Roof Rack, Front RH
63452C	Retainer, Roof Rack, Rear RH
63453F	Retainer, Roof Rack, Front LH
63454F	Retainer, Roof Rack, Rear LH
63465C	Plate, Roof Rack, Front
63468D	Frame, Roof Rack, Upr
63635A	Garnish, Sliding Roof, Front
63669B	Grommet, Sliding Roof Drain
64101	Panel Sub-assy, Upper Back
64241D	Panel, Room Partition
64811	Glass, Back Window

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
