Toyota Mark 2/Mark 2 Blit
2000-10 → 2007-06 · chassis GX11#,JZX11# · catalogue 311190 · Japan
Discontinued model
Data version 2008-04

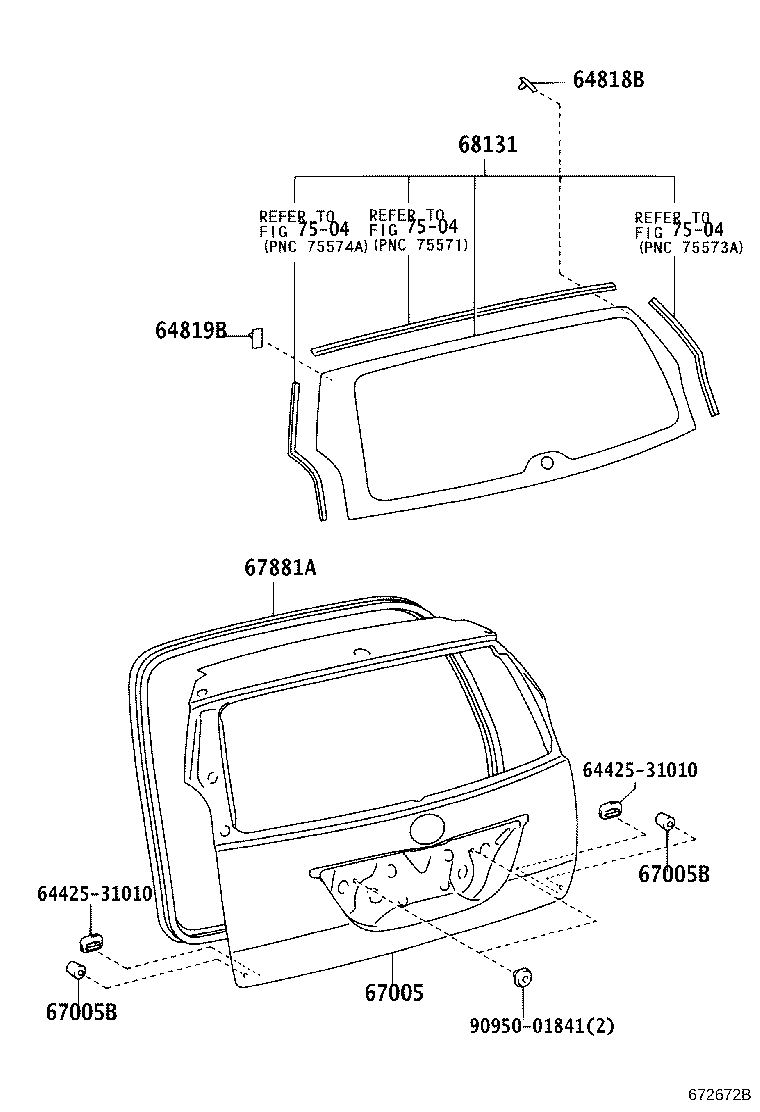

Back Door Panel & Glass
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 64791C | Cover, Back Door Trim, RH |
| 64792 | Cover, Back Door Trim, LH |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819B | Spacer, Back Window Glass, NO.2 |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67750 | Board Assy, Back Door Trim |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67759 | Board, Back Door Trim, Upper |
| 67881A | Weatherstrip, Back Door |
| 68131 | Glass, Back Door |
| 74811D | Handle, Door Pull |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
