Toyota Mark 2/Mark 2 Blit

2000-10 → 2007-06 · chassis GX11#,JZX11# · catalogue 311190 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

12 part groups · 4 illustrations

Illustrations

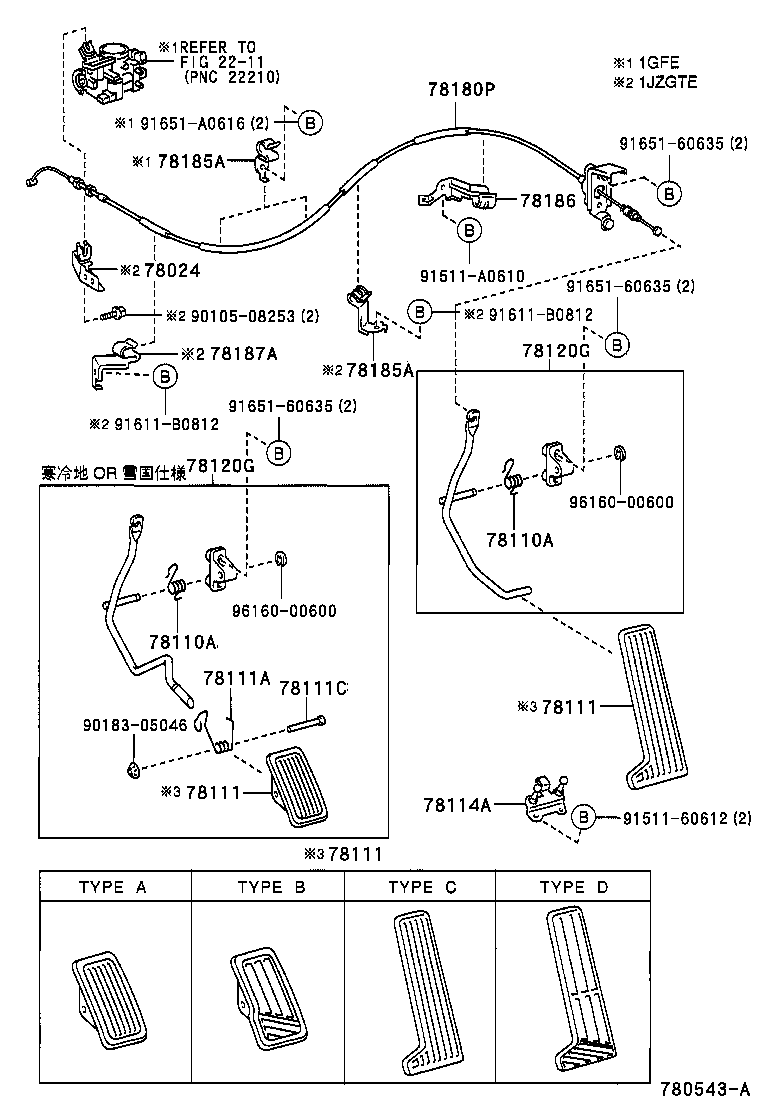

Figure 780656B 780656B 2000-10 → — Figure 780543A 780543A 2000-10 → — Figure 780543A 780543A 2002-01 → — Figure 780543A 780543A 2002-10 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78111A Spring (FOR ACCELERATOR PEDAL)
78111C Pin (FOR ACCELERATOR PEDAL)
78114A Bracket, Accelerator Pedal Support
78117 Cushion (FOR ACCELERATOR ROD)
78120G Rod Assy, Accelerator Pedal
78180P Cable Assy, Accelerator Control
78185A Clamp, Accelerator Control Cable, NO.2
78186 Support, Accelerator Control Cable, NO.1
78187A Clamp, Accelerator Control Cable, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
