Toyota Mark 2/Mark 2 Blit

2000-10 → 2007-06 · chassis GX11#,JZX11# · catalogue 311190 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

27 part groups · 7 illustrations

Illustrations

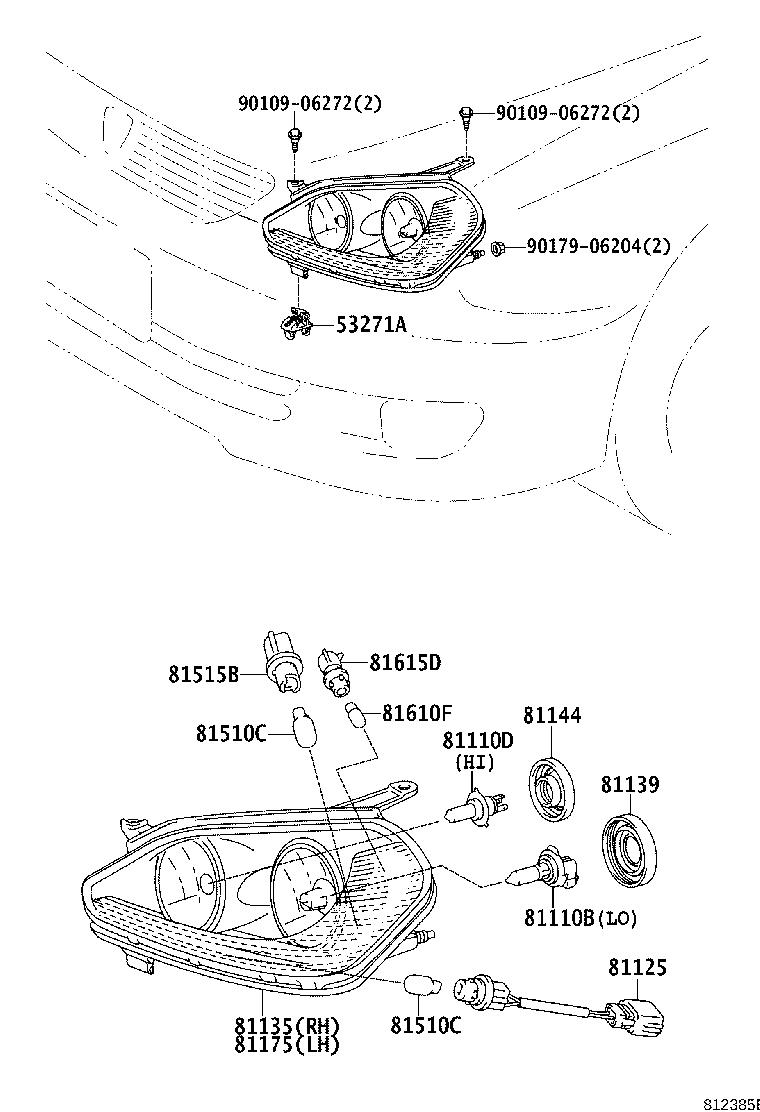

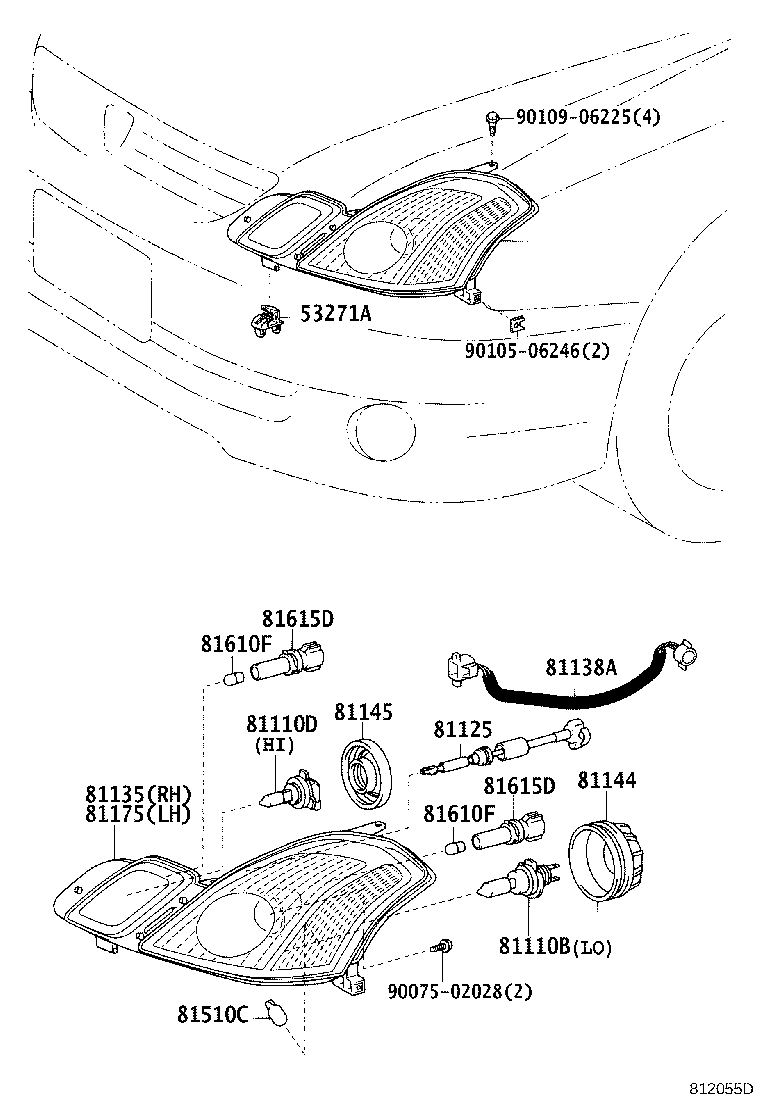

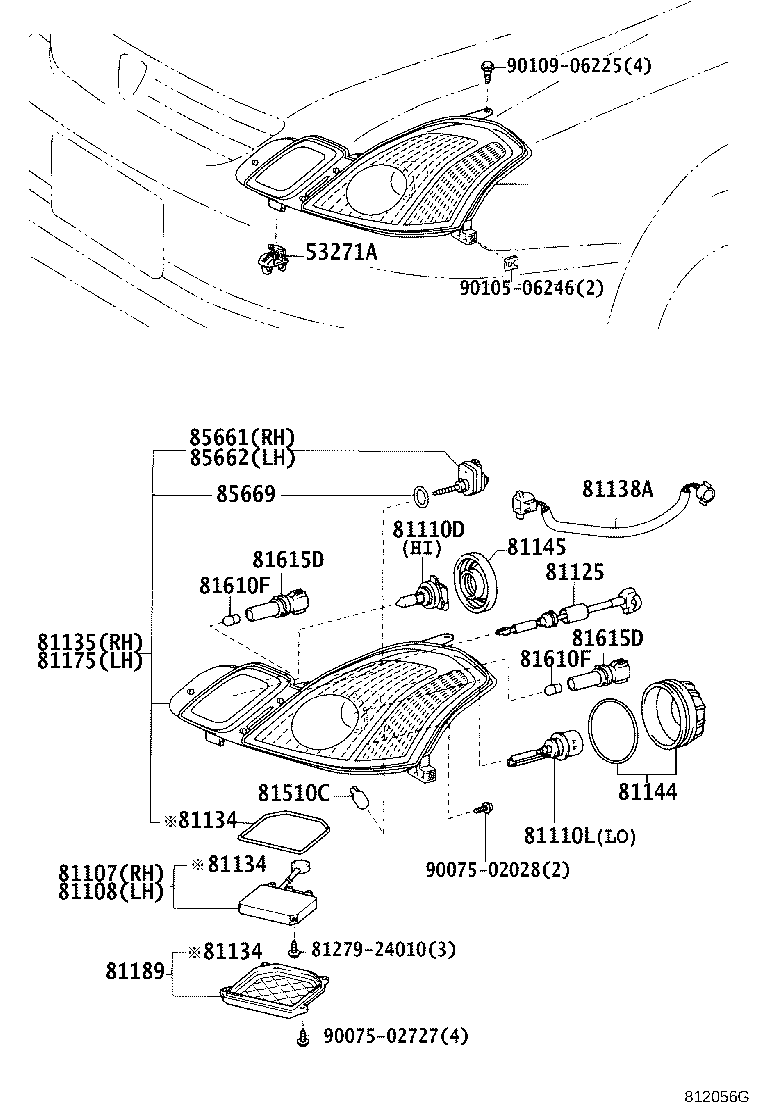

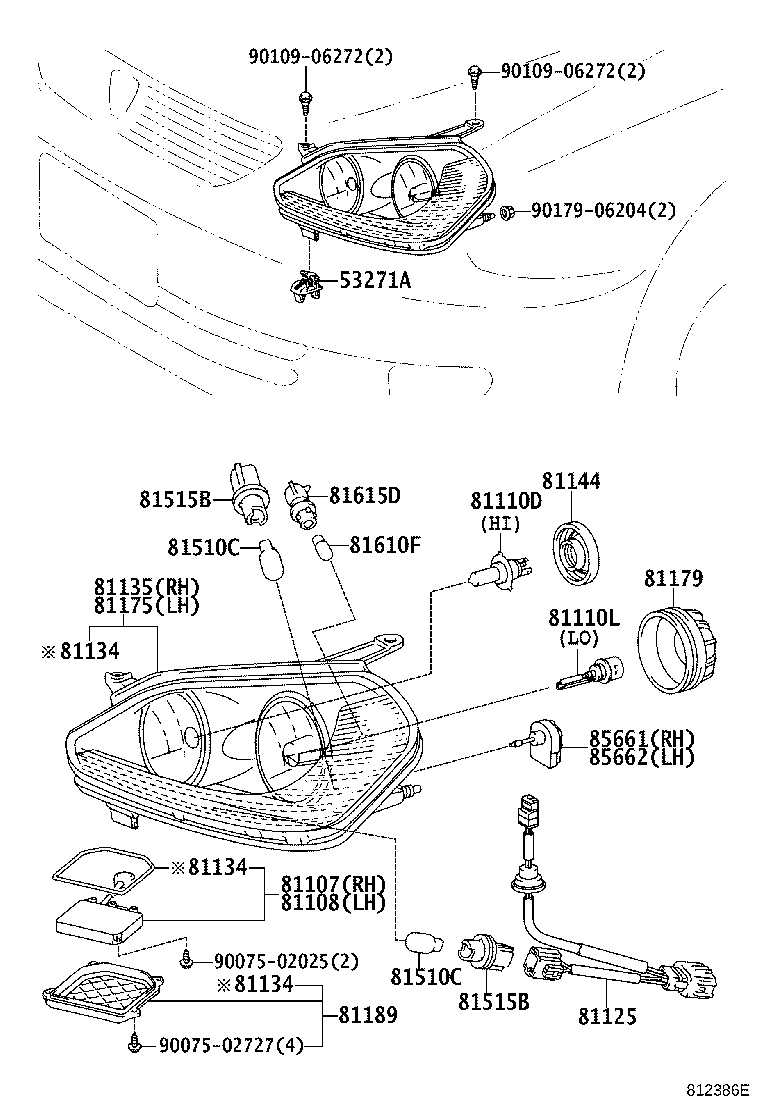

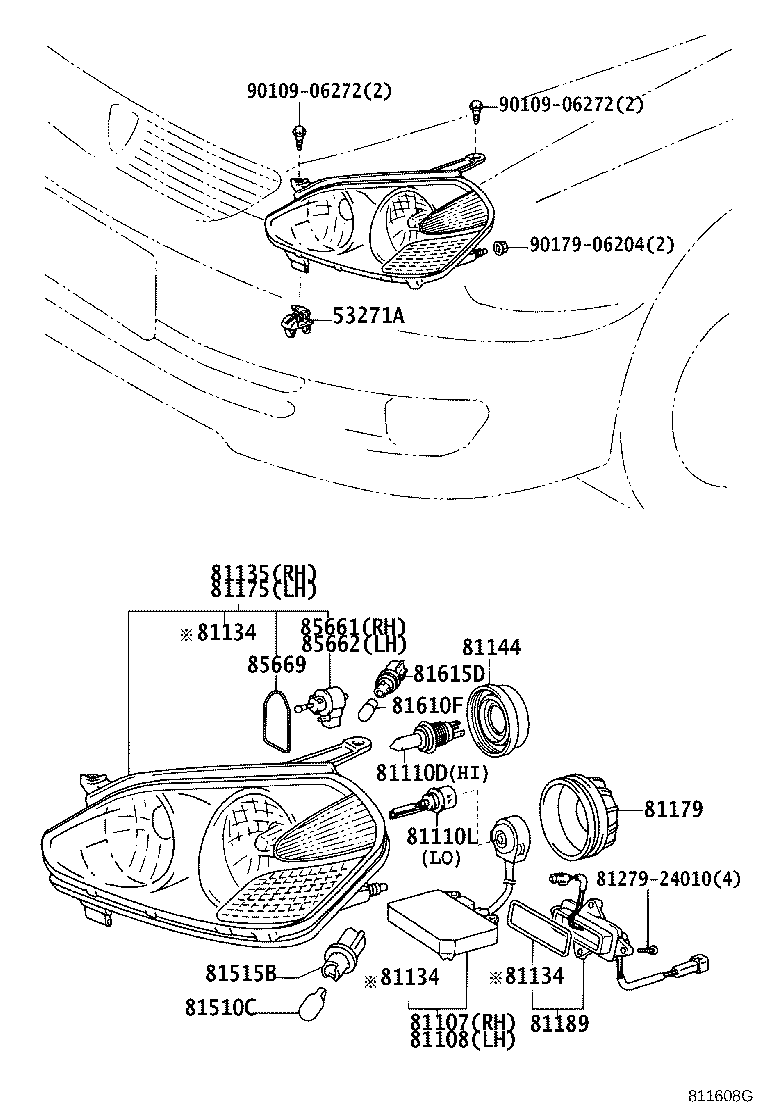

Figure 811607E 811607E 2000-10 → 2002-10 Figure 811608G 811608G 2000-10 → 2002-10 Figure 812385E 812385E 2002-10 → — Figure 812386E 812386E 2002-10 → — Figure 812055D 812055D 2002-01 → — Figure 812056G 812056G 2002-01 → — Figure 812372A 812372A 2002-06 → —

Part groups

PNCDescription
53271A Bracket, Headlamp Mounting
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81125 Cord, Headlamp
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81138A Socket & Wire, Headlamp
81139 Cover, Headlamp Socket
81144 Cover, Headlamp, NO.1
81145 Cover, Headlamp, NO.2
81175 Unit Assy, Headlamp, LH
81179 Cover, Headlamp Socket
81189 Cover, Headlamp
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
