Toyota Mark 2/Mark 2 Blit
2000-10 → 2007-06 · chassis GX11#,JZX11# · catalogue 311190 · Japan
Discontinued model
Data version 2008-04

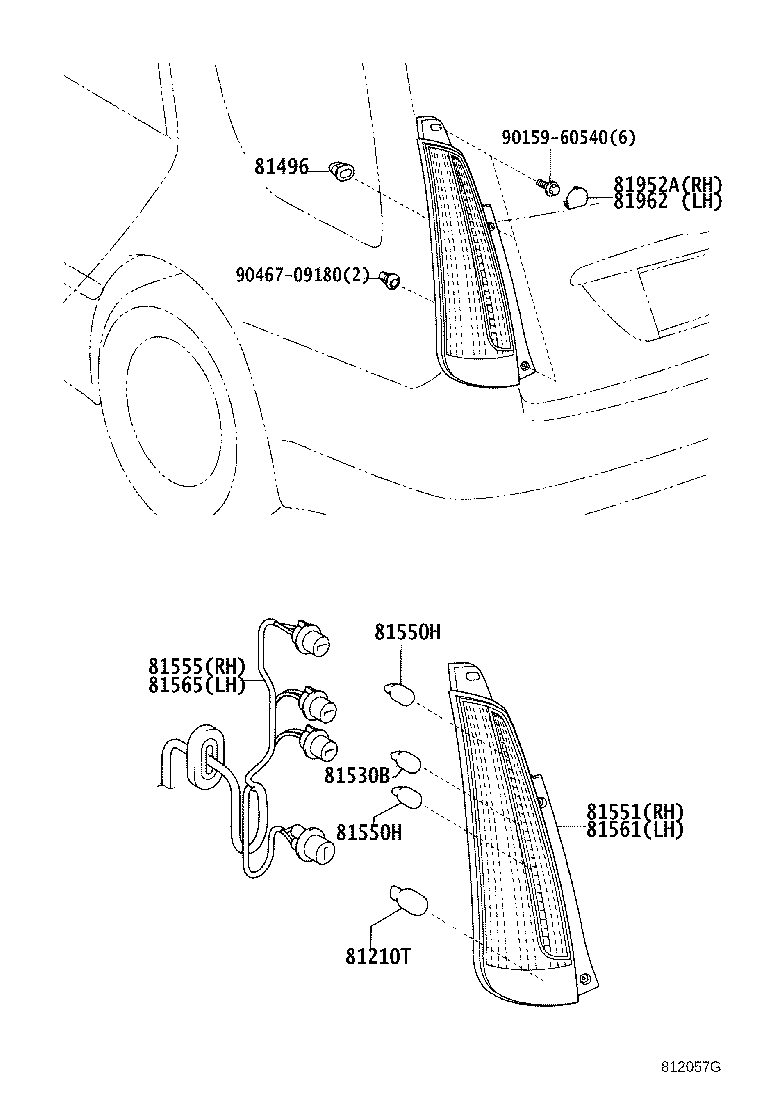

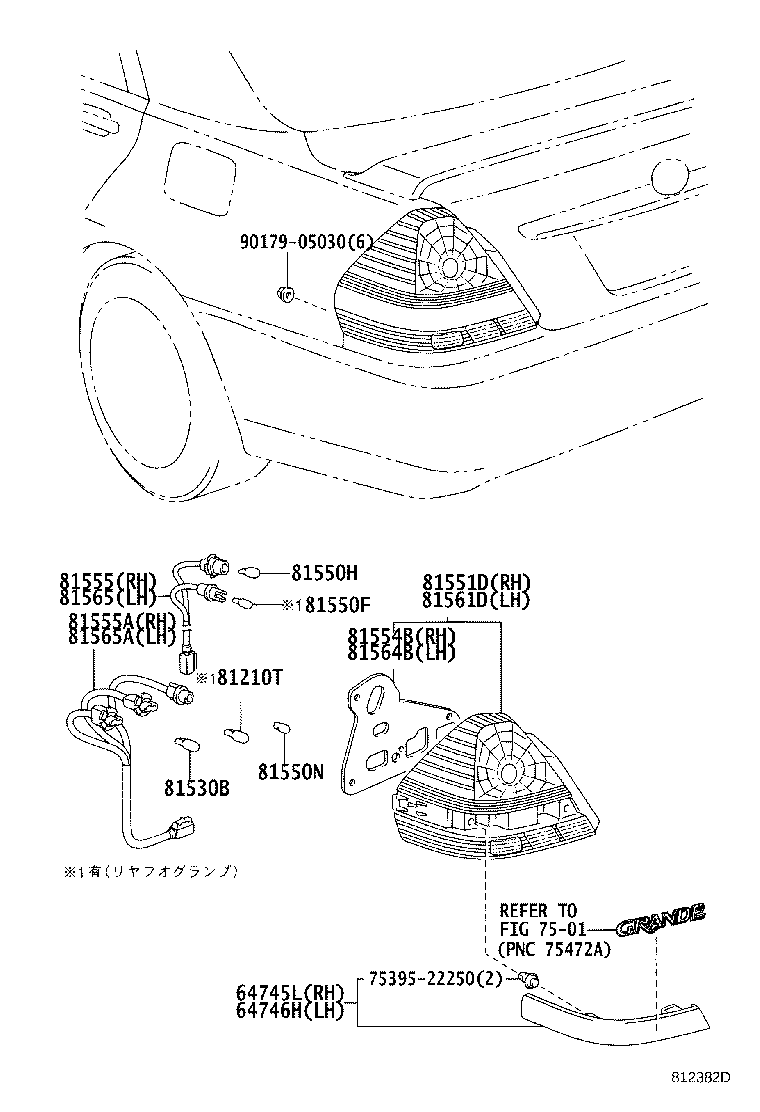

Rear Combination Lamp
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 64745L | Cover, Rear Combination Lamp Service, RH |
| 64746H | Cover, Rear Combination Lamp Service, LH |
| 81210T | Bulb, Rear Fog Lamp |
| 81496 | Guide, Rear Combination Lamp |
| 81530B | Bulb, Rear Turn Signal Lamp |
| 81550F | Bulb, Taillamp |
| 81550H | Bulb, Tail & Stop Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81552 | Gasket, Rear Combination Lamp Lens, RH |
| 81554B | Gasket, Rear Combination Lamp Body, NO.2 RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81555A | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81562 | Gasket, Rear Combination Lamp Lens, LH |
| 81564B | Gasket, Rear Combination Lamp Body, NO.2 LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81565A | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81952A | Cover, Rear Lamp, RH |
| 81962 | Cover, Rear Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
