Toyota Mark 2/Mark 2 Blit

2000-10 → 2007-06 · chassis GX11#,JZX11# · catalogue 311190 · Japan

Discontinued model Data version 2008-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

6 part groups · 4 illustrations

Illustrations

Figure 861273A

861273A 2000-10 → —

861611 2000-10 → —

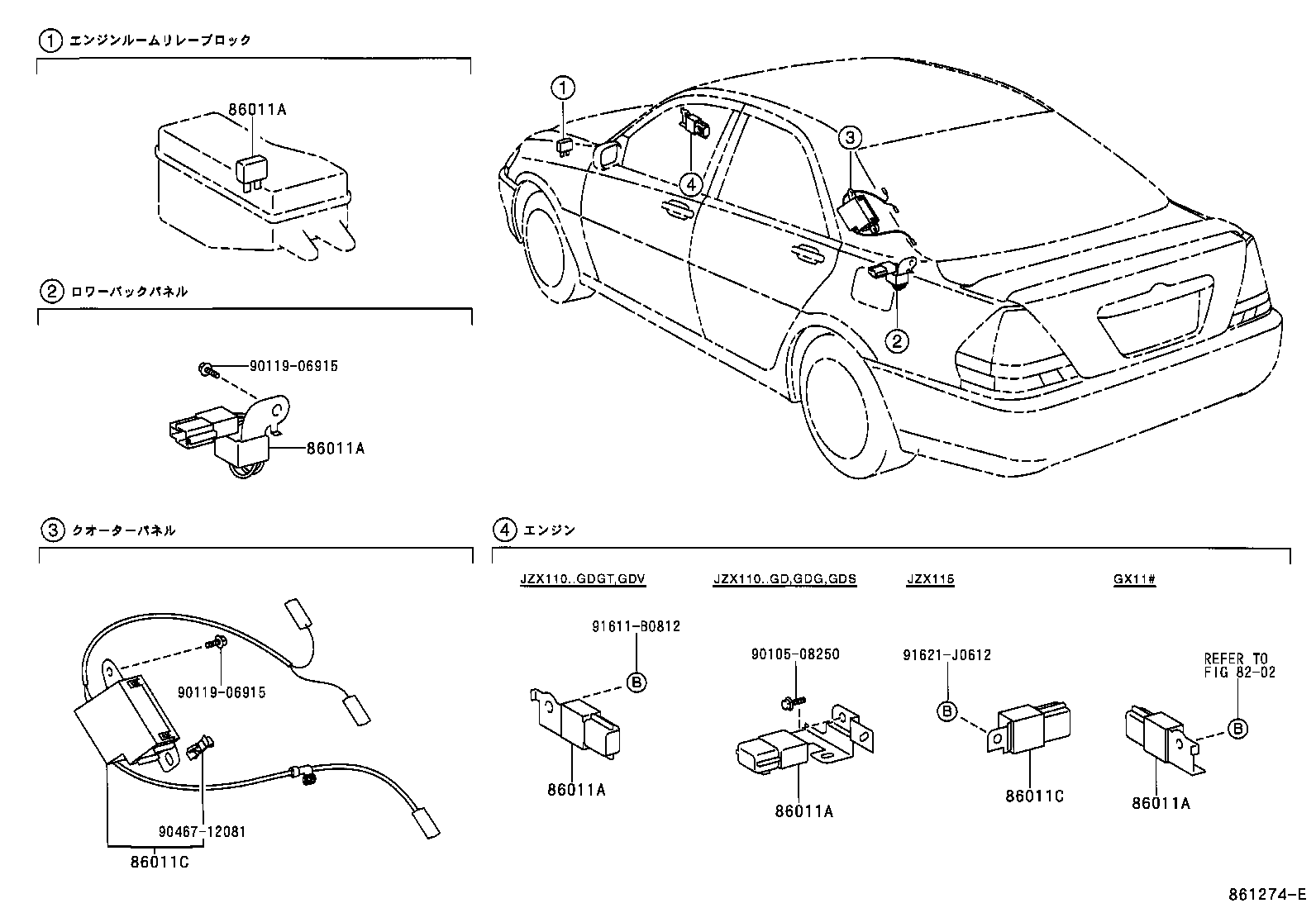

Figure 861274E

861274E 2000-10 → —

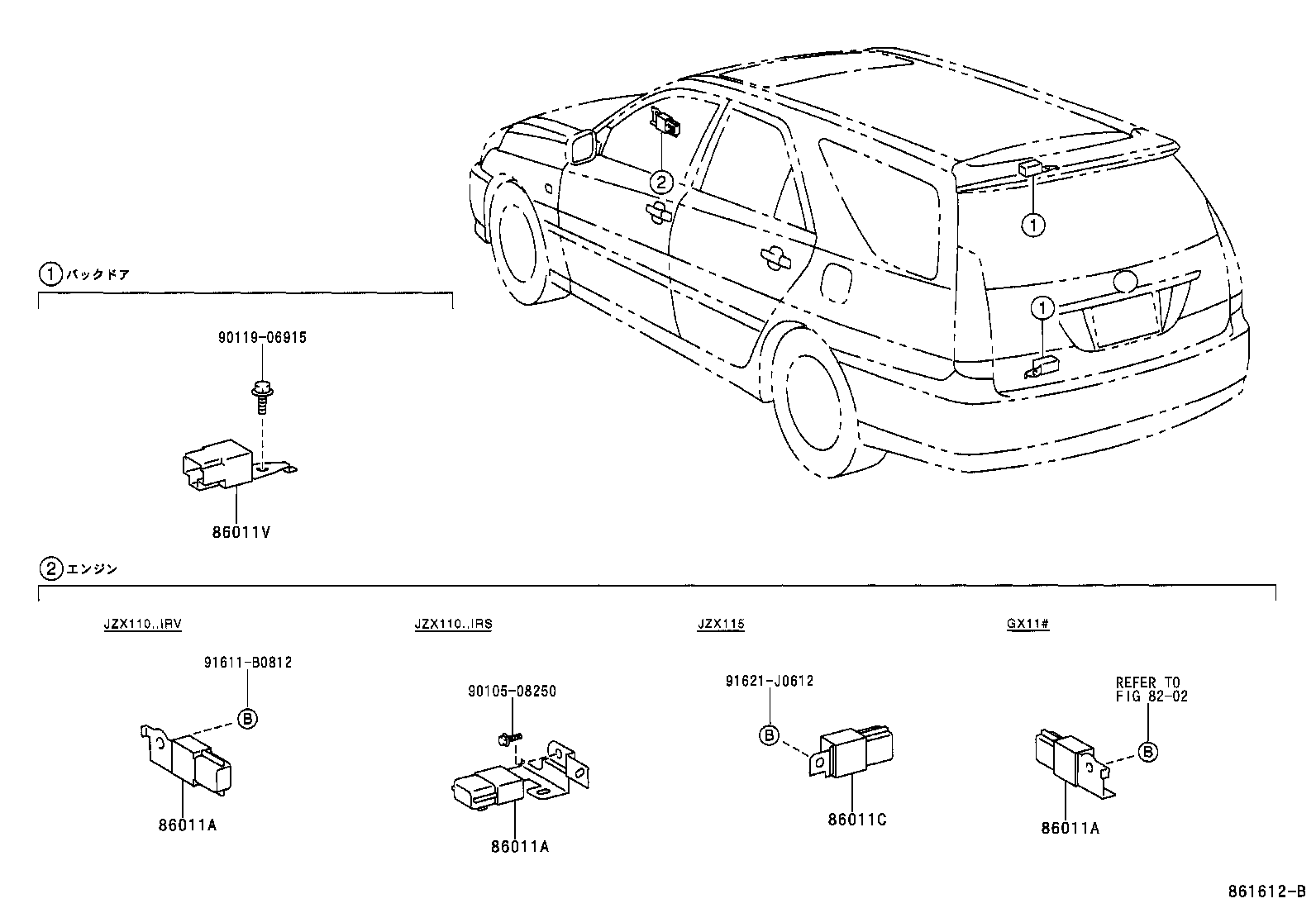

Figure 861612B

861612B 2002-01 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86011C	Filter, Noise
86011V	Condenser, Radio Setting
86120	Receiver Assy, Radio
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
