Toyota Mark 2/Mark 2 Blit
2000-10 → 2007-06 · chassis GX11#,JZX11# · catalogue 311190 · Japan
Discontinued model
Data version 2008-04
Navigation & Front Monitor Display
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

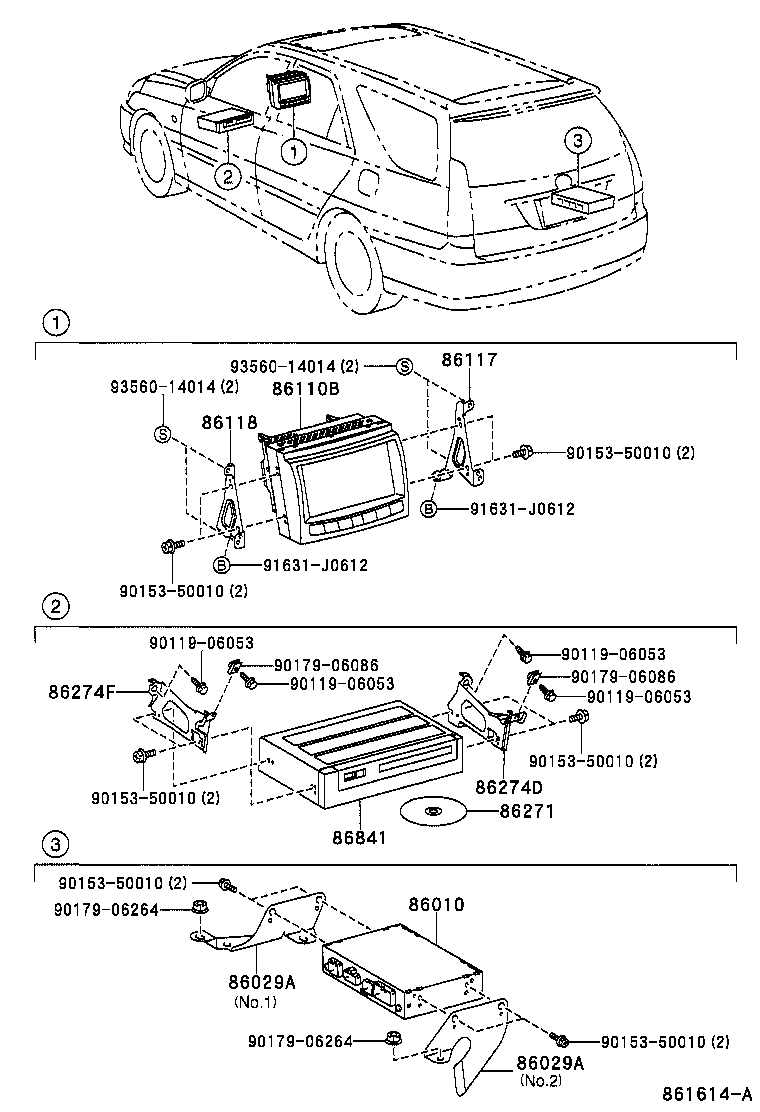

| 86010 | Tuner Assy, Television |
| 86029A | Bracket Set, Television, NO.1 |
| 86110B | Multi-display Assy |
| 86117 | Bracket, Multi-display Controller, A |
| 86118 | Bracket, Multi-display Controler, B |
| 86271 | Disc, Disc Player |
| 86274D | Bracket, Disc Player |
| 86274F | Bracket, Disc Player, NO.2 |

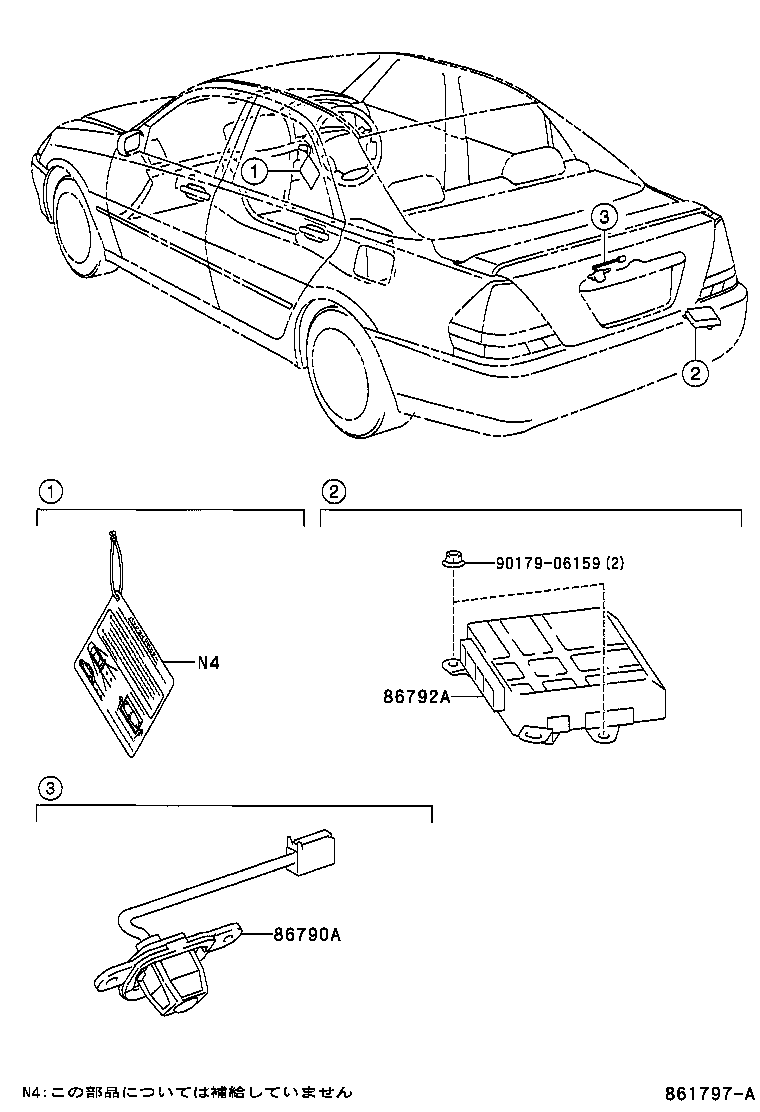

| 86790A | Camera Assy, Television |
| 86792A | Controller, Television Camera |
| 86841 | Computer, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
