Toyota Mark 2/Mark 2 Blit

2000-10 → 2007-06 · chassis GX11#,JZX11# · catalogue 311190 · Japan

Discontinued model Data version 2008-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

4 part groups · 3 illustrations

Illustrations

Figure 874499D

874499D 2000-10 → —

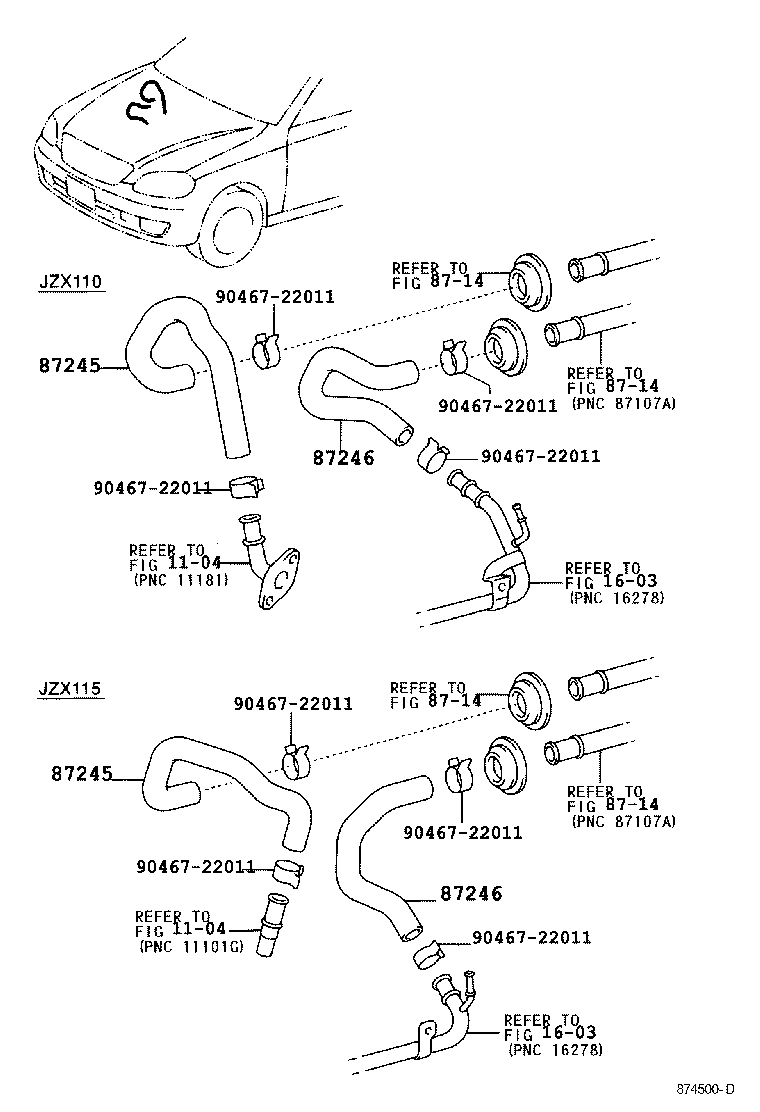

Figure 874500D

874500D 2000-10 → —

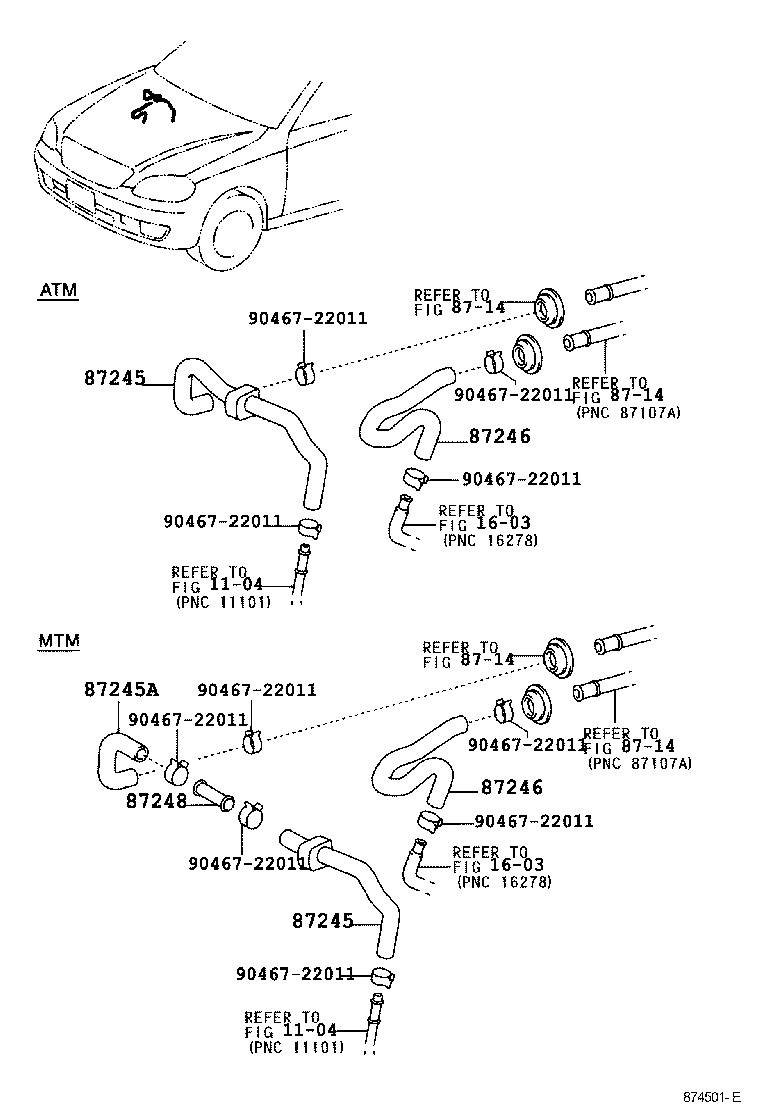

Figure 874501E

874501E 2000-10 → —

Part groups

PNC	Description
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87246	Hose, Heater Water, Outlet
87248	Pipe Sub-assy, Water

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
