Toyota Mark X
2004-11 → 2009-09 · chassis GRX12# · catalogue 3111A0 · Japan
Supported model
Data version 2010-01

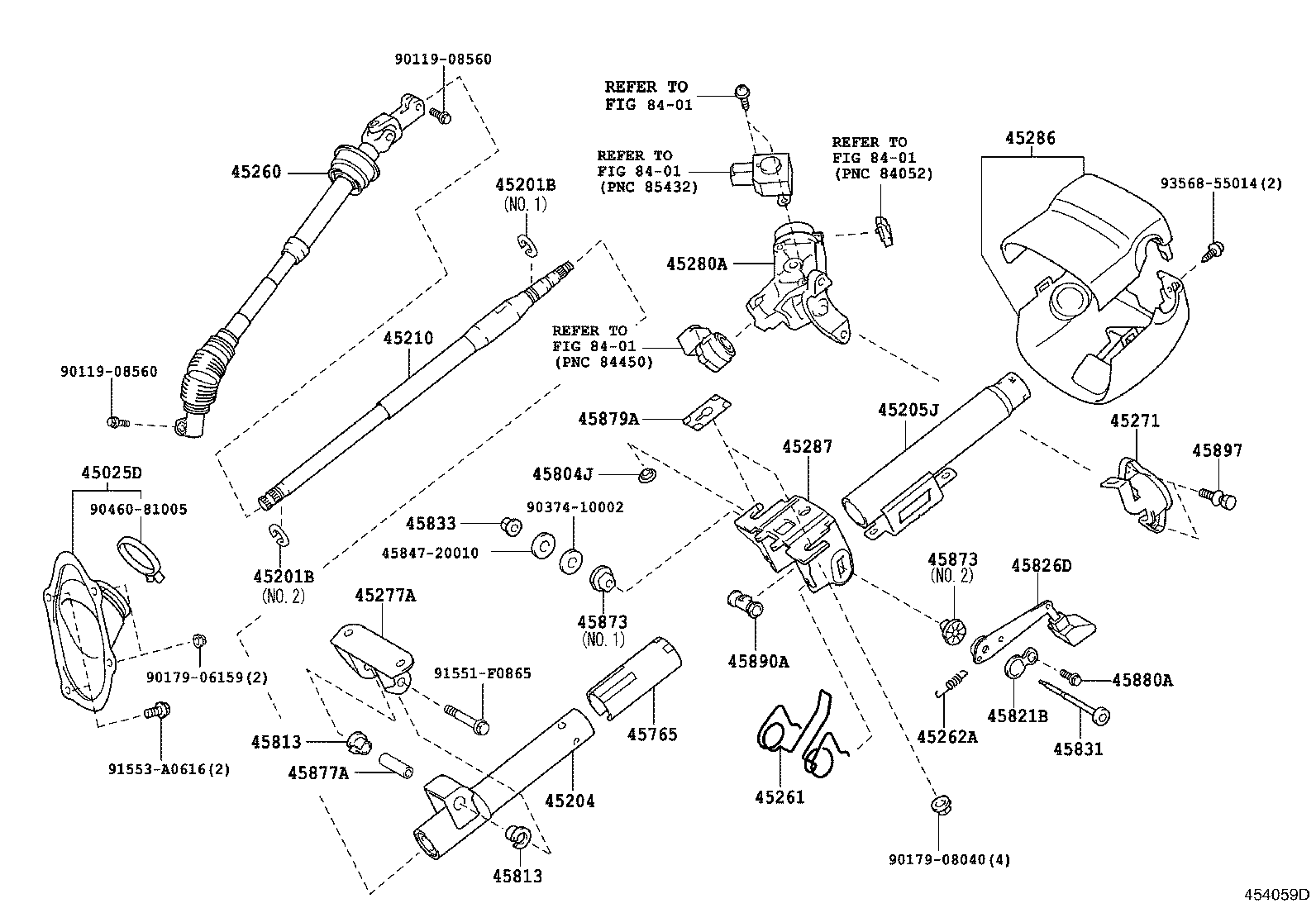

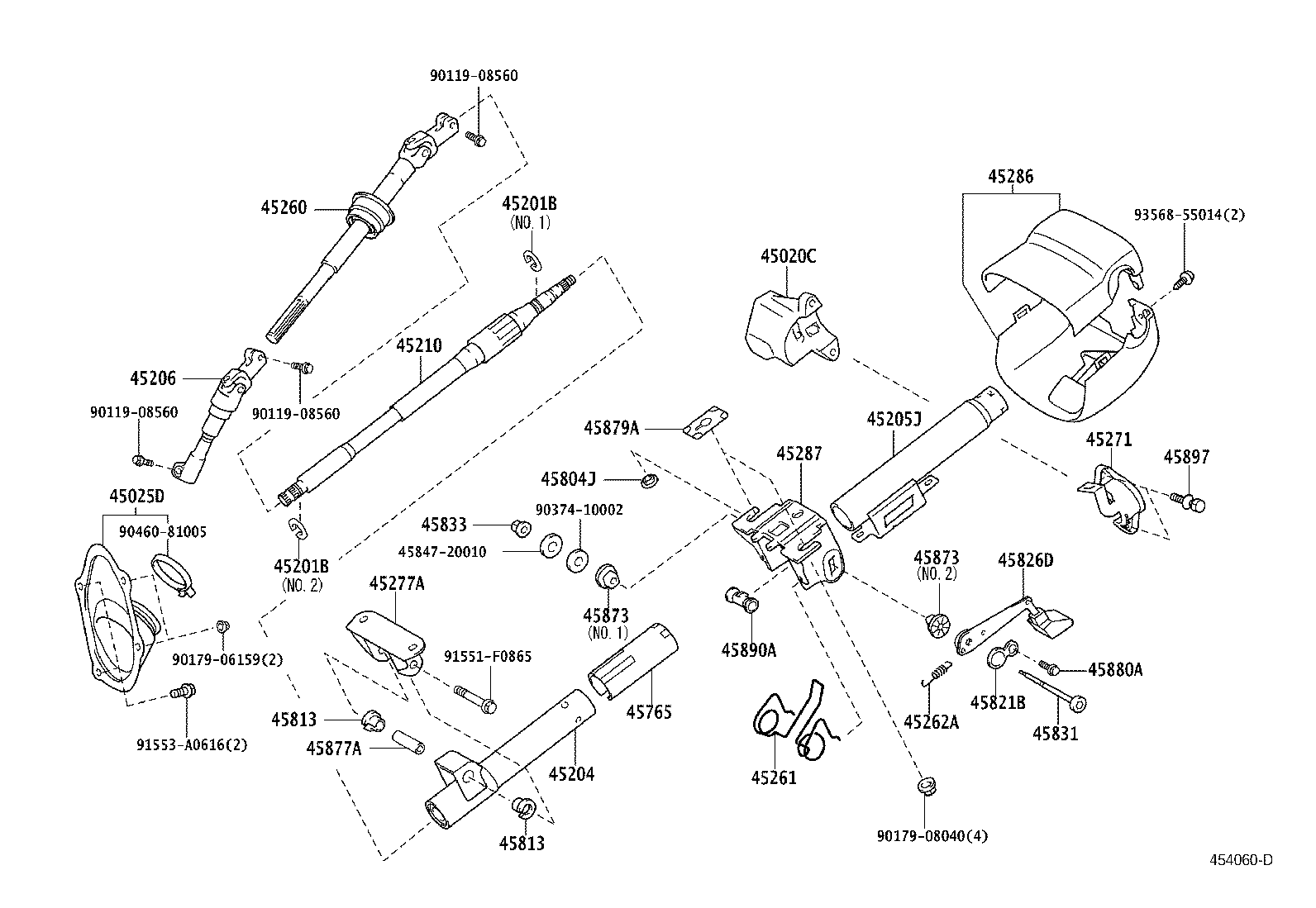

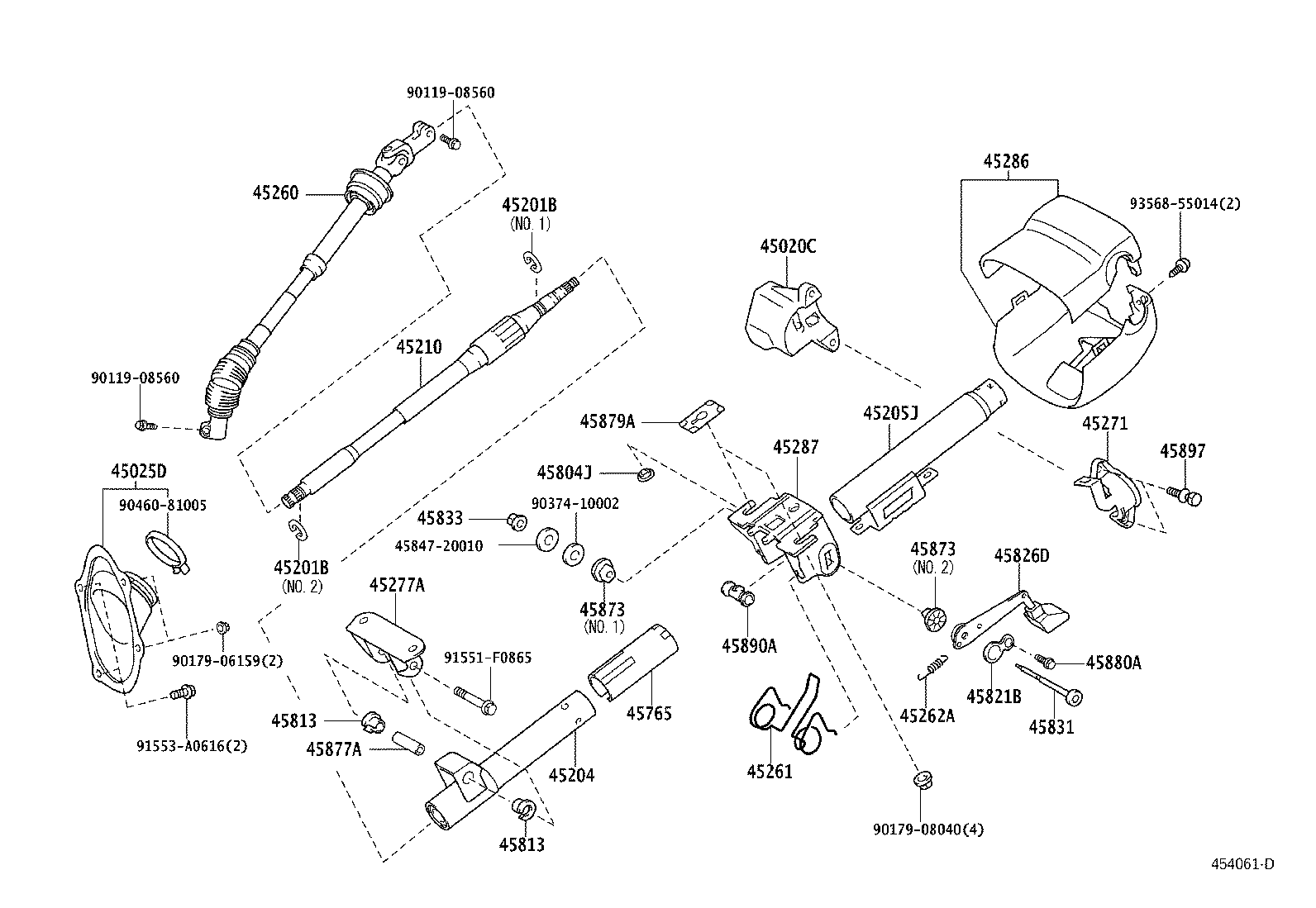

Steering Column & Shaft
28 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 45020C | Actuator Assy, Steering Lock(W/ECU) |
| 45025D | Cover Sub-assy, Steering Column Hole, NO.1 |
| 45201B | Ring, Shaft Snap(FOR STEERING MAIN SHAFT) |
| 45204 | Tube Assy, Steering Column, Lower |
| 45205J | Tube Sub-assy, Steering Column, Upper |
| 45206 | Yoke Sub-assy, Steering Sliding W/Shaft |
| 45210 | Shaft Assy, Steering Main |
| 45260 | Shaft Assy, Steering Intermediate, NO.2 |
| 45261 | Spring, Tilt Steering Jump UP |
| 45262A | Spring, Tilt Lever Return |
| 45271 | Clamp, Steering Column, Upper |
| 45277A | Support, Tilt Steering |
| 45280A | Bracket Assy, Steering Column, Upper |
| 45286 | Cover, Steering Column |
| 45287 | Cover, Steering Column, Lwr |
| 45765 | Guide, Telescopic Steering |
| 45804J | Collar Sub-assy, Break Away |
| 45813 | Collar, Tilt Steering Support, NO.1 |
| 45821B | Reinforce, Tilt Steering Support, NO.1 |
| 45826D | Lever, Steering Telescopic |
| 45831 | Bolt, Tilt Lever Lock, NO.1 |
| 45833 | Nut, Tilt Steering Adjusting, NO.1 |
| 45873 | Stopper, Steering Column Tube |
| 45877A | Spacer, Steering Column Bracket |
| 45879A | Capsule, Break Away |
| 45880A | Bolt(FOR STEERING TILT LEVER) |
| 45890A | Pawl Assy, Tilt Steering |
| 45897 | Bolt, Steering Lock Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
