Toyota Mark X
2004-11 → 2009-09 · chassis GRX12# · catalogue 3111A0 · Japan
Supported model
Data version 2010-01

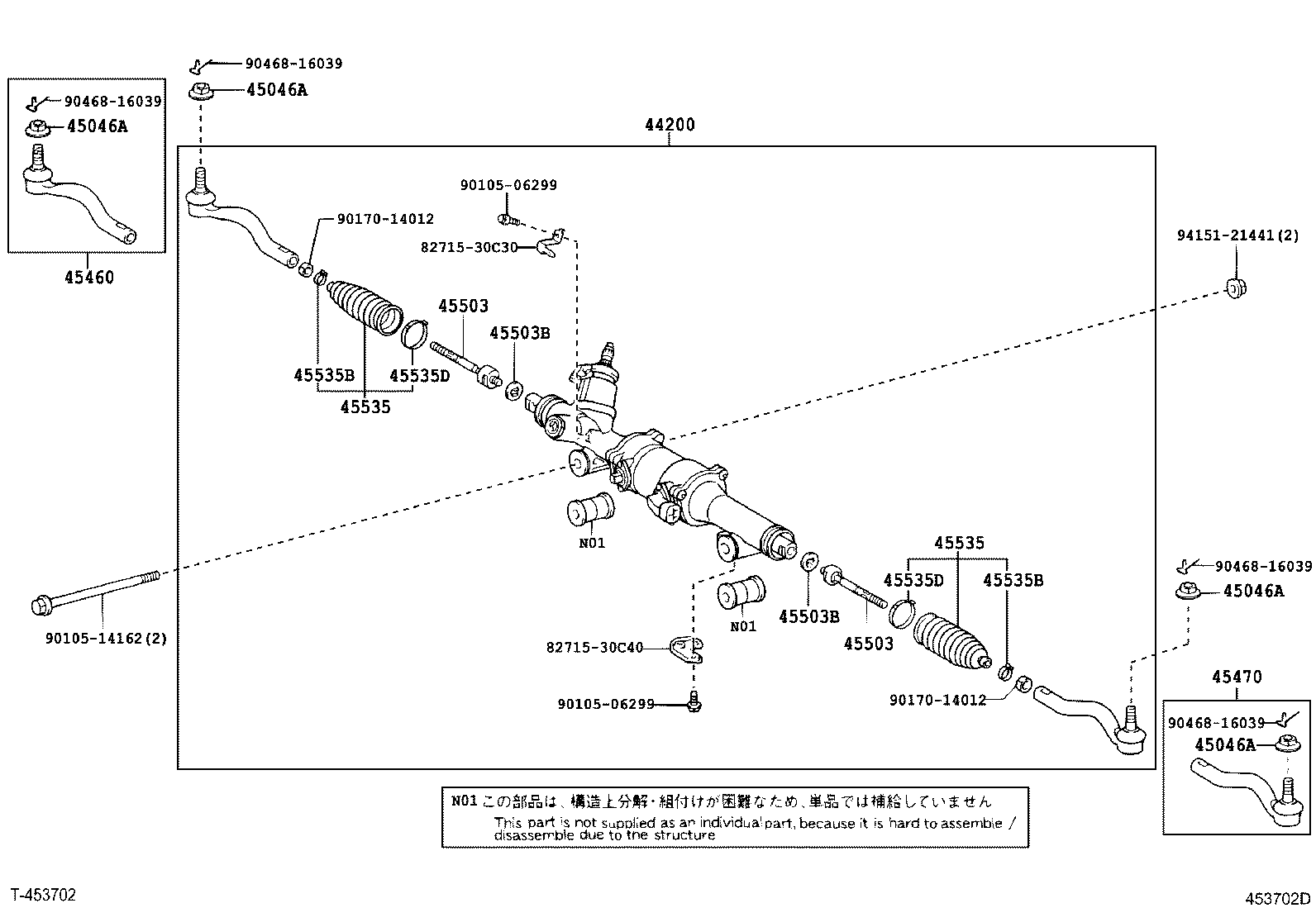

Front Steering Gear & Link
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44200 | Link Assy, Power Steering |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45460 | Rod Assy, Tie, RH |
| 45470 | Rod Assy, Tie, LH |
| 45503 | End Sub-assy, Steering Rack |
| 45503B | Washer, Claw(FOR STEERING RACK END) |
| 45535 | Boot, Steering Rack, NO.1 |
| 45535B | Clip(FOR STEERING RACK BOOT) |
| 45535D | Clamp(FOR STEERING RACK BOOT NO.1) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
