Toyota Mark X

2004-11 → 2009-09 · chassis GRX12# · catalogue 3111A0 · Japan

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

36 part groups · 7 illustrations

Illustrations

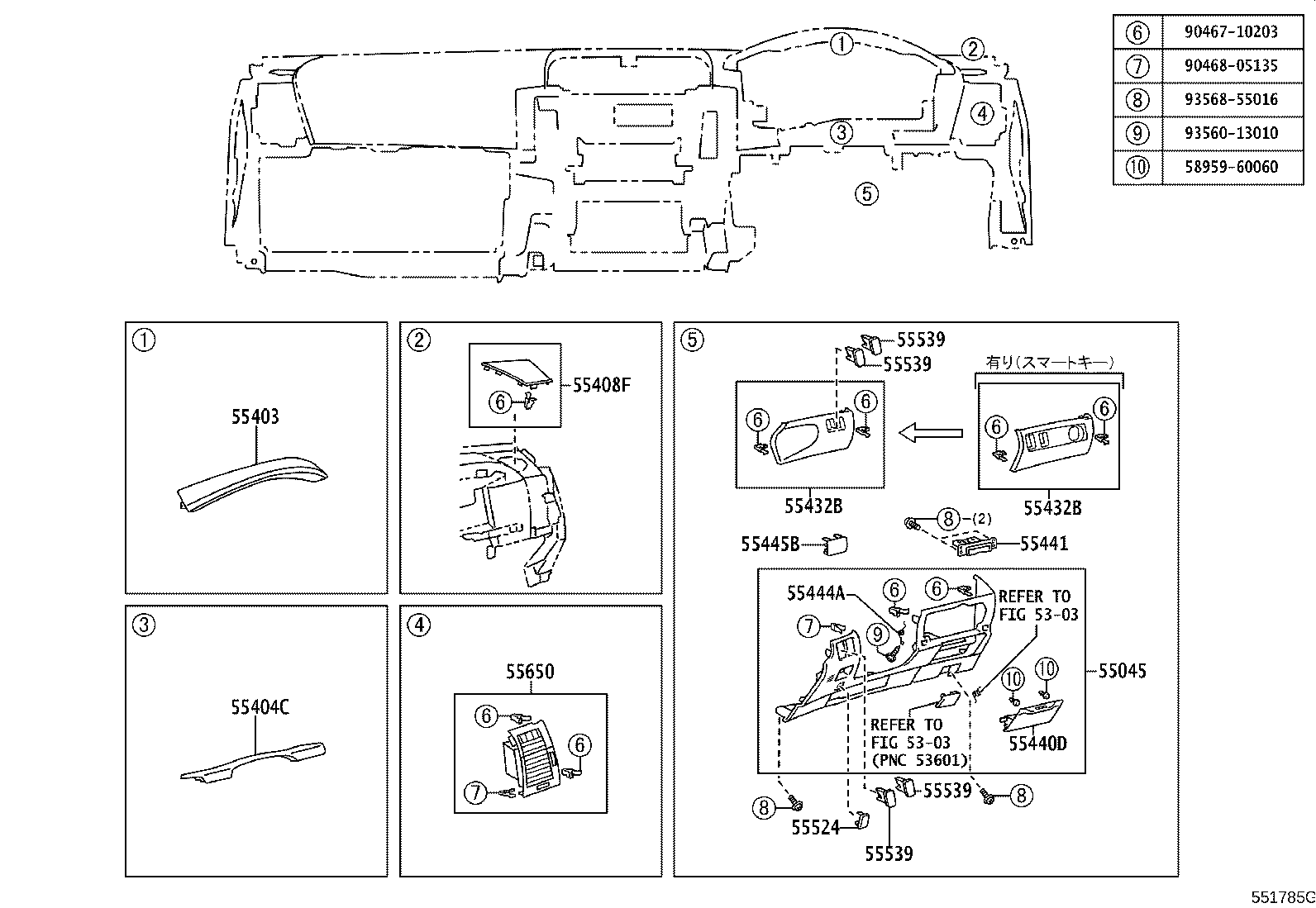

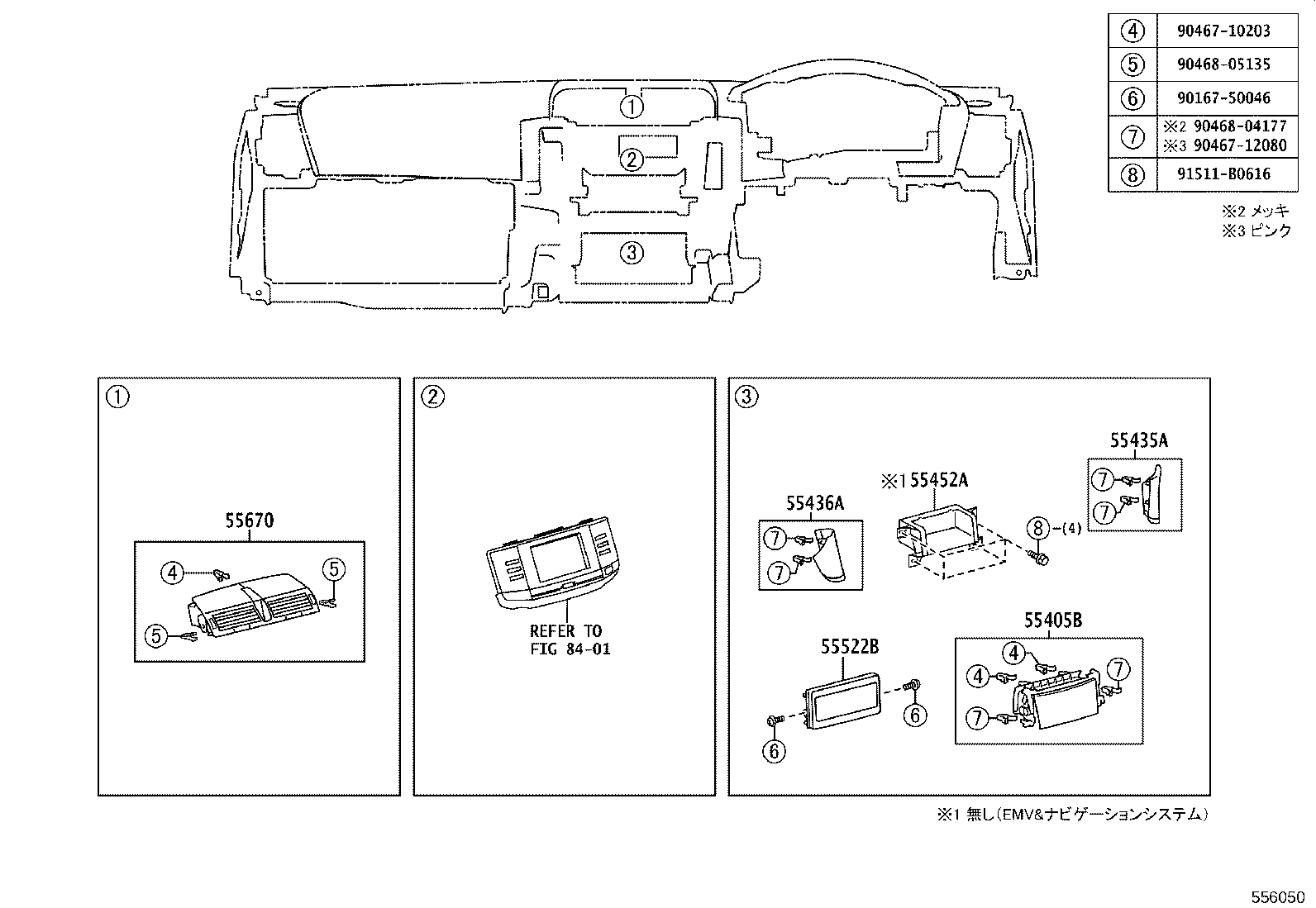

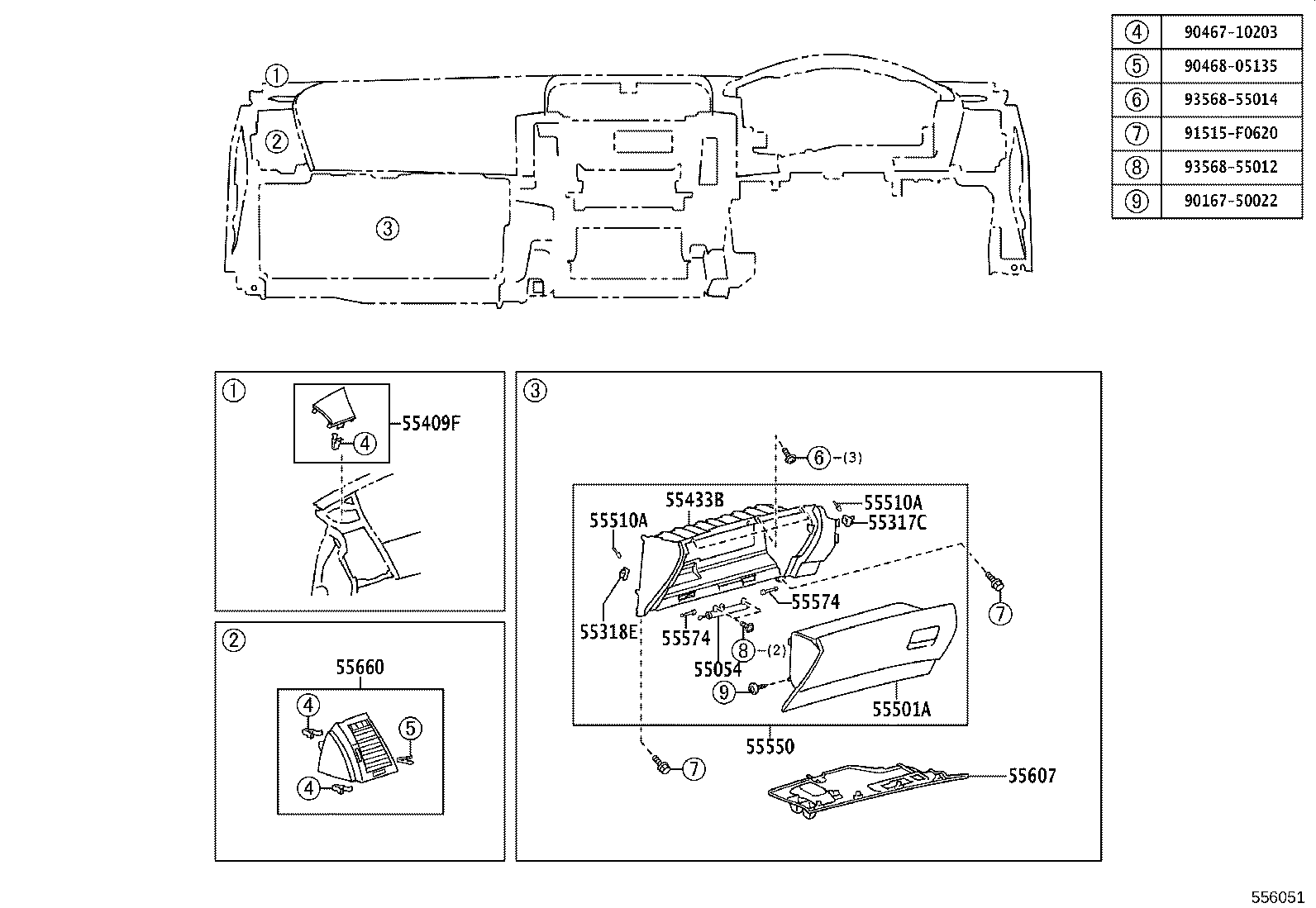

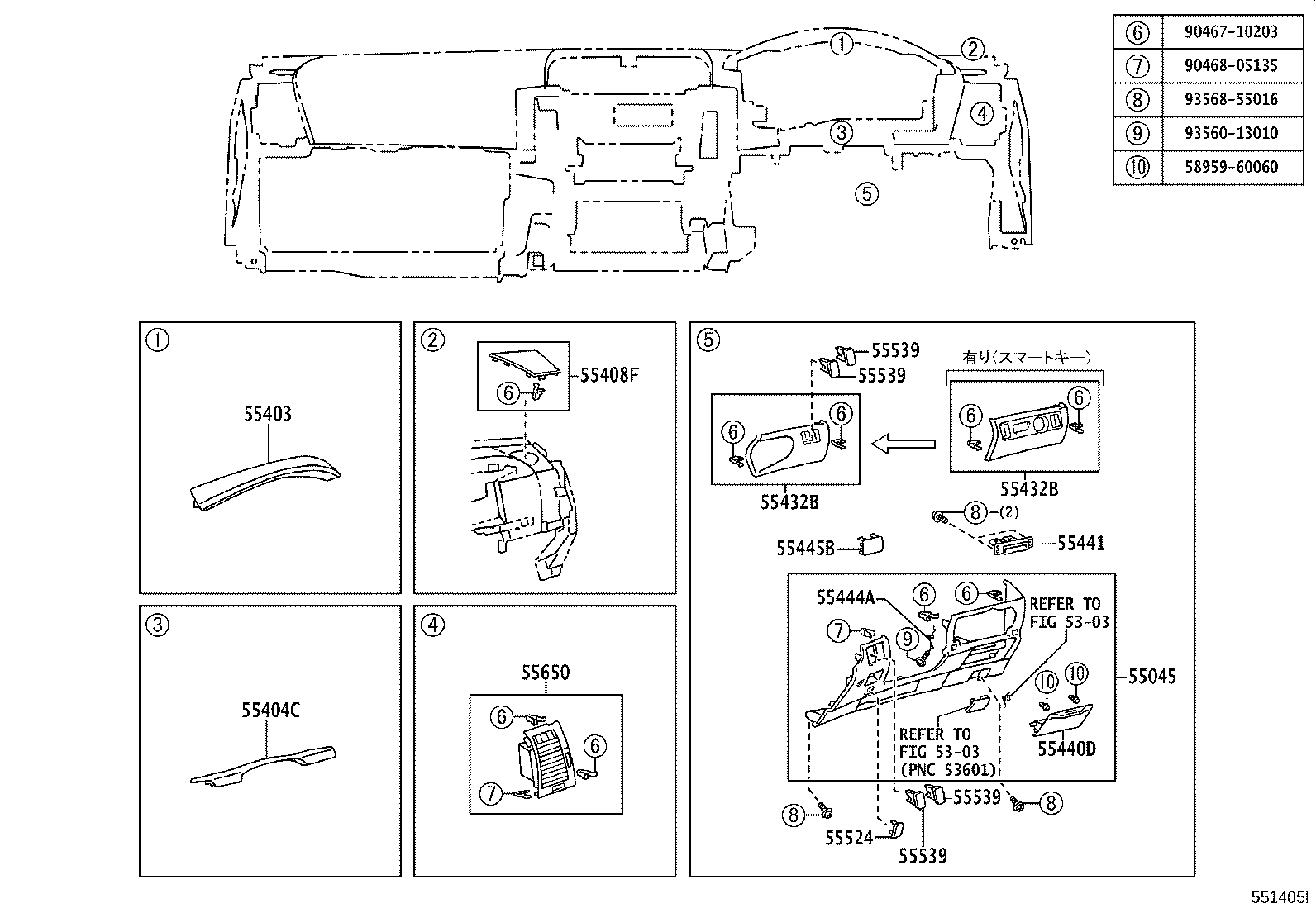

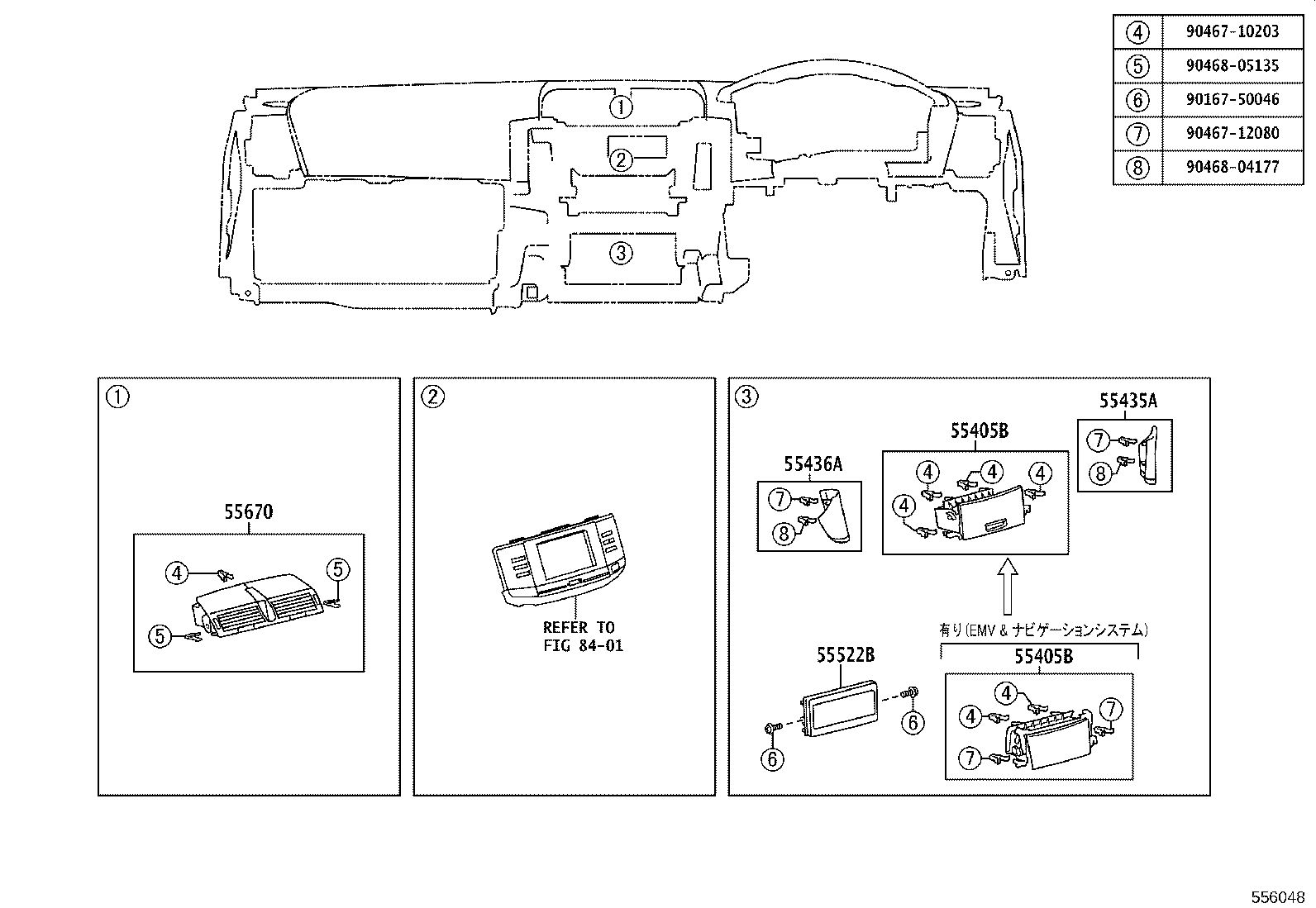

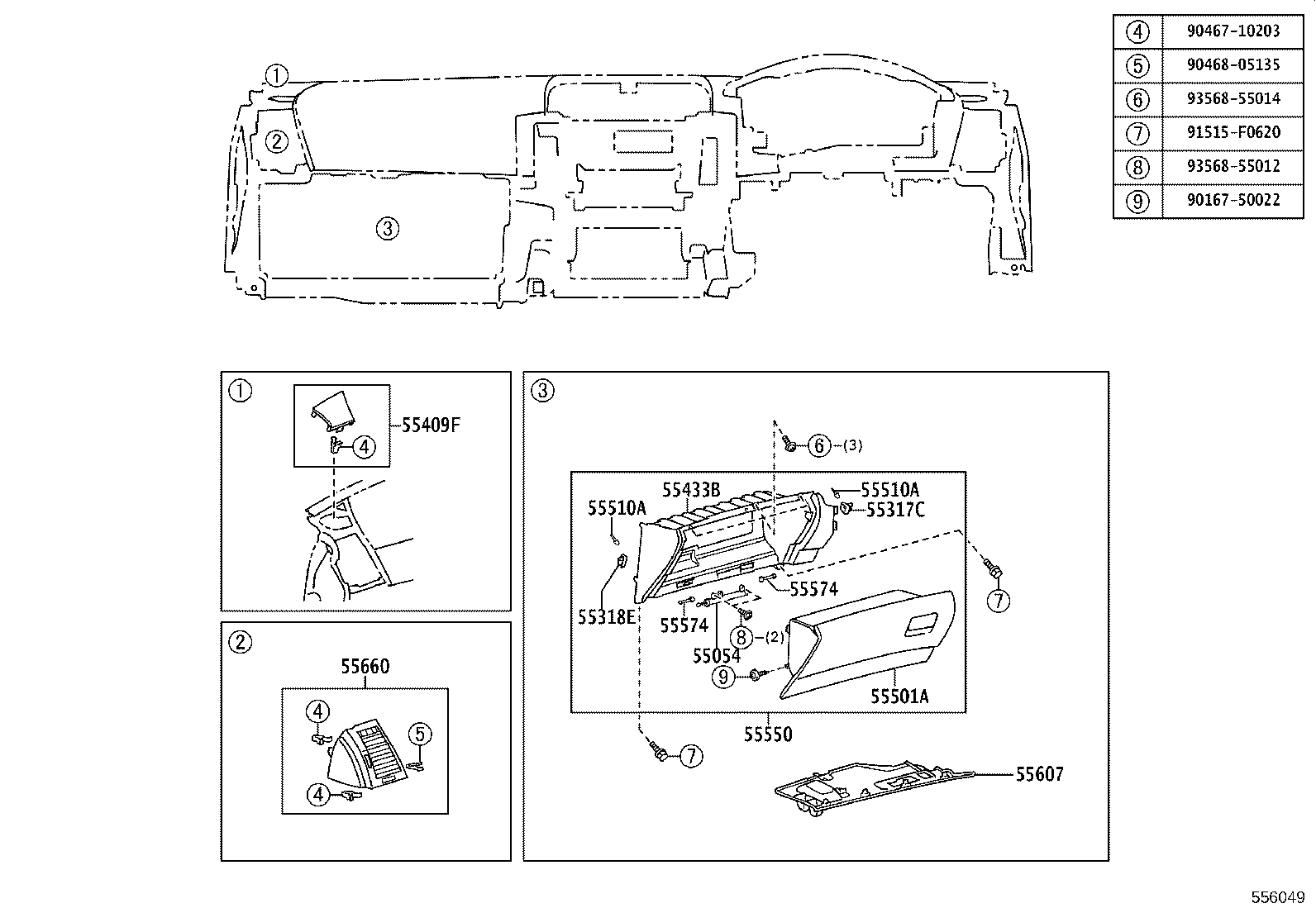

Figure 551404E 551404E 2004-11 → — Figure 551405I 551405I 2004-11 → 2006-10 Figure 556048 556048 2004-11 → 2006-10 Figure 556049 556049 2004-11 → 2006-10 Figure 551785G 551785G 2006-10 → — Figure 556050 556050 2006-10 → — Figure 556051 556051 2006-10 → —

Part groups

PNCDescription
55045 Panel Sub-assy, Instrument Panel Finish, Lower
55054 Stopper Sub-assy, Glove Compartment Door
55317C Patch, Instrument Side, Lower RH
55318E Patch, Instrument Side, Lower LH
55328 Pin, Instrument Panel, NO.1
55330B Reinforcement Assy, Instrument Panel
55374C Bracket, Instrument Panel Lower Mounting, NO.1
55375B Bracket, Instrument Panel Lower Mounting, NO.2
55401E Pad Sub-assy, Instrument Panel Safety
55403 Hood Sub-assy, Meter
55404C Panel Sub-assy, Instrument Cluster Finish, NO.2
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55432B Panel, Instrument Panel Finish, Lower
55433B Panel, Instrument Panel Finish, Lower NO.2
55435A Panel, Instrument Panel Finish, End RH
55436A Panel, Instrument Panel Finish, End LH
55440D Box Assy, Instrument Panel
55441 Box, Instrument Panel
55444A Spring, Instrument Panel Box
55445B Plate, Instrument Panel Finish
55452A Box, Instrument Panel, NO.2
55501A Door Sub-assy, Glove Compartment
55510A Cushion(FOR GLOVE COMPARTMENT DOOR)
55522B Cover, Radio Tuner Opening
55524 Cover, Switch Bace Hole
55539 Cover, Spare Switch Hole
55550 Door Assy, Glove Compartment
55574 Shaft, Glove Compartment Door Hinge
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
