Toyota Mark X

2004-11 → 2009-09 · chassis GRX12# · catalogue 3111A0 · Japan

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

33 part groups · 3 illustrations

Illustrations

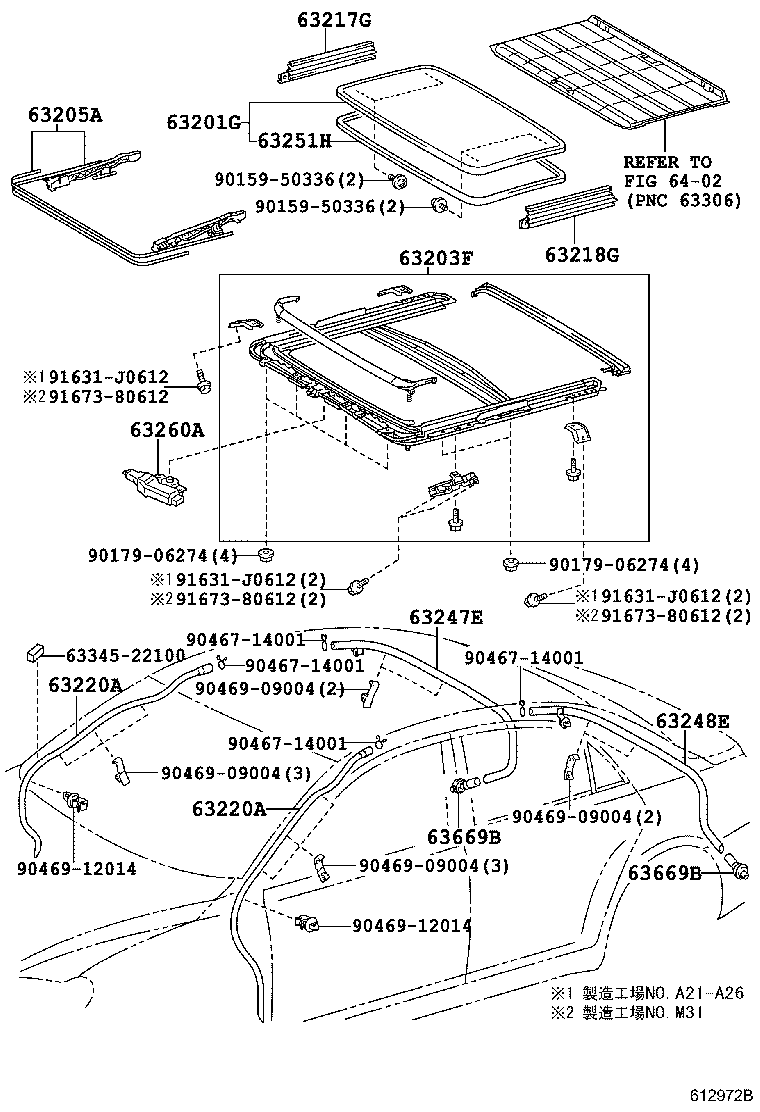

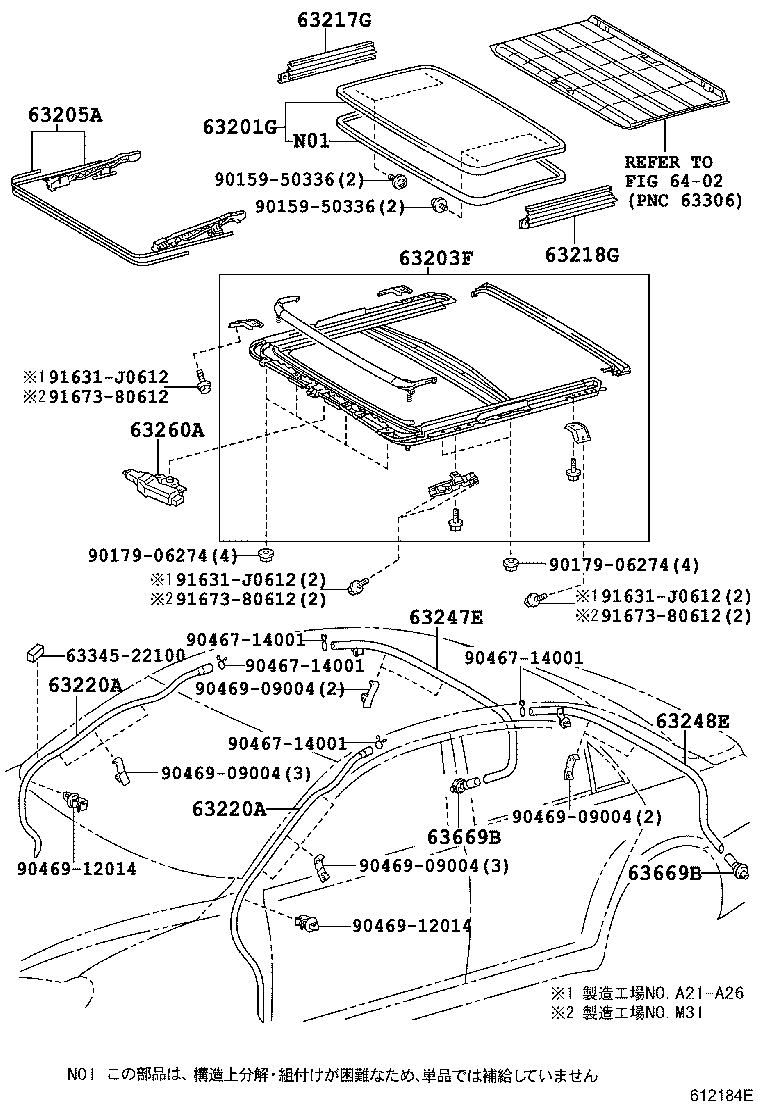

Figure 612183H 612183H 2004-11 → — Figure 612184F 612184F 2004-11 → 2006-10 Figure 612972B 612972B 2006-10 → —

Part groups

PNCDescription
61826B Plate, Noise Control, NO.3
63102A Panel Sub-assy, Windshield Header
63103A Reinforcement Sub-assy, Roof Panel
63111 Panel, Roof
63118 Support, Roof Panel, RH
63119 Support, Roof Panel, LH
63119D Pad, Roof Panel, NO.1
63126A Damper, Windshield Header Panel
63128 Reinforcement, Roof Panel, NO.6
63132C Panel, Windshield Header, Inner
63133A Frame, Back Window, Upper
63142 Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63146A Bracket, Roof Panel Reinforcement, NO.1
63148A Reinforcement, Roof Panel, NO.7
63201G Glass Sub-assy, Sliding Roof
63203F Housing Sub-assy, Sliding Roof
63205A Cable Sub-assy, Sliding Roof Drive
63217G Garnish, Sliding Roof Side, RH
63218G Garnish, Sliding Roof Side, LH
63220A Hose Assy, Sliding Roof Drain, RH
63247E Hose, Sliding Roof Drain, Rear RH
63248E Hose, Sliding Roof Drain, Rear LH
63251H Weatherstrip, Sliding Roof
63260A Gear Sub-assy, Sliding Roof Drive
63669B Grommet, Sliding Roof Drain
64101 Panel Sub-assy, Upper Back
64811 Glass, Back Window
64813D Dam, Back Window Glass Adhesive
64814C Dam, Back Window Glass Adhesive, Lower
75573F Moulding, Back Window, Outside
75575E Moulding, Back Window, Outside Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
