Toyota Mark X
2004-11 → 2009-09 · chassis GRX12# · catalogue 3111A0 · Japan
Supported model
Data version 2010-01

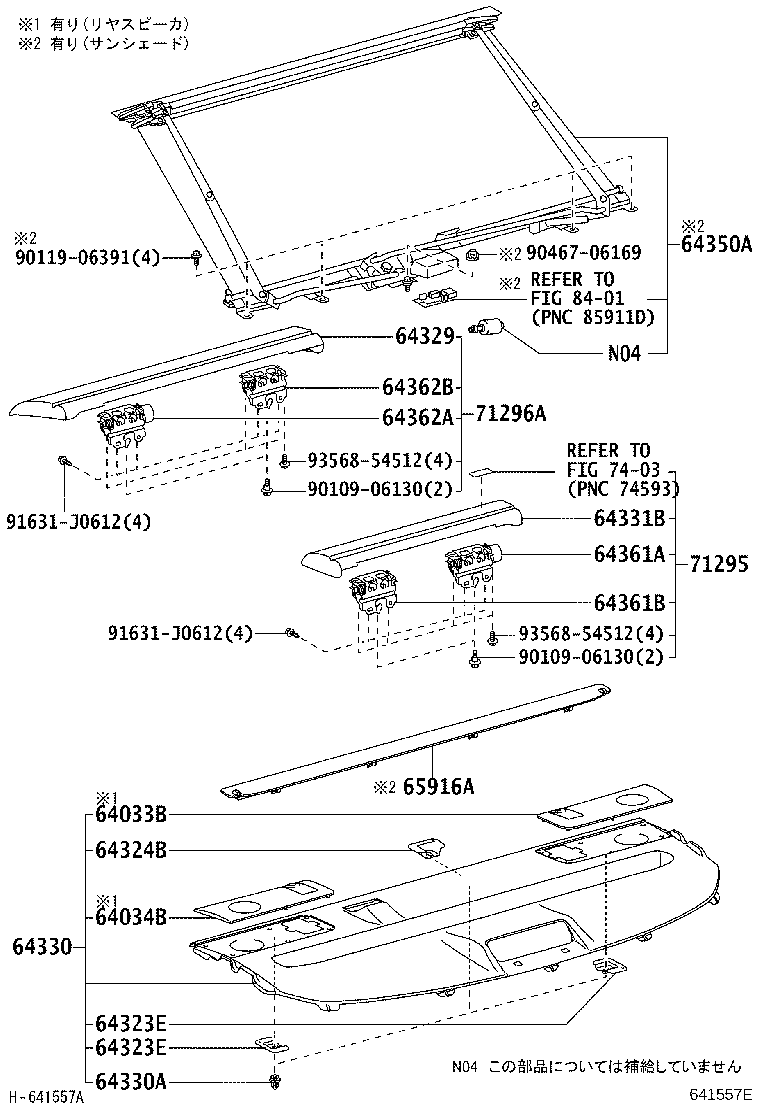

Package Tray Panel & Luggage Compartment Mat
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58387E | Clip(FOR REAR FLOOR FINISH PLATE) |
| 64033B | Grille Sub-assy, Rear Speaker, RH |
| 64034B | Grille Sub-assy, Rear Speaker, LH |
| 64323E | Clamp, Package Tray Trim |
| 64324B | Clamp, Package Tray Trim |
| 64329 | Board, Package Tray Trim, Rear |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64331B | Board, Package Tray Trim, Front |
| 64350A | Shade Assy, Rear Window |
| 64361A | Hinge, Package Tray Trim, NO.1 |
| 64361B | Hinge, Package Tray Trim, RH |
| 64362A | Hinge, Package Tray Trim, NO.2 |
| 64362B | Hinge, Package Tray Trim, LH |
| 64711 | Mat, Luggage Compartment Floor |
| 64714D | Cover, Luggage Compartment Trim, Side, RH |
| 64715D | Cover, Luggage Compartment Trim, Side, LH |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64718B | Cover, Luggage Trim Service Hole |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64721B | Cover, Luggage Compartment Trim, NO.1 |
| 65916A | Plate, Curtain Rail Bracket |
| 71295 | Plate, Rear Seatback, Upper RH |
| 71296A | Plate, Rear Seatback, Upper LH |
| 75201A | Box, Tool |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
