Toyota Mark X
2004-11 → 2009-09 · chassis GRX12# · catalogue 3111A0 · Japan
Supported model
Data version 2010-01
Fuel Tank & Tube

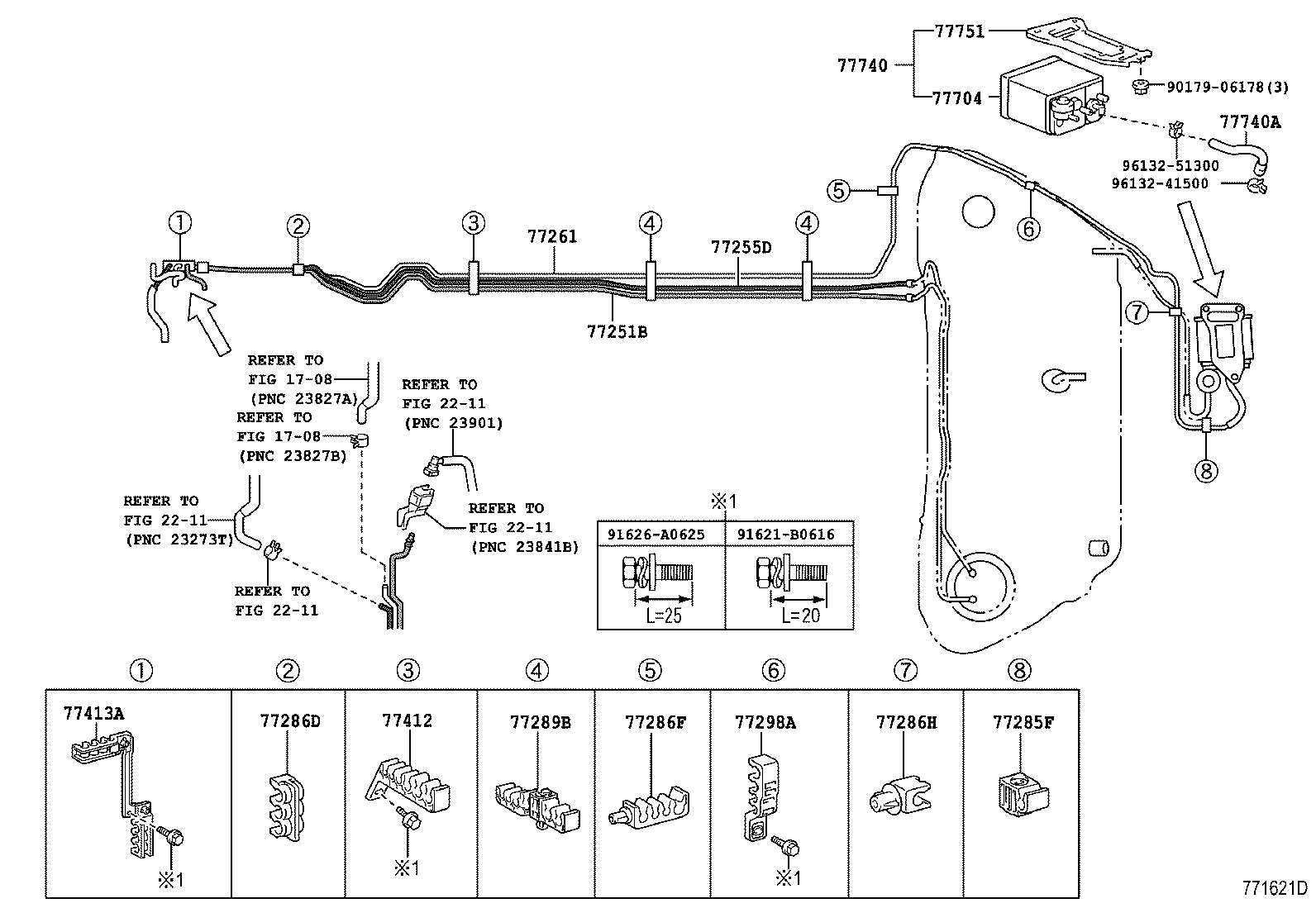

60 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 23020 | Regulator Assy, Fuel Pressure W/Jet Pump |
| 23217D | Filter, Fuel Pump |
| 23221 | Pump, Fuel |
| 23222A | Tube, Fuel Return Jet |
| 23225A | Spacer, Fuel Pump |
| 23229A | Clip(FOR FUEL PUMP FILTER) |
| 23239C | Seal, Fuel Pump Filter |
| 23280J | Regulator Assy, Fuel Pressure |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23300J | Filter Assy, Fuel |
| 77012 | Tube Sub-assy, Fuel Tank Breather |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77035A | Clamp (FOR FUEL LID LOCK CONTROL CABLE) |
| 77100 | Tank Assy, Fuel |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77196 | Clamp, Evaporation Vent Tube, NO.1 |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77209D | Tube Sub-assy, Fuel Tank Main |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77214 | Pipe, Fuel Tank Filler |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77217A | Support, Fuel Tank Filler Pipe, NO.2 |
| 77241V | Clip, Tube Joint |
| 77245D | Tube, Fuel Tank Return Vent |
| 77251B | Tube, Fuel Main |
| 77255D | Tube, Fuel Return |
| 77261 | Tube Sub-assy, Fuel Emission |
| 77269A | Hose, Fuel Tank Breather |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77281A | Clamp, Fuel Filler Pipe |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77289 | Holder, Fuel Tank Pipe Setting |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77331 | Bracket, Fuel Lid Lock Control |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77412 | Support, Fuel Tube Grommet, NO.2 |
| 77413A | Support, Fuel Tube Grommet, NO.3 |
| 77444 | Hose, Fuel Tank Vent |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77606C | Protector, Fuel Tank, NO.2 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77681 | Seat, Fuel Tank Band, RH |
| 77704 | Canister Sub-assy, Charcoal |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77751 | Bracket, Charcoal Canister Base |
| 77785 | Harness, Fuel Pump |
